Sandvik Coromant
6873037
Sandvik Coromant 6873037
Specifications
| Diameter (Metric) | 50 |
|---|---|
| Shank Diameter (Metric) | 50 |
| Overall Length (Metric) | 66 |
| Material | Steel |
| Series | CoroBore 826 |
| Diameter (Inch) | 1.97 |
| Unit Of Measure | Metric |

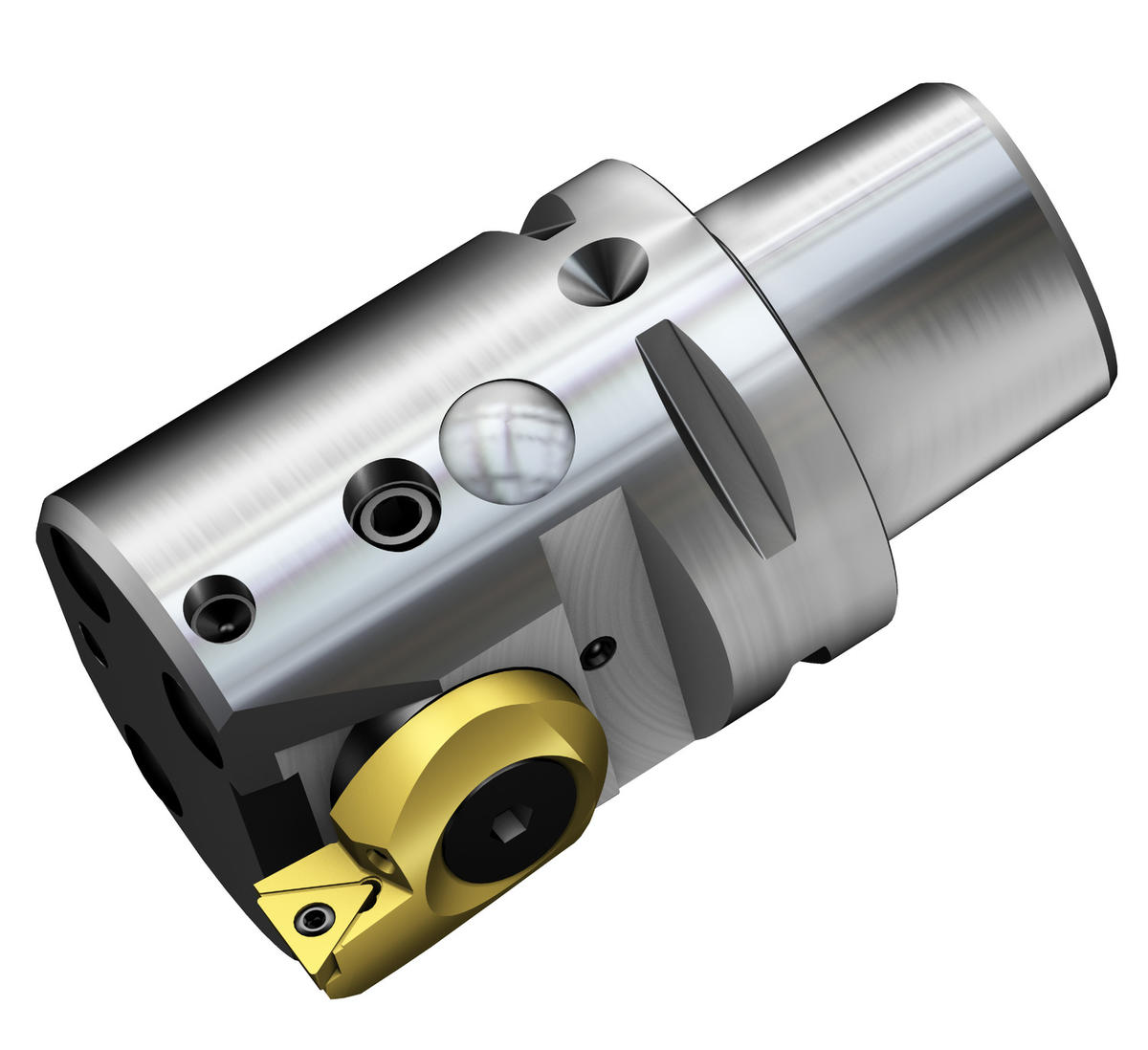

| Short Description | CoroBore® 826 fine boring tool |
| Coolant Through | Yes |
| ANSI Code | 826-68TC11-C5HP |
| Tool Cutting Edge Angle | 92 degrees |
| Country of Origin | Netherlands |
| Connection Size | C5 |
| Body Length (Decimal) | 2.60 |
| Body Length (Metric) | 66 |
| Number Of Inserts | 1 |
| Clamping Type Code | Screw/Clamp |
| Standard Number | ISO26623-1 |
| Torque (ft lbf) | 0.664 |
| Torque (NM) | 0.9 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Base Item Number | 2076 |
| Body Length (Inch) | 2.6 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 0.03 |
| Max. Adjustment Limit (Metric) | 0.65 |
| Max. Cutting Diameter | 68.65 mm |
| Min. Cutting Diameter | 67.35 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.359 LB |
| Height Packed Product Metric | 110 mm |
| Height Packed Product Imperial | 4.331 inch |
| ISO Code (packed) | 826-68TC11-C5HP |
| Length Packed Product Metric | 215 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 826-68TC11-C5HP |
| Length Packed Product Imperial | 8.465 inch |
| EAN Code | 7323220290642 |
