Sandvik Coromant
6879607
Sandvik Coromant 6879607
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Base Item Number | 1071 |
| Cutting Width (Inch) | 0.1 |
| Max. Cutting Depth | 5 mm |
| Max. Cutting Depth (Decimal) | 0.2 |
| Max. Overhang (Decimal) | 0.41 |
| Max. Overhang (Metric) | 10.3 |
| Min. Axial Groove Inside Diameter (Decimal) | 0.35 |
| Min. Axial Groove Inside Diameter (Metric) | 9 |
| Min. Overhang (Decimal) | 0.41 |
| Min. Overhang (Metric) | 10.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.009 LB |
| Unit Of Measure | Metric |

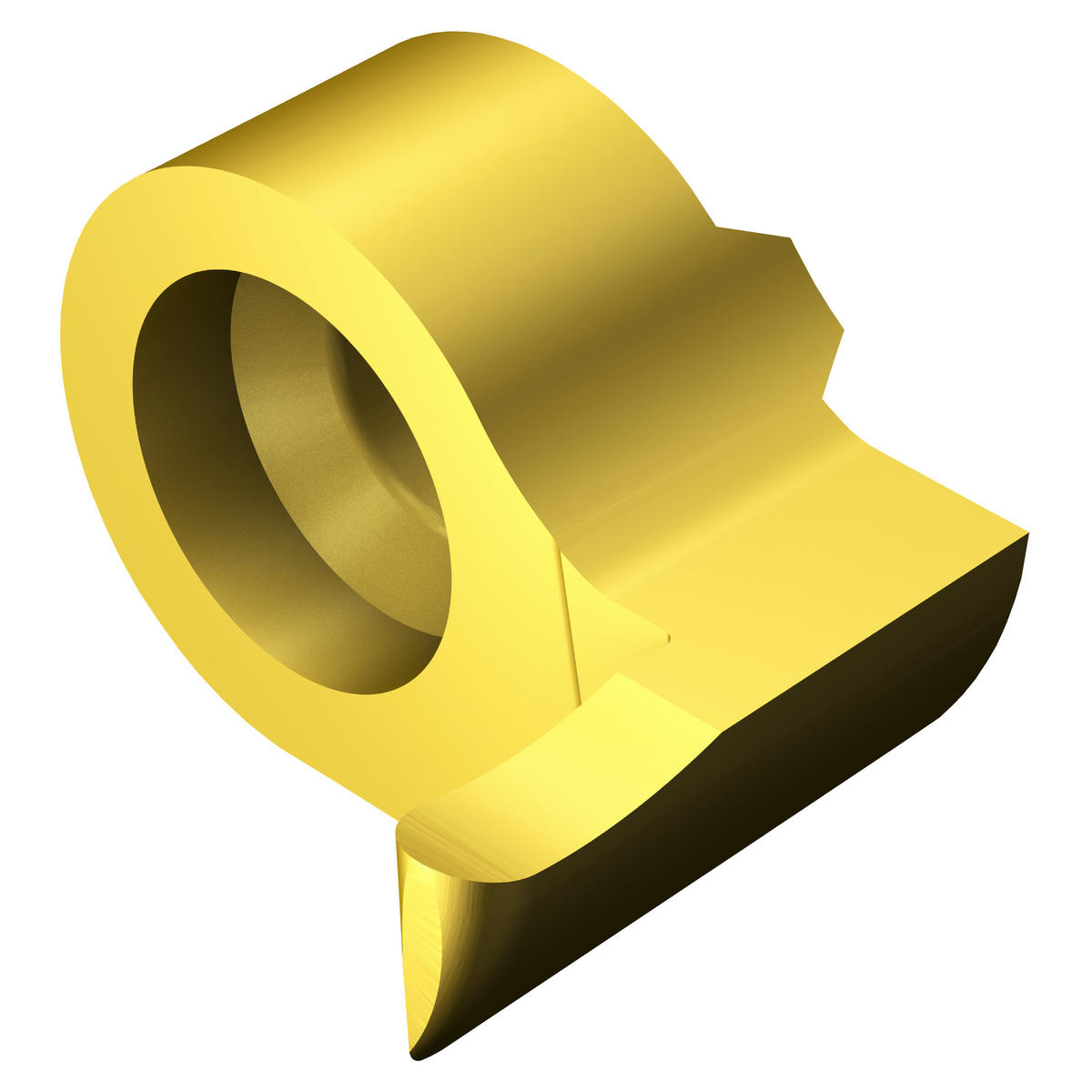

| Short Description | CoroCutĀ® MB solid carbide head for face grooving |
| Series | CoroCut MB |
| Grade | 1025 |
| Cutting Width | 2.5 mm |
| Cutting Width (Decimal) | 0.1 |
| ANSI Code | MB-09FAR250-125-14L 1025 |
| Coating Process Type | PVD |
| Substrate Type | Carbide |
| Corner Radius Left (Decimal) | 0.05 |
| Corner Radius Left (Metric) | 1.25 |
| Corner Radius Right (Decimal) | 0.05 |
| Corner Radius Right (Metric) | 1.25 |
| Corner Radius Upper Tolerance (Decimal) | 0.000591 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.001181 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| Country of Origin | Austria |
| Coolant Through | No |
| Direction Of Hand | Left |
| Connection Diameter (Decimal) | 0.35 |
| Connection Diameter (Metric) | 9 |
| Overall Length (Decimal) | 0.41 |
| Overall Length (Metric) | 10.3 |
| ISO Material Classification Level All | PMKNS |
| Overall Width (Decimal) | 0.35 |
| Overall Width (Metric) | 9 |
| Coolant Entry Style Code | 0: Without Coolant |
