Sandvik Coromant
6881921
Sandvik Coromant 6881921
Specifications
| Size | F |
|---|---|
| Chip Breaker Type | ML |
| Coating/Finish | TiCrN+Al2O3+TiN |
| Material | WC or Cermet |
| Base Item Number | 2070 |
| Cutting Width (Inch) | 0.09 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.002 LB |
| Unit Of Measure | Imperial |

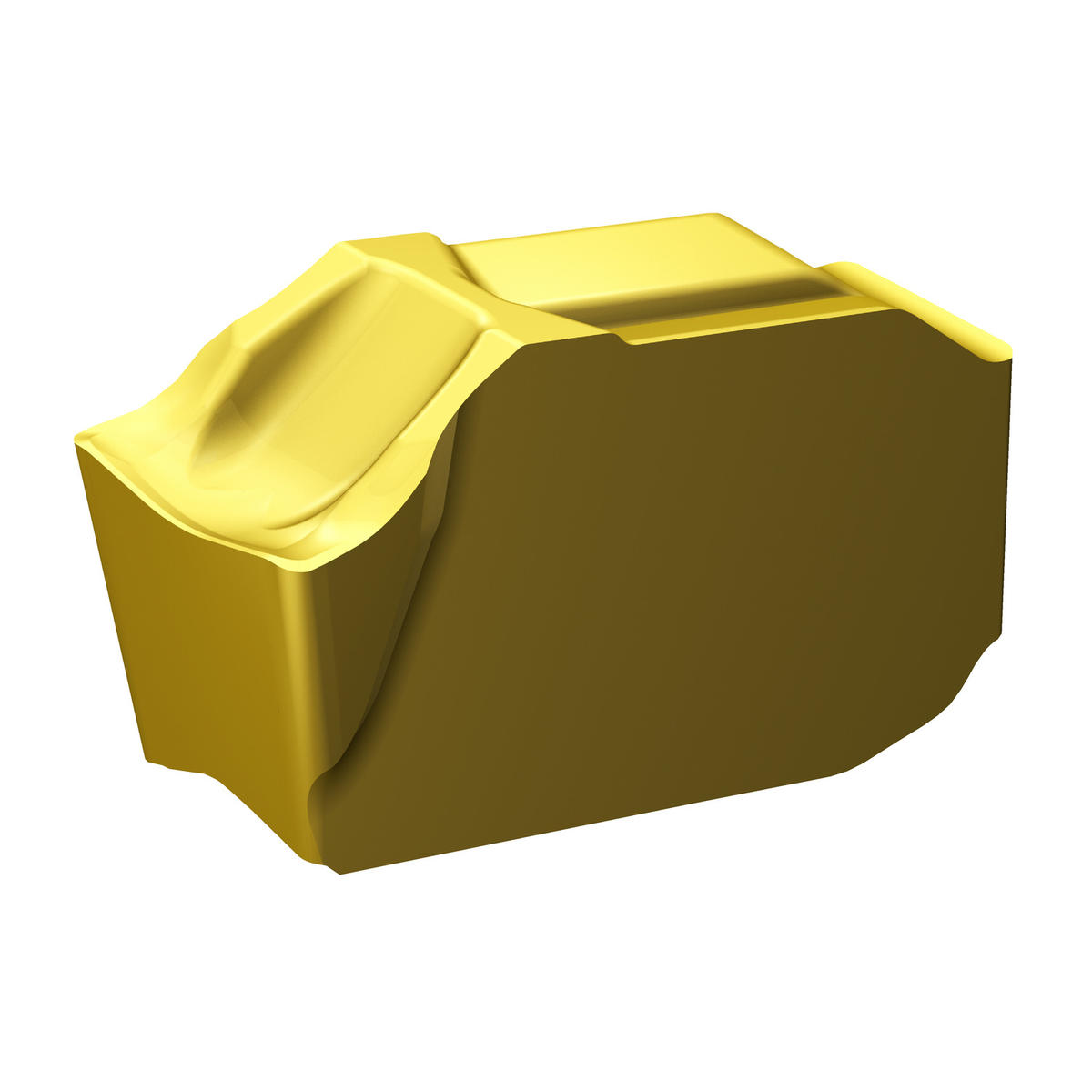

| Short Description | CoroMill® QD insert for grooving |
| Series | CoroMill QD |
| Style | QD-N |
| Grade | 2040 |
| Cutting Width | 0.09 Inch |
| Cutting Width (Decimal) | 0.09 |
| Cutting Width (Metric) | 2.39 |
| ANSI Code | QD-NF-0239-020E-ML 2040 |
| ISO Code | QD-NF-0239-020E-ML 2040 |
| Insert Seat Size Code | F |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.2 |
| Cutting Width Lower Tolerance (Decimal) | 0.000197 |
| Cutting Width Lower Tolerance (Metric) | 0.01 |
| Cutting Width Upper Tolerance (Decimal) | 0.002165 |
| Cutting Width Upper Tolerance (Metric) | 0.06 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Sweden |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | QD-N |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | QD-NF-0239-020E-ML2040 |
| Insert Size | F |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QD-NF-0239-020E-ML 2040 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323220337606 |
