Sandvik Coromant
6882111
Sandvik Coromant 6882111
Specifications
| Coolant Fed | Yes |
|---|---|
| Coating/Finish | Uncoated |
| Overall Length (Metric) | 152.4 |
| Diameter (Inch) | 0.25 |
| Material | Solid Carbide |
| Diameter (Metric) | 6.35 |
| Type | Heavy Duty |
| Overall Length (Inch) | 6 |

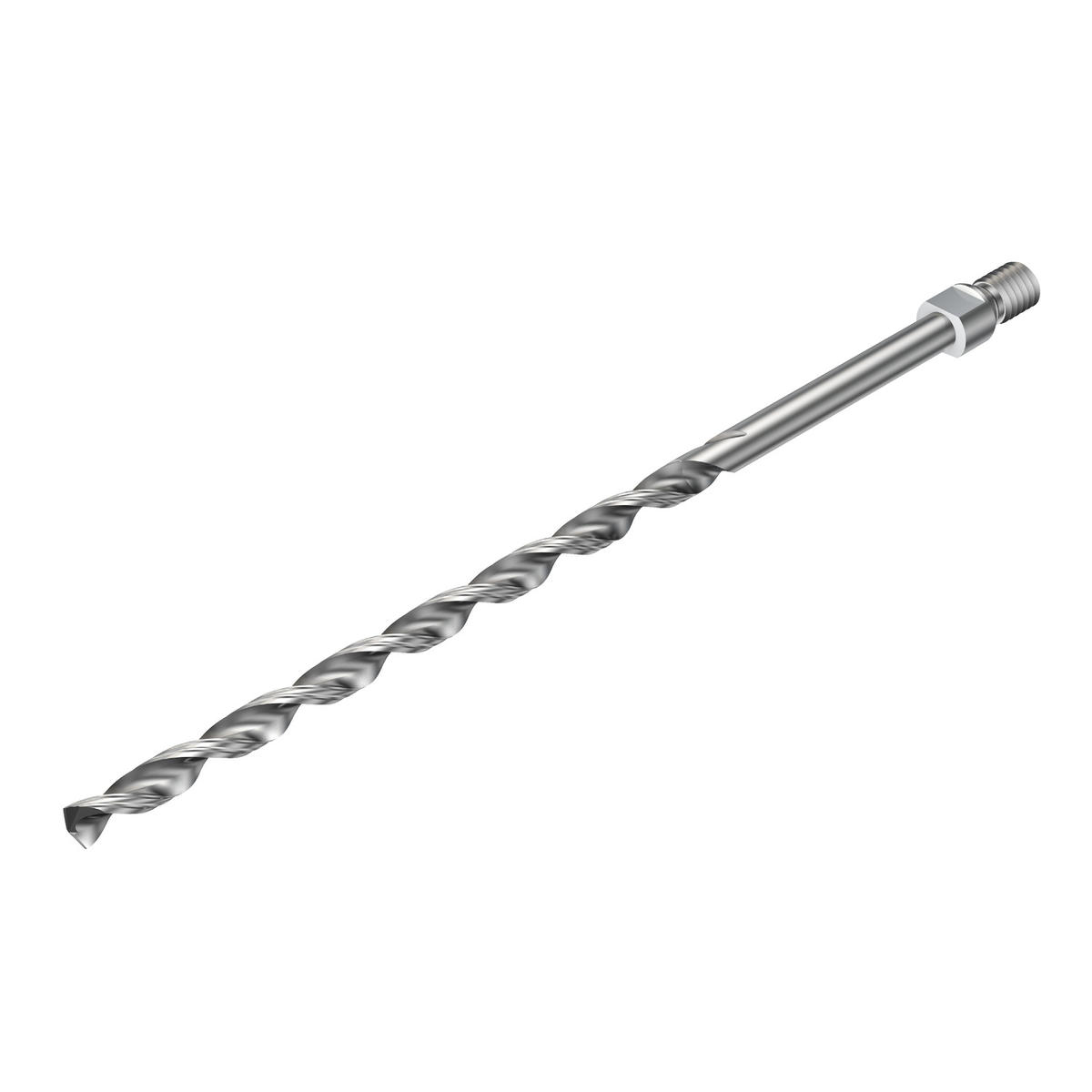

| Short Description | CoroDrill® 863 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 135 degrees |
| Usable Length (Decimal) | 1.54 |
| Usable Length (Metric) | 39 |
| Diameter | 6.35 mm |
| Flute Length | 101.6 mm |
| Overall Length | 152.4 mm |
| Shank Type | Threaded Coupling |
| Standard | COROMANT |
| Series | CoroDrill 863 |
| Country of Origin | United States |
| ANSI Code | 863.1-0635-039B1-MS H10F |
| Coating Process Type | UNCOAT |
| Depth x Diameter Ratio | 4 x D |
| Grade | H10F |
| Point Length (Decimal) | 0.09 |
| Point Length (Metric) | 2.23 |
| Achievable Hole Tolerance | H8 |
| Functional Length (Decimal) | 5.57 |
| Functional Length (Metric) | 141.38 |
| Chip Flute Length (Decimal) | 4 |
| Chip Flute Length (Metric) | 101.6 |
| Achievable Hole Tolerance Lower | 0.25 Inch/6.35 mm |
| Achievable Hole Tolerance Upper | 0.25 Inch/6.38 mm |
| Coolant Pressure (Bar) | 9 |
| ISO Material Classification | MO |
| Usable Length Diameter Ratio | 6.138 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Base Item Number | 2078 |
| Coolant Pressure (lbf/in2) | 130.534 |
| EAN Code | 7323220338917 |
| Max. Regrinds | 6 |
| Max. Rotational Speed | 1200 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.128 LB |
| Height Packed Product Metric | 19 mm |
| Height Packed Product Imperial | 0.748 inch |
| ISO Code (packed) | 863.1-0635-039B1-MSH10F |
| Length Packed Product Metric | 152 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 863.1-0635-039B1-MS H10F |
| Length Packed Product Imperial | 5.984 inch |
| Substrate Type | Carbide |
