Sandvik Coromant
6914207
Sandvik Coromant 6914207
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Overall Length (Inch) | 5 |
| Shank Width (Inch) | 0.75 |
| Shank Width (Metric) | 19.05 |
| Insert Style | QD-R/LF..S (INCH) |
| Base Item Number | 2061 |
| Max. Cutting Depth | 0.38 Inch |
| Max. Cutting Depth (Decimal) | 0.38 |
| Max. Cutting Depth (Metric) | 9.53 |
| Max. Overhang (Decimal) | 1 |
| Max. Overhang (Metric) | 25.4 |
| Max. Work Piece Parting Diameter (Decimal) | 0.75 |
| Max. Work Piece Parting Diameter (Metric) | 19.05 |
| Min. Overhang (Decimal) | 1 |
| Min. Overhang (Metric) | 25.4 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.703 LB |

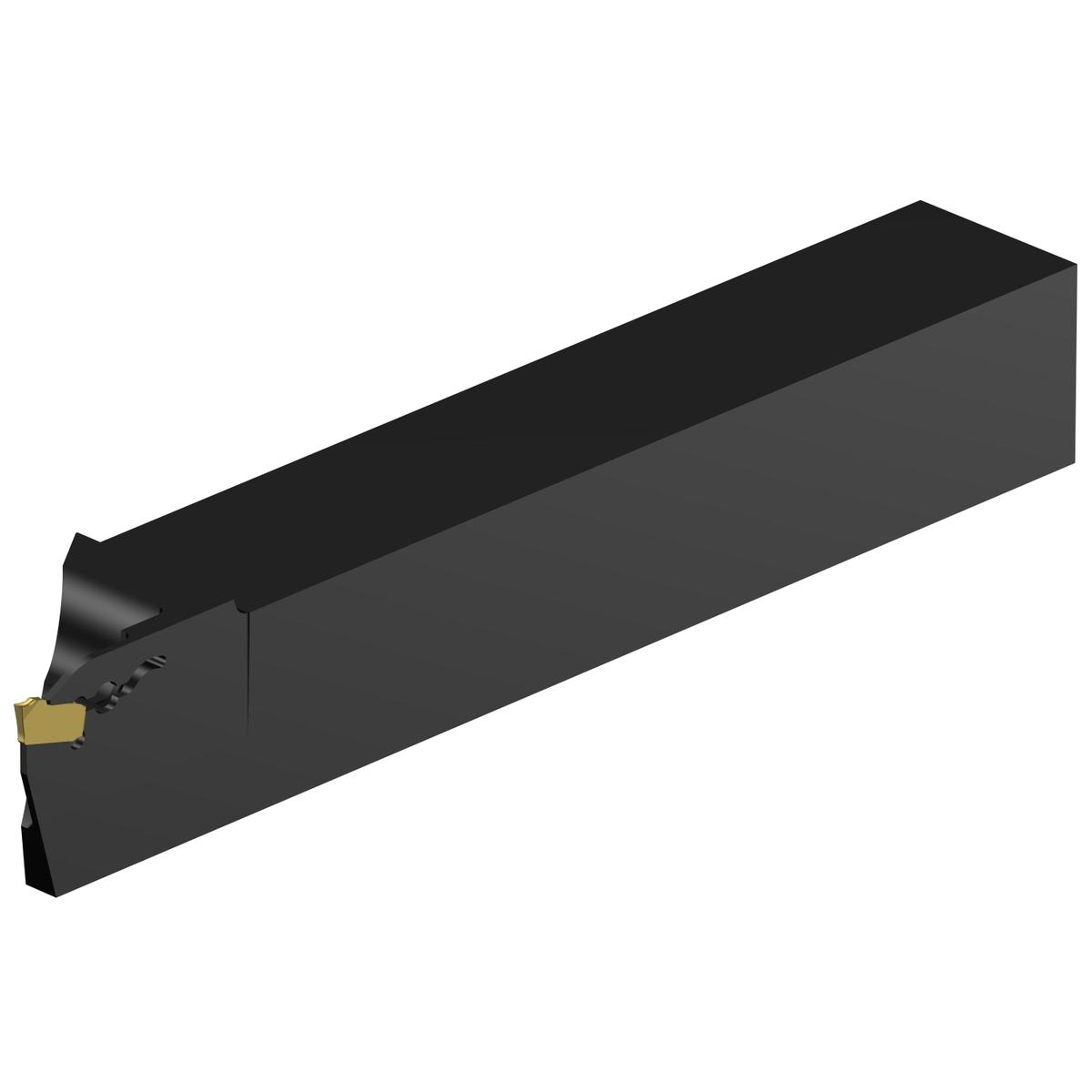

| Short Description | CoroCut® QD shank tool for parting and grooving |
| Series | CoroCut QD |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | QD-NB-0100-0001-CM |
| Shank Height | 0.75 Inch |
| Shank Width | 0.75 Inch |
| Shank Height (Decimal) | 0.75 |
| Shank Height (Metric) | 19.05 |
| ANSI Code | QD-RFB0375-12S |
| Coolant Through | No |
| Overall Width (Decimal) | 0.75 |
| Overall Width (Metric) | 19.15 |
| Overall Height (Decimal) | 0.75 |
| Overall Height (Metric) | 19.05 |
| Insert Seat Size Code | B |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
