Sandvik Coromant
6971885

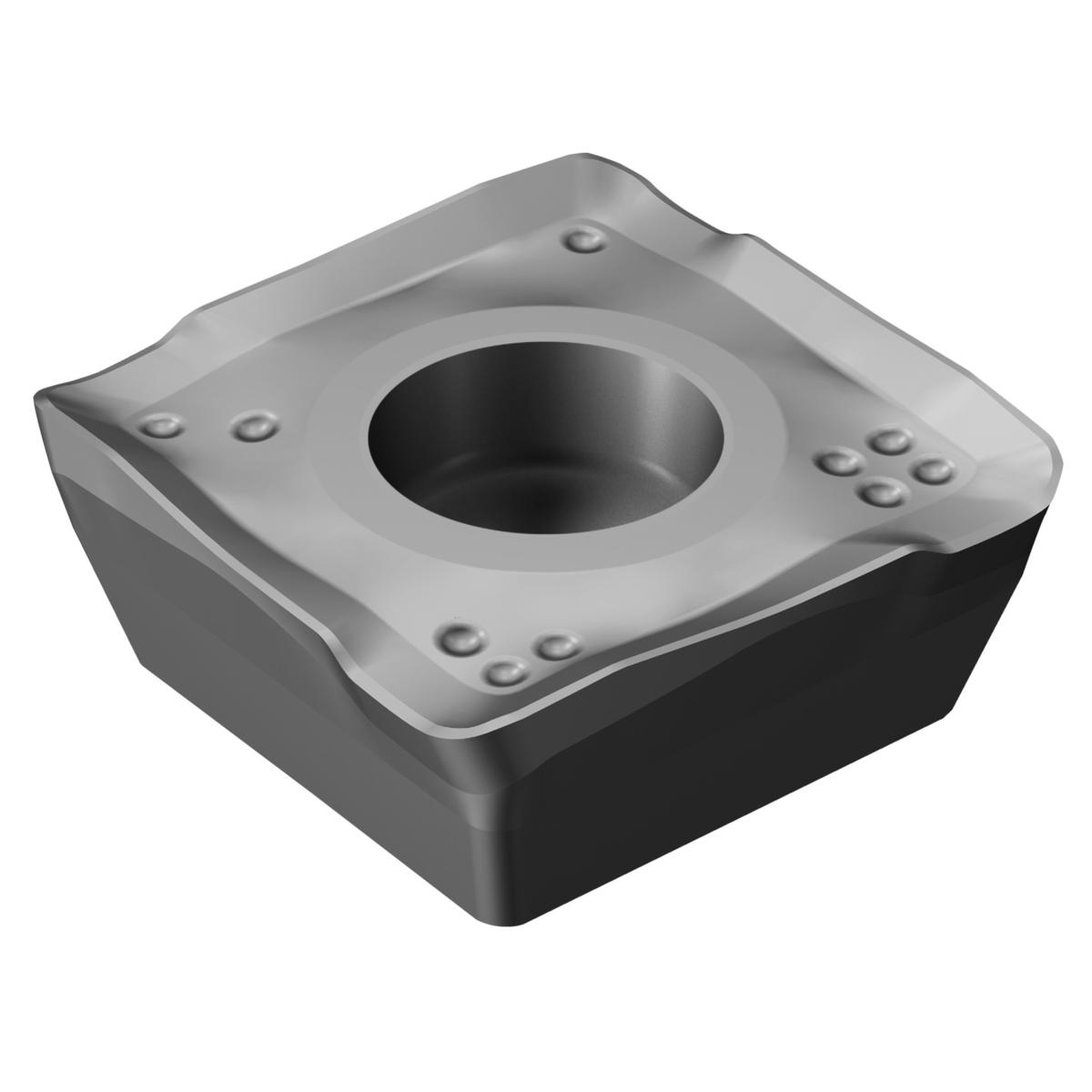

Sandvik Coromant 6971885
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | AlTiCrN |
| Thickness (Metric) | 3.3 |
| Thickness (Inch) | 0.13 |
| Short Description | CoroMill® 490 insert for milling |
| Shape | Square |
| Style | 490R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 490 |
| Size | 08T3 |
| Grade | 1130 |
| Inscribed Circle Diameter | 8.5 mm |
| Thickness | 3.3 mm |
| Chip Breaker Type | PH |
| Length (Decimal) | 0.22 |
| Inscribed Circle Diameter (Decimal) | 0.34 |
| Inscribed Circle Diameter (Metric) | 8.5 |
| ANSI Code | 490R-08T308M-PH 1130 |
| ISO Code | 490R-08T308M-PH 1130 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.8 |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | PVD |
| Operation Type | Heavy |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.05 |
| Wiper Edge Length (Metric) | 1.2 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Application | Milling, General |
| ISO Material Classification | PMSH |
| Base Item Number | 2007 |
| Insert Size | 08T3 |
| Length | 5.6 mm |
| Max. Depth Of Cut (Decimal) | 0.22 |
| Max. Depth Of Cut (Metric) | 5.5 |
| Maximum Depth Of Cut (Inch) | 0.22 |
| Maximum Depth Of Cut (Metric) | 5.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.005 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | 490R |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | 490R-08T308M-PH1130 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 490R-08T308M-PH 1130 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323220772285 |
