Sandvik Coromant
6971936
Sandvik Coromant 6971936
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | AlTiCrN |
| Thickness (Metric) | 4.75 |
| Thickness (Inch) | 0.19 |

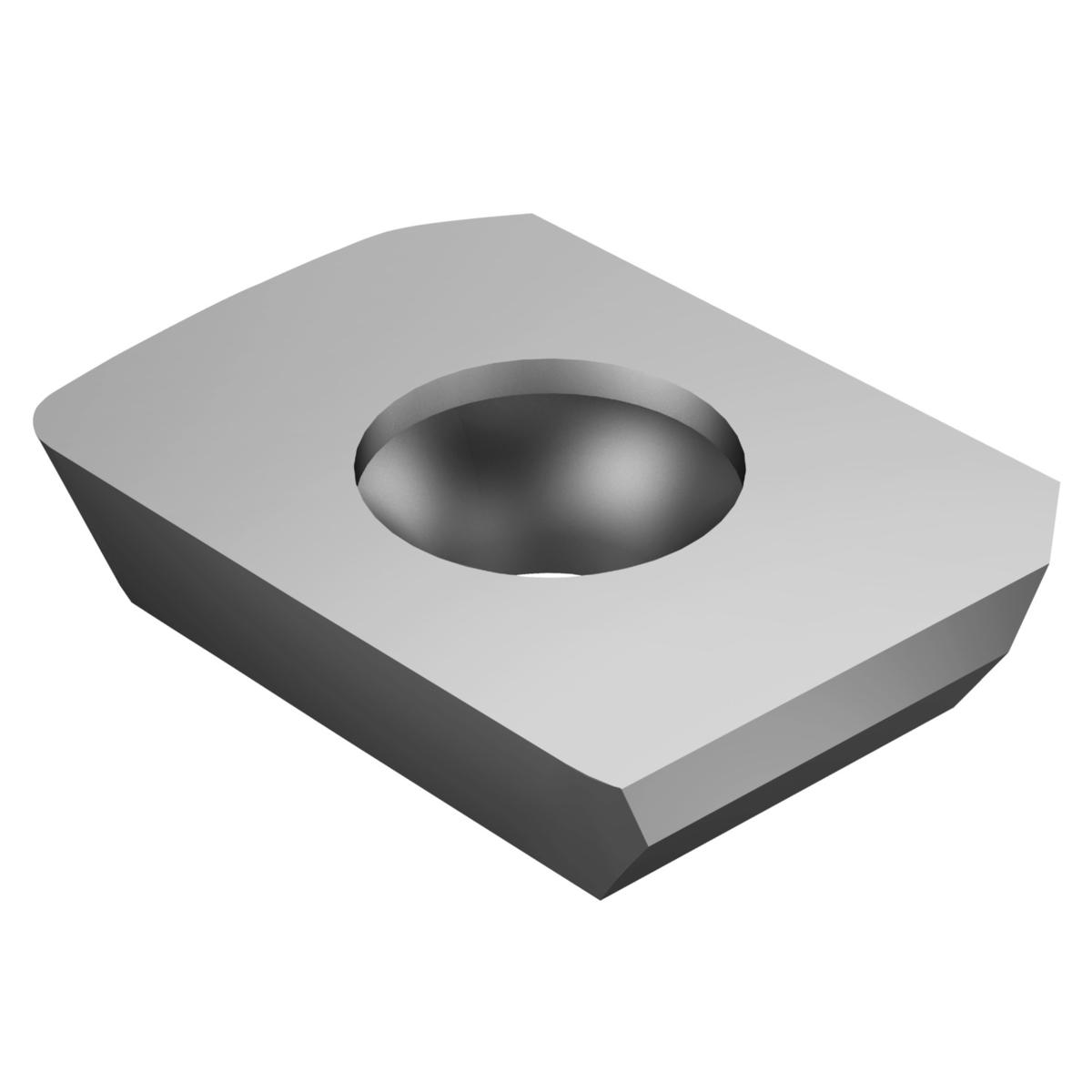

| Short Description | T-Max® Long edge insert for milling |
| Shape | Rectangle |
| Style | LEHT |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.54 |
| Country of Origin | Sweden |
| Series | T-Max Long edge |
| Size | 1804 |
| Grade | 1130 |
| Thickness | 4.75 mm |
| Chip Breaker Type | PL |
| Length (Decimal) | 0.75 |
| ANSI Code | LEHT 18 04 16R-PL2 1130 |
| ISO Code | LEHT 18 04 16R-PL2 1130 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.6 |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.7 |
| Coating Process Type | PVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| ISO Material Classification | PMNSH |
| Base Item Number | 1023 |
| Insert Size | 1804 |
| Length | 19 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.022 LB |
| Width | 13.72 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | LEHT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | LEHT180416R-PL21130 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | LEHT 18 04 16R-PL2 1130 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323220772582 |
