Sandvik Coromant
6976176
Sandvik Coromant 6976176
Specifications
| ANSI Code | QD-RR1G33-25A |
|---|---|
| Base Item Number | 2061 |
| Blade Style | QD-RR..A |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Coolant Through | No |
| Country of Origin | Sweden |
| Direction Of Hand | Left |
| Insert Seat Size Code | G |
| Insert Style | QD-NG-0300-0002-CM |
| Max. Cutting Depth (Decimal) | 1.3 |
| Max. Cutting Depth (Metric) | 33 |
| Max. Overhang (Decimal) | 1.97 |
| Max. Overhang (Metric) | 50 |
| Min. Overhang (Decimal) | 1.3 |
| Min. Overhang (Metric) | 33 |
| Overall Height (Inch) | 0.98 |
| Overall Height (Metric) | 25 |
| Overall Length | 110 mm |
| Overall Length (Inch) | 4.33 |
| Overall Length (Metric) | 110 |
| Overall Width | 2.68 mm |
| Overall Width (Decimal) | 0.11 |
| Overall Width (Metric) | 2.68 |
| Product Type | Industrial Supplies |
| Series | CoroCut QD |
| Shank Height | 31.9 mm |
| Shank Height (Inch) | 1.26 |
| Shank Height (Metric) | 31.9 |

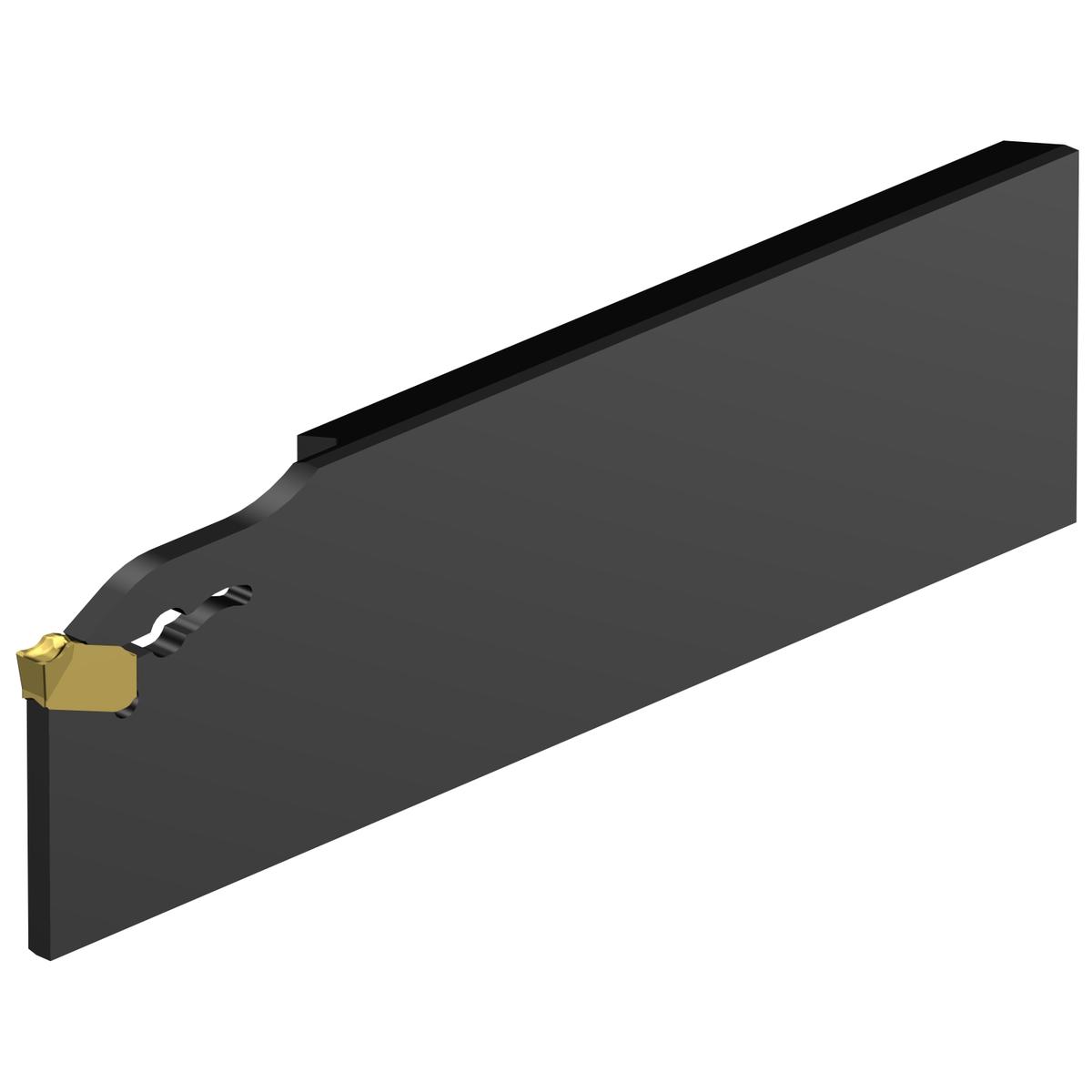

| Short Description | CoroCut® QD blade for parting |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
| Weight | 0.346 LB |
| Workpiece Side Body Angle | 0 degrees |
