Sandvik Coromant
6981113
Sandvik Coromant 6981113
Specifications
| Center to Cutting Edge (Inch) | 0.95 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.3 |
| Size | 16 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 33 |
| Center to Cutting Edge (Metric) | 24 |

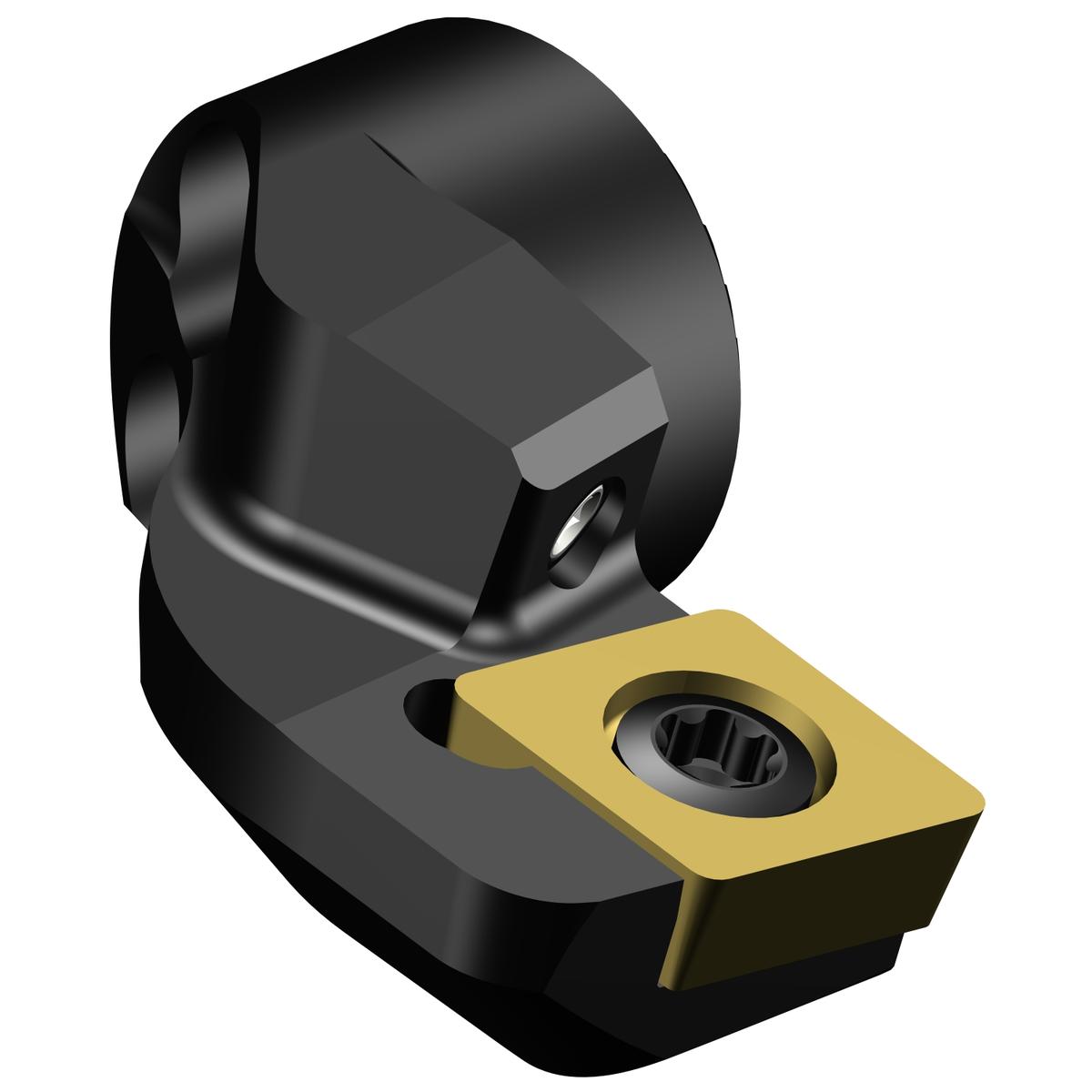

| Short Description | CoroTurn® 107 head for back boring |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 24 mm |
| Insert Style | CCMT 09T308 |
| ANSI Code | SL-SCUCR-16-09-16X |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1015.26 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -7 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Protruding Length (Decimal) | 0.87 |
| Protruding Length (Metric) | 22 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Norway |
| Base Item Number | 1053 |
| Max. Hole Depth | 7 mm |
| Max. Hole Depth (Decimal) | 0.28 |
| Max. Hole Depth (Metric) | 7 |
| Max. Overhang (Decimal) | 0.28 |
| Max. Overhang (Metric) | 7 |
| Maximum Ramping Angle | 7 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.117 LB |
