Sandvik Coromant
7046607

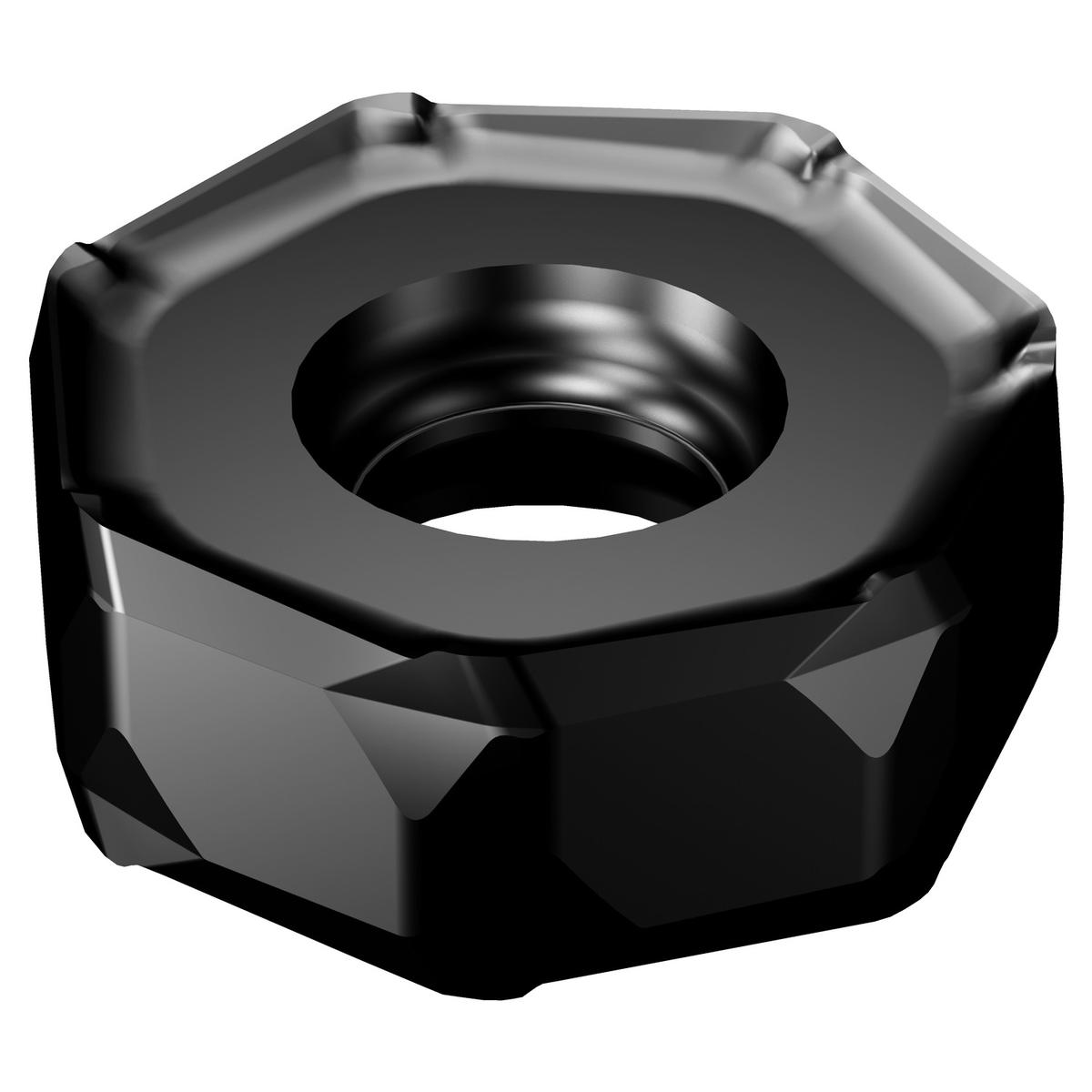

Sandvik Coromant 7046607
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3 |
| Thickness (Metric) | 9 |
| Thickness (Inch) | 0.35 |
| Short Description | CoroMill® 745 insert for milling |
| Style | 745R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 745 |
| Size | 2109 |
| Grade | 3040 |
| Inscribed Circle Diameter | 21 mm |
| Thickness | 9 mm |
| Chip Breaker Type | H50 |
| Length (Decimal) | 0.35 |
| Inscribed Circle Diameter (Decimal) | 0.83 |
| Inscribed Circle Diameter (Metric) | 21 |
| ANSI Code | 745R-2109E-H50 3040 |
| ISO Code | 745R-2109E-H50 3040 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.04 |
| Coner Radius (Metric) | 1 |
| Fixing Hole Diameter (Decimal) | 0.33 |
| Fixing Hole Diameter (Metric) | 8.3 |
| Coating Process Type | CVD |
| Operation Type | Heavy |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.01 |
| Wiper Edge Length (Metric) | 0.3 |
| Face Land Width (Decimal) | 0.016 |
| Face Land Width (Metric) | 0.4 |
| Major Cutting Edge Angle | 42 degrees |
| Rake Angle | 44 degrees |
| Corner Chamfer | 17 degrees |
| Face Land Angle | -16 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 14 |
| Wiper Edge Radius (Decimal) | 0.98 |
| Wiper Edge Radius (Metric) | 25 |
| Corner Chamfer Width (Decimal) | 0.051 |
| Corner Chamfer Width (Metric) | 1.3 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Base Item Number | 2073 |
| Insert Size | 2109 |
| Length | 8.9 mm |
| Max. Depth Of Cut (Decimal) | 0.21 |
| Max. Depth Of Cut (Metric) | 5.2 |
| Maximum Depth Of Cut (Inch) | 0.21 |
| Maximum Depth Of Cut (Metric) | 5.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.073 LB |
| Height Packed Product Metric | 18 mm |
| Insert Style | 745R |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | 745R-2109E-H503040 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 745R-2109E-H50 3040 |
| Length Packed Product Imperial | 5.827 inch |
| EAN Code | 7323221050931 |
