Sandvik Coromant
7048382

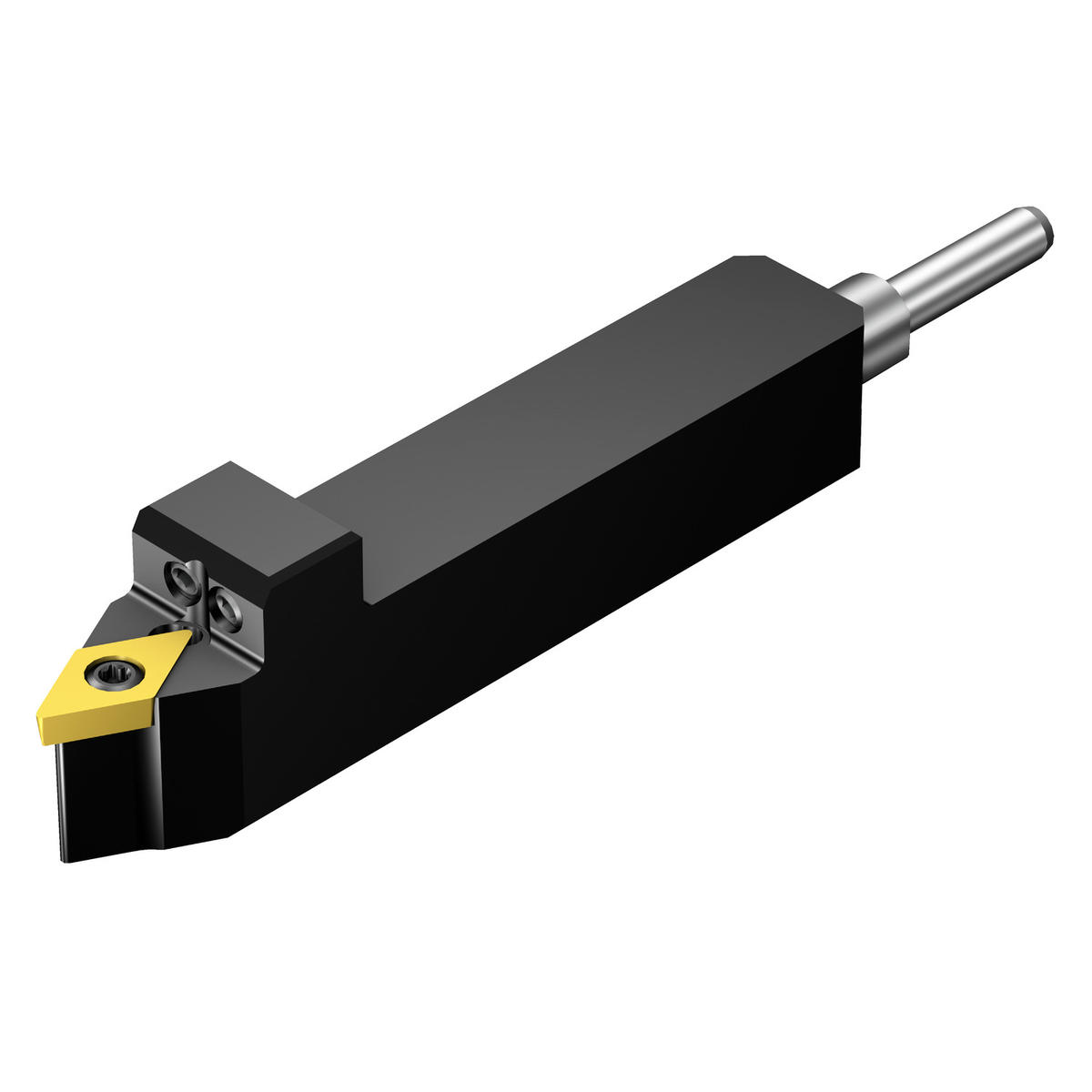

Sandvik Coromant 7048382
Specifications
| Overall Length (Metric) | 70 |
|---|---|
| Series | CoroTurn 107 |
| Tool Lead Angle | 27.5 degrees |
| Overall Length (Inch) | 2.76 |
| Insert Style | QS-SDNCN..HP |
| Short Description | CoroTurn® 107 QS shank tool for turning |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.38 |
| Shank Width (Metric) | 12 |
| Shank Height (Metric) | 12 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 12 |
| Overall Height (Decimal) | 0.47 |
| Overall Length | 70 mm |
| Insert Compatibility | DCMT 070204 |
| ANSI Code | QS-SDNCN1212E07HP |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.47 |
| Overall Width (Metric) | 12 |
| Shank Height (Decimal) | 0.47 |
| Coolant Pressure | 1160.3 lbf/in2 |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 62.5 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | Germany |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 0.87 |
| Max. Overhang (Metric) | 22 |
| Maximum Ramping Angle | 58.5 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.203 LB |
