Sandvik Coromant
7079653

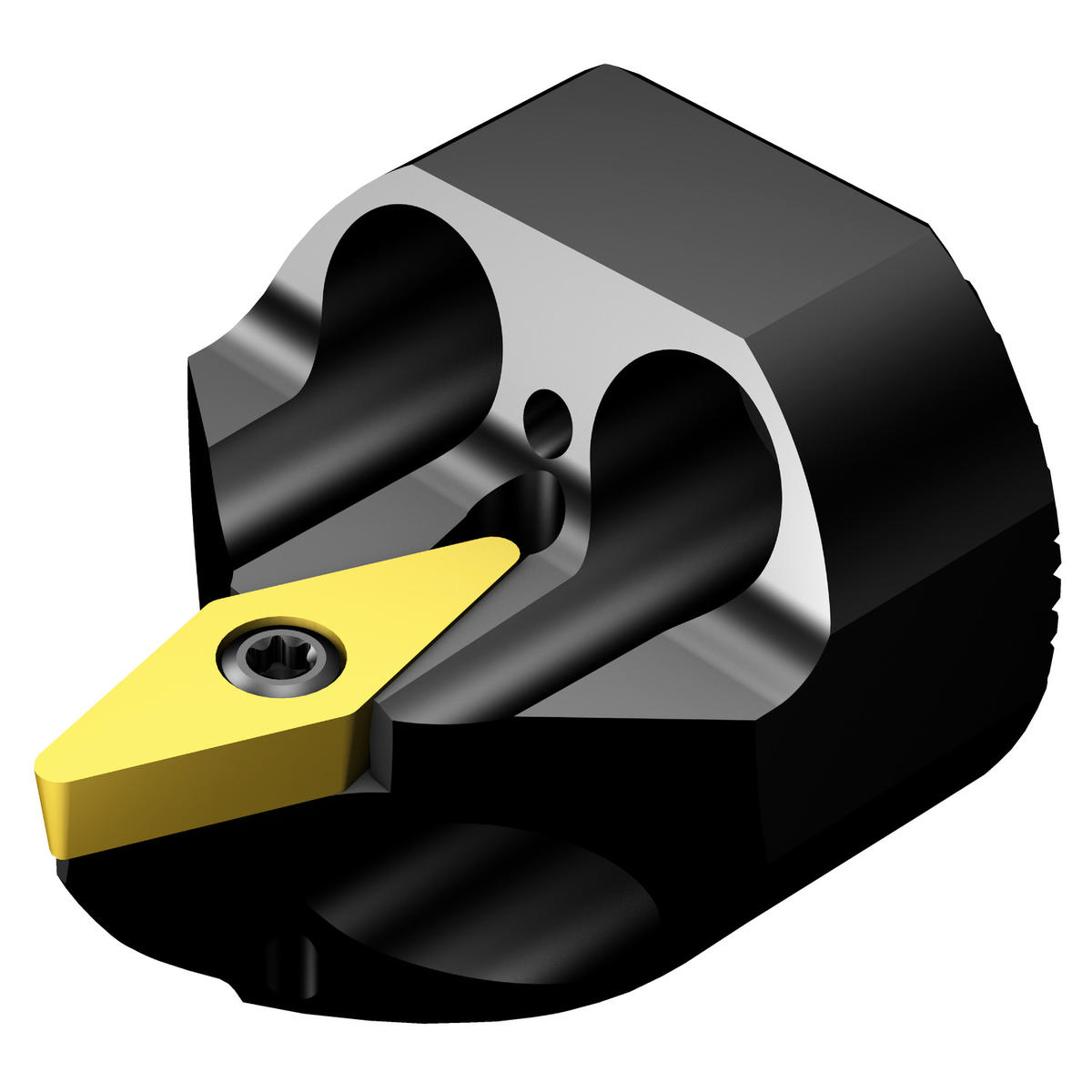

Sandvik Coromant 7079653
Specifications
| Center to Cutting Edge (Inch) | 0.02 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.18 |
| Series | CoroBore XL |
| Bore Diameter (Metric) | 30 |
| Center to Cutting Edge (Metric) | 0.53 |
| Short Description | CoroTurn® 107 head for SpiroGrooving™ |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 0.53 mm |
| Insert Style | VCMT 110304 |
| ANSI Code | SL-SVXCR-25A-11-030 |
| Connection Diameter (Decimal) | 0.98 |
| Connection Diameter (Metric) | 25 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1015.26 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | -3 degrees |
| Tool Cutting Edge Angle | 67 degrees |
| Tool Lead Angle | 23 degrees |
| Usable Length (Decimal) | 0.35 |
| Usable Length (Metric) | 9 |
| Overall Height (Decimal) | 0.098 |
| Overall Height (Metric) | 2.5 |
| Body Diameter (Decimal) | 0.98 |
| Body Diameter (Metric) | 25 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 4: Axial Concentric On Circle |
| Country of Origin | Germany |
| Base Item Number | 2022 |
| Max. Hole Depth | 30 mm |
| Max. Hole Depth (Decimal) | 1.18 |
| Max. Hole Depth (Metric) | 30 |
| Max. Overhang (Decimal) | 1.18 |
| Max. Overhang (Metric) | 30 |
| Maximum Ramping Angle | 75 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.117 LB |
| Height Packed Product Metric | 35 mm |
| Height Packed Product Imperial | 1.378 inch |
| ISO Code (packed) | SL-SVXCR-25A-11-030 |
| Length Packed Product Metric | 66 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-SVXCR-25A-11-030 |
| Length Packed Product Imperial | 2.598 inch |
| EAN Code | 7323221179762 |
