Sandvik Coromant
7079779
Sandvik Coromant 7079779
Specifications
| Material | Steel |
|---|---|

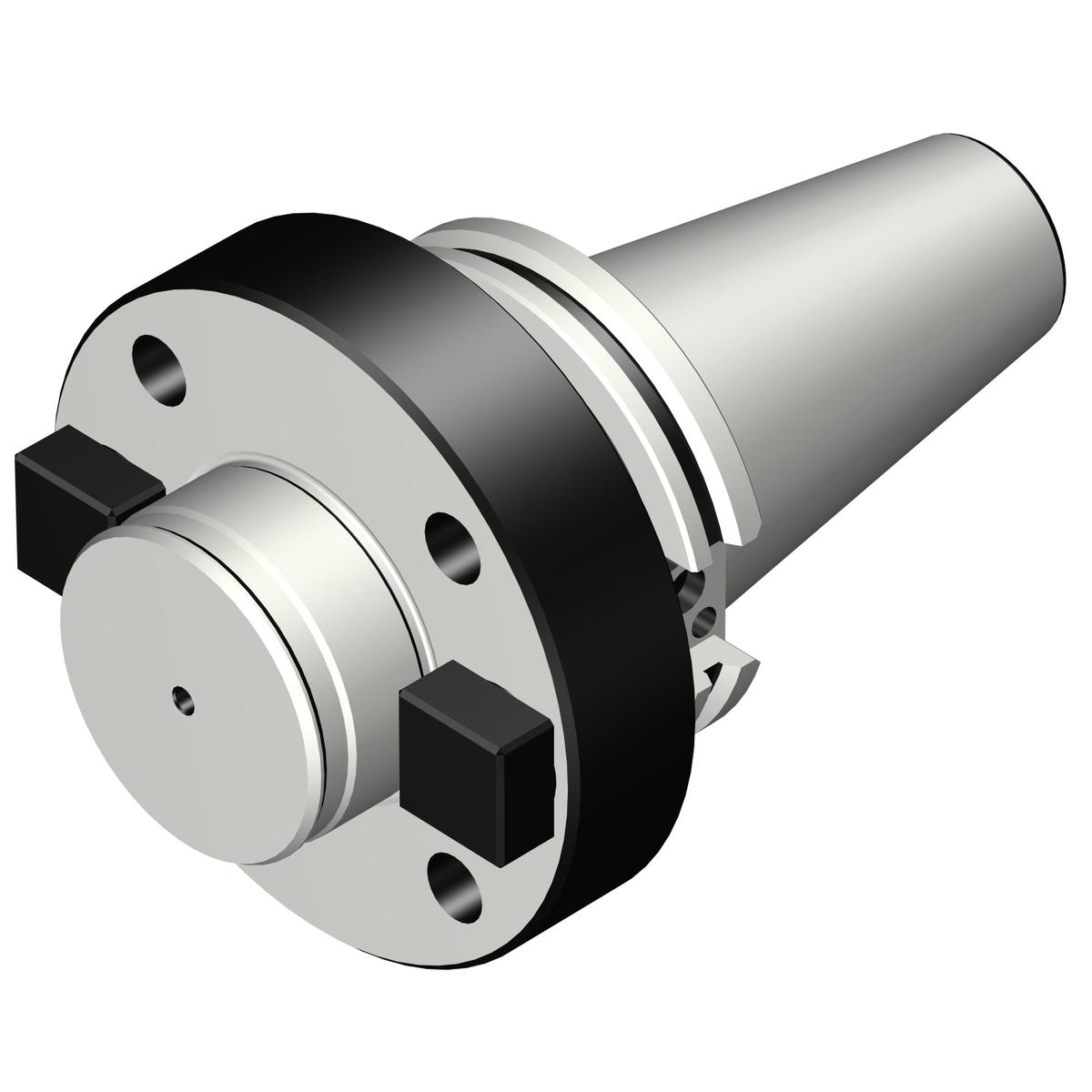

| Short Description | BIG-PLUS CAT-V to arbor adaptor |
| Unit Of Measure | Imperial |
| Overall Length | 2.56 Inch |
| Overall Length (Decimal) | 2.56 |
| Overall Length (Metric) | 65 |
| ANSI Code | A392.54505-5063065 |
| Coolant Through | No |
| Body Diameter (Decimal) | 5.12 |
| Body Diameter (Metric) | 130 |
| Body Length (Decimal) | 2.56 |
| Body Length (Metric) | 65 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | 1-8 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 88.508 |
| Torque (NM) | 120 |
| Coolant Entry Style Code | 0: without coolant |
| Coolant Exit Style Code | 0: no coolant exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 2.56 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 16.092 LB |
