Sandvik Coromant
7079928
Sandvik Coromant 7079928
Specifications
| Shank Diameter (Metric) | 63 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 2.48 |

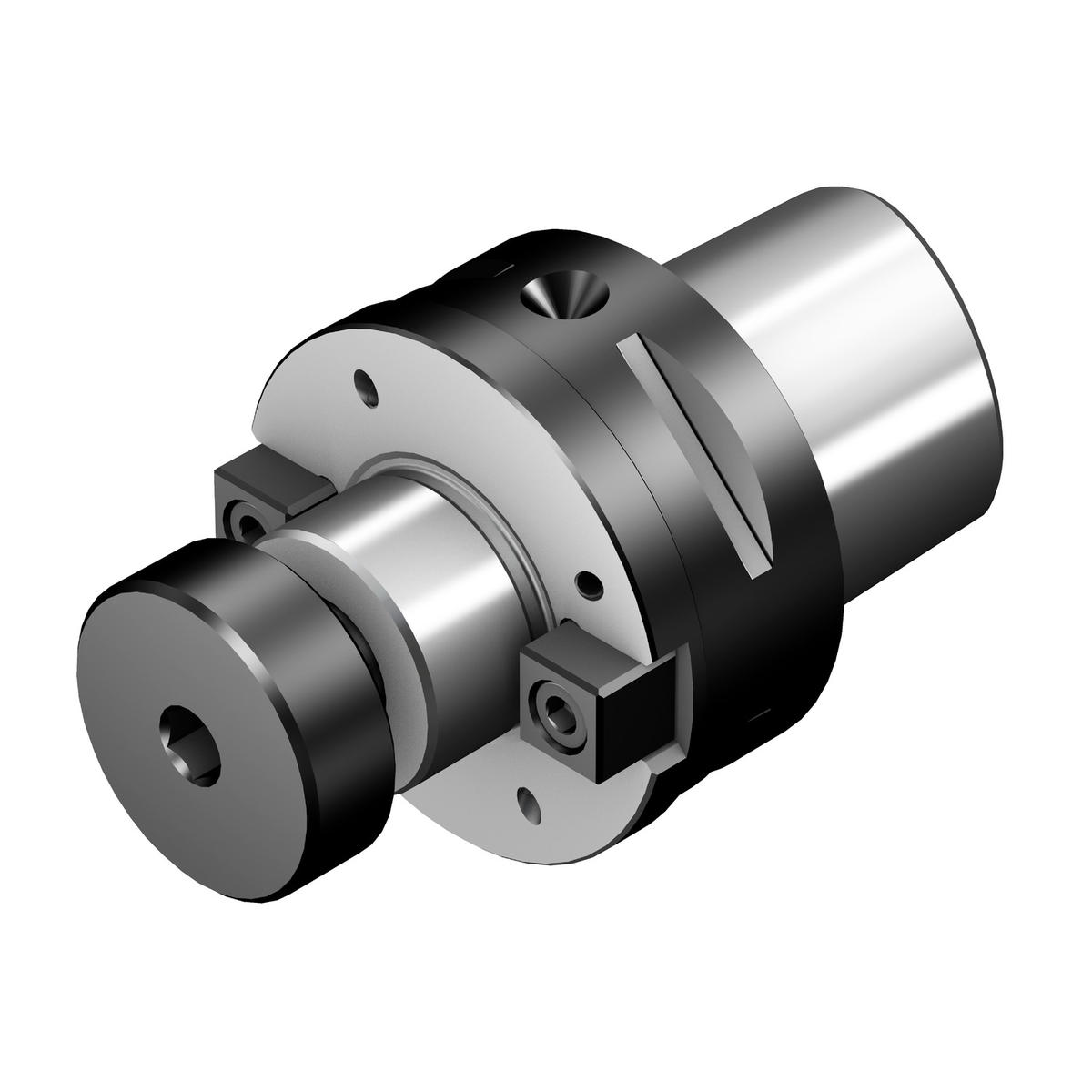

| Short Description | Coromant Capto® to arbor adaptor |
| Unit Of Measure | Imperial |
| Shank Diameter | 2.48 Inch |
| Overall Length | 1.18 Inch |
| Overall Length (Decimal) | 1.18 |
| Overall Length (Metric) | 30 |
| ANSI Code | C6-A391.07C-31 030 |
| Coolant Through | Yes |
| Connection Size | C6 |
| Body Diameter (Decimal) | 2.56 |
| Body Diameter (Metric) | 65 |
| Body Length (Decimal) | 1.18 |
| Body Length (Metric) | 30 |
| Functional Diameter (Decimal) | 1.73 |
| Functional Diameter (Metric) | 44 |
| Clamping Length (Decimal) | 0.71 |
| Clamping Length (Metric) | 18 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 88.508 |
| Torque (NM) | 120 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 3: axial inclined exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 1.18 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 12000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.734 LB |
