Sandvik Coromant
7080692
Sandvik Coromant 7080692
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 10 |
| Material | WC or Cermet |
| Size | 2006 |
| Corner Radius (Inch) | 0.39 |
| Style | RCMT |
| Thickness (Inch) | 0.25 |

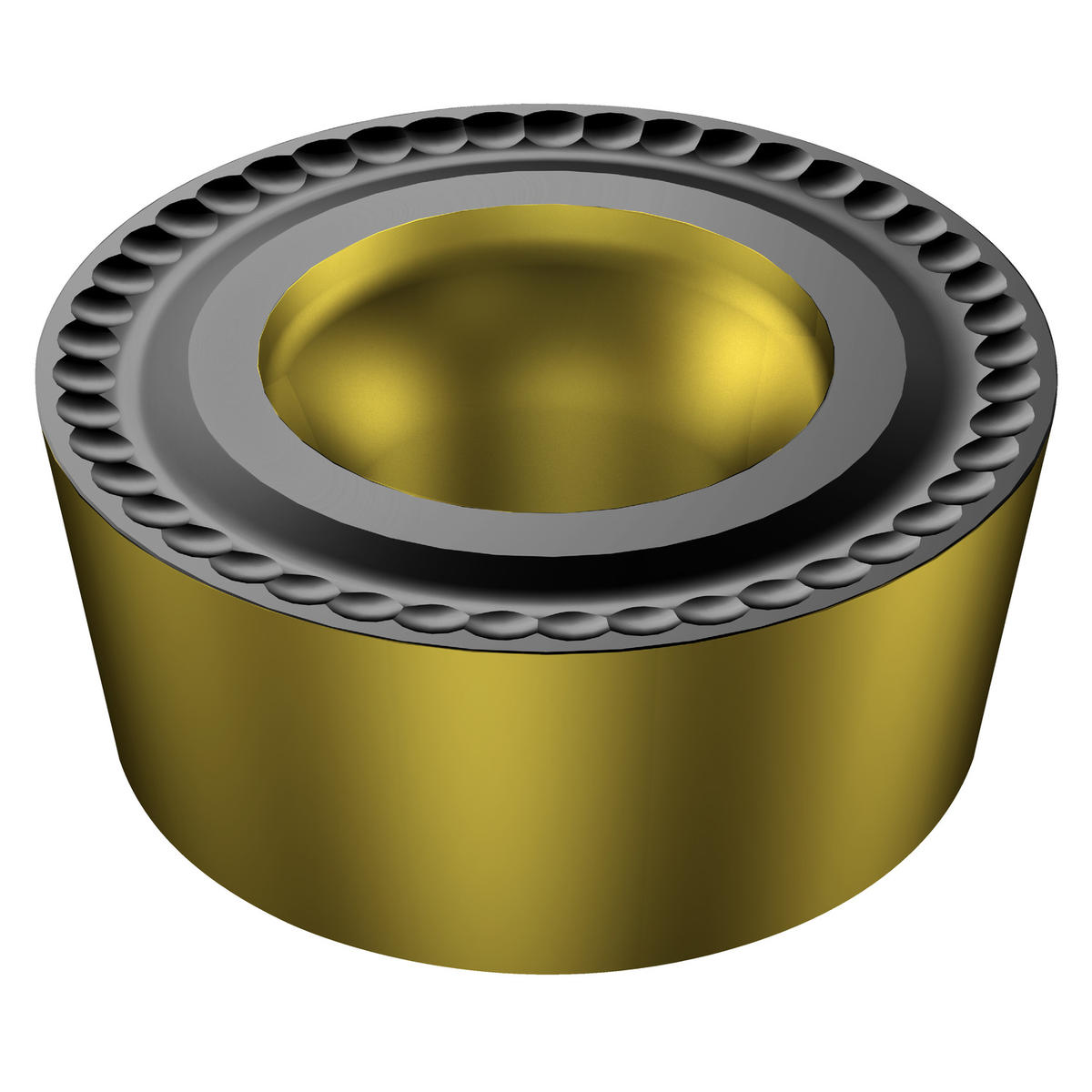

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 4335 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 20 mm |
| Inscribed Circle Diameter (Decimal) | 0.79 |
| Inscribed Circle Diameter (Metric) | 20 |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.15 |
| Face Land Width (Decimal) | 0.006 |
| Face Land Angle | 15 degrees |
| Shape | Round |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | M0 |
| ANSI Code | RCMT 20 06 M0 4335 |
| ISO Code | RCMT 20 06 M0 4335 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.25 |
| Fixing Hole Diameter (Metric) | 6.35 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | P |
| Base Item Number | 1053 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.046 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | RCMT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | RCMT2006M04335 |
| Insert Size | 2006 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCMT 20 06 M0 4335 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323221185091 |
