Sandvik Coromant
7080766

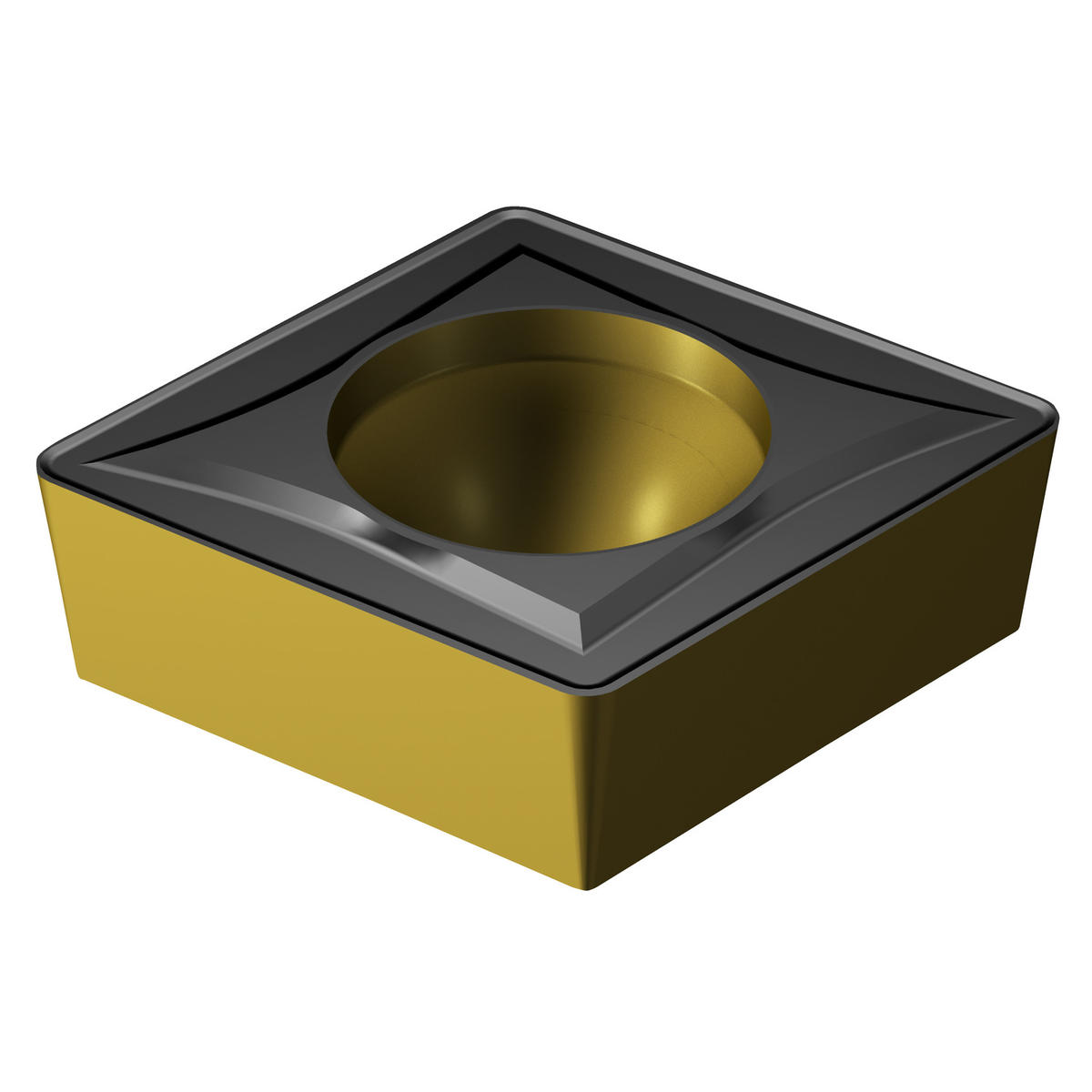

Sandvik Coromant 7080766
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 5.56 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 542 |
| Corner Radius (Inch) | 0.03 |
| Style | CCMT |
| Thickness (Inch) | 0.22 |
| Short Description | CoroTurn® 107 insert for turning |
| Grade | 4335 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 15.88 mm |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Inscribed Circle Diameter (Metric) | 15.88 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.6 |
| Length (Metric) | 15.32 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | UR |
| ANSI Code | CCMT 542-UR 4335 |
| ISO Code | CCMT 16 05 08-UR 4335 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.5 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | P |
| Base Item Number | 1053 |
| Length | 15.32 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.035 LB |
| Height Packed Product Metric | 14 mm |
| Insert Style | CCMT |
| Height Packed Product Imperial | 0.551 inch |
| ISO Code (packed) | CCMT160508-UR4335 |
| Insert Size | 542 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CCMT 16 05 08-UR 4335 |
| Length Packed Product Imperial | 5.118 inch |
| EAN Code | 7323221185831 |
