Sandvik Coromant
7082912
Sandvik Coromant 7082912
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 4.5 |
| Thickness (Inch) | 0.18 |

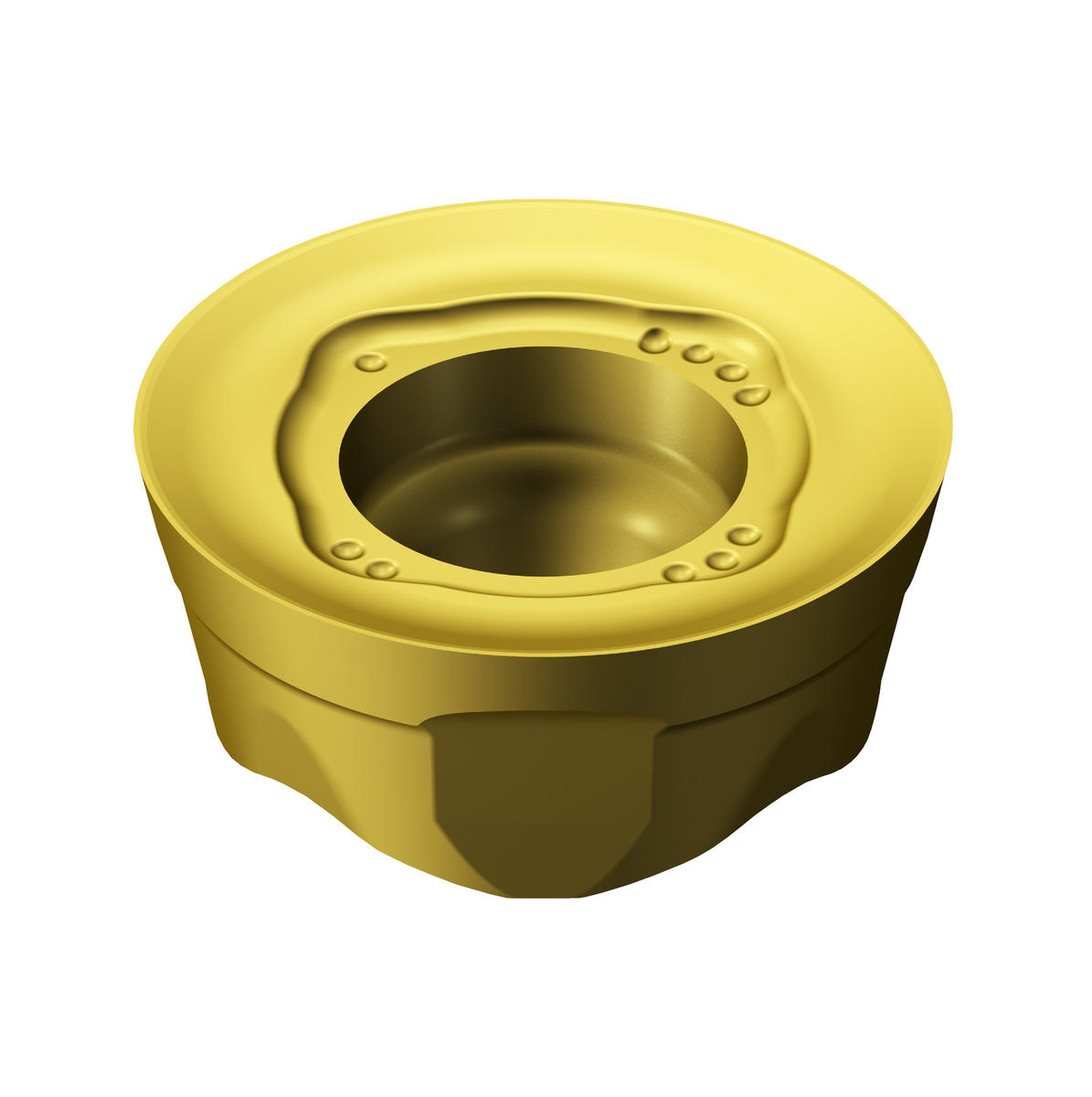

| Short Description | CoroMill® 600 insert for milling |
| Shape | Round |
| Style | 600 |
| Unit Of Measure | Metric |
| Country of Origin | United States |
| Series | CoroMill 600 |
| Size | 1045 |
| Grade | S40T |
| Inscribed Circle Diameter | 10 mm |
| Thickness | 4.5 mm |
| Chip Breaker Type | ML |
| Inscribed Circle Diameter (Decimal) | 0.39 |
| Inscribed Circle Diameter (Metric) | 10 |
| ANSI Code | 600-1045E-ML S40T |
| ISO Code | 600-1045E-ML S40T |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.2 |
| Coner Radius (Metric) | 5 |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.5 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Application | Milling, General |
| ISO Material Classification | MS |
| Base Item Number | 2030 |
| Insert Size | 1045 |
| Max. Depth Of Cut (Decimal) | 0.2 |
| Max. Depth Of Cut (Metric) | 5 |
| Maximum Depth Of Cut (Inch) | 0.2 |
| Maximum Depth Of Cut (Metric) | 5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.007 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | 600 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | 600-1045E-MLS40T |
| Length Packed Product Metric | 98 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 600-1045E-ML S40T |
| Length Packed Product Imperial | 3.858 inch |
| EAN Code | 7323221198275 |
