Sandvik Coromant
7100702
Sandvik Coromant 7100702
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 6 |
| Corner Radius (Metric) | 0.8 |
| Material | WC or Cermet |
| Size | 11 |
| Corner Radius (Inch) | 0.03 |
| Style | CP-A |
| Thickness (Inch) | 0.24 |

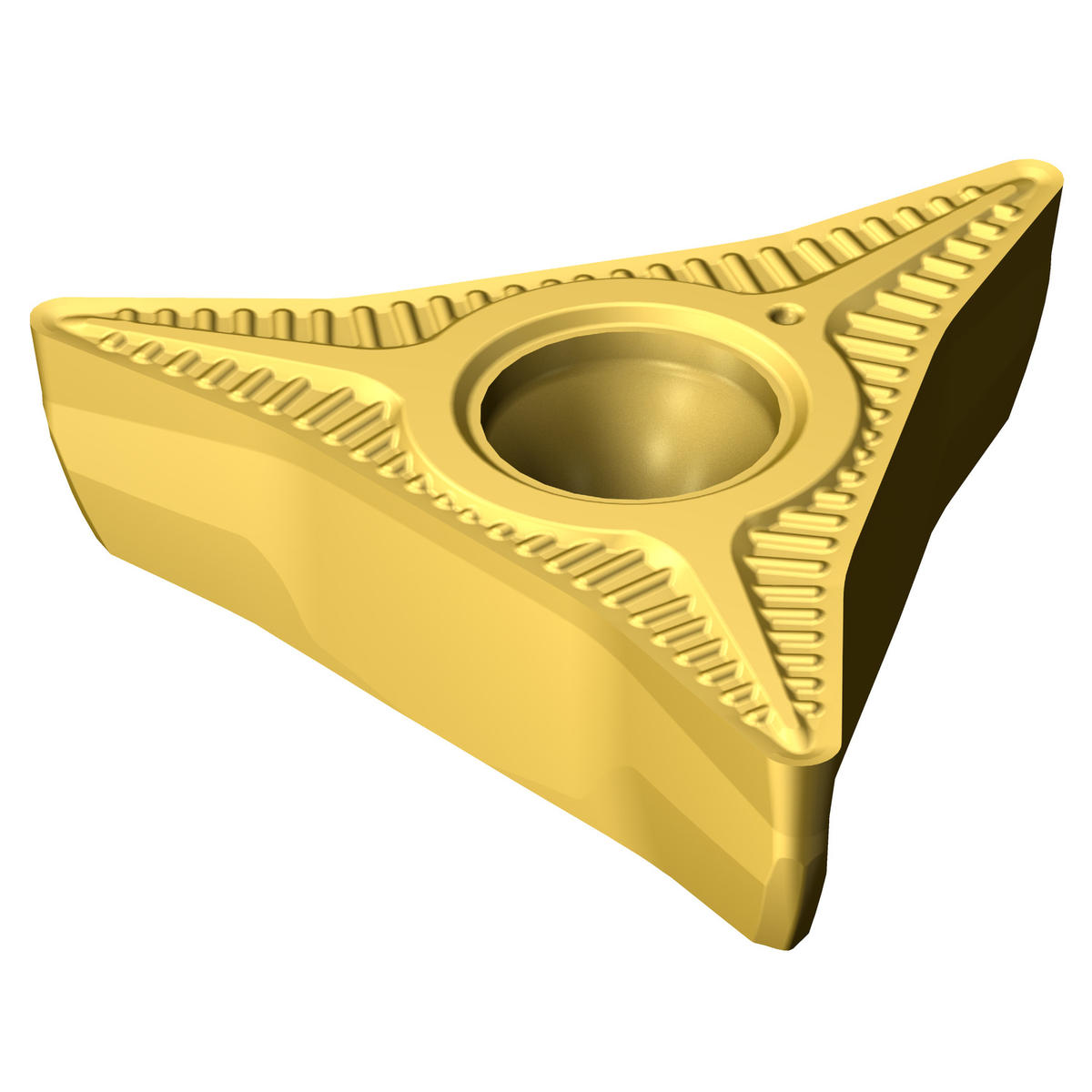

| Short Description | CoroTurn® Prime insert for turning |
| Grade | 2025 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 11 mm |
| Inscribed Circle Diameter (Decimal) | 0.43 |
| Inscribed Circle Diameter (Metric) | 11 |
| Clearance Angle Major | 6 degrees |
| Rake Angle | 0 degrees |
| Country of Origin | Sweden |
| Series | CoroTurn Prime |
| Chip Breaker Type | L5W |
| ANSI Code | CP-A1108-L5W 2025 |
| ISO Code | CP-A1108-L5W 2025 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.7 |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Major Cutting Edge Angle | 27.5 degrees |
| Wiper Edge Property | Yes |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 2083 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.027 LB |
| Height Packed Product Metric | 18 mm |
| Insert Style | CP-A |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | CP-A1108-L5W2025 |
| Insert Size | 11 |
| Length Packed Product Metric | 140 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CP-A1108-L5W 2025 |
| Length Packed Product Imperial | 5.512 inch |
| EAN Code | 7323221284435 |
