Sandvik Coromant
7100720

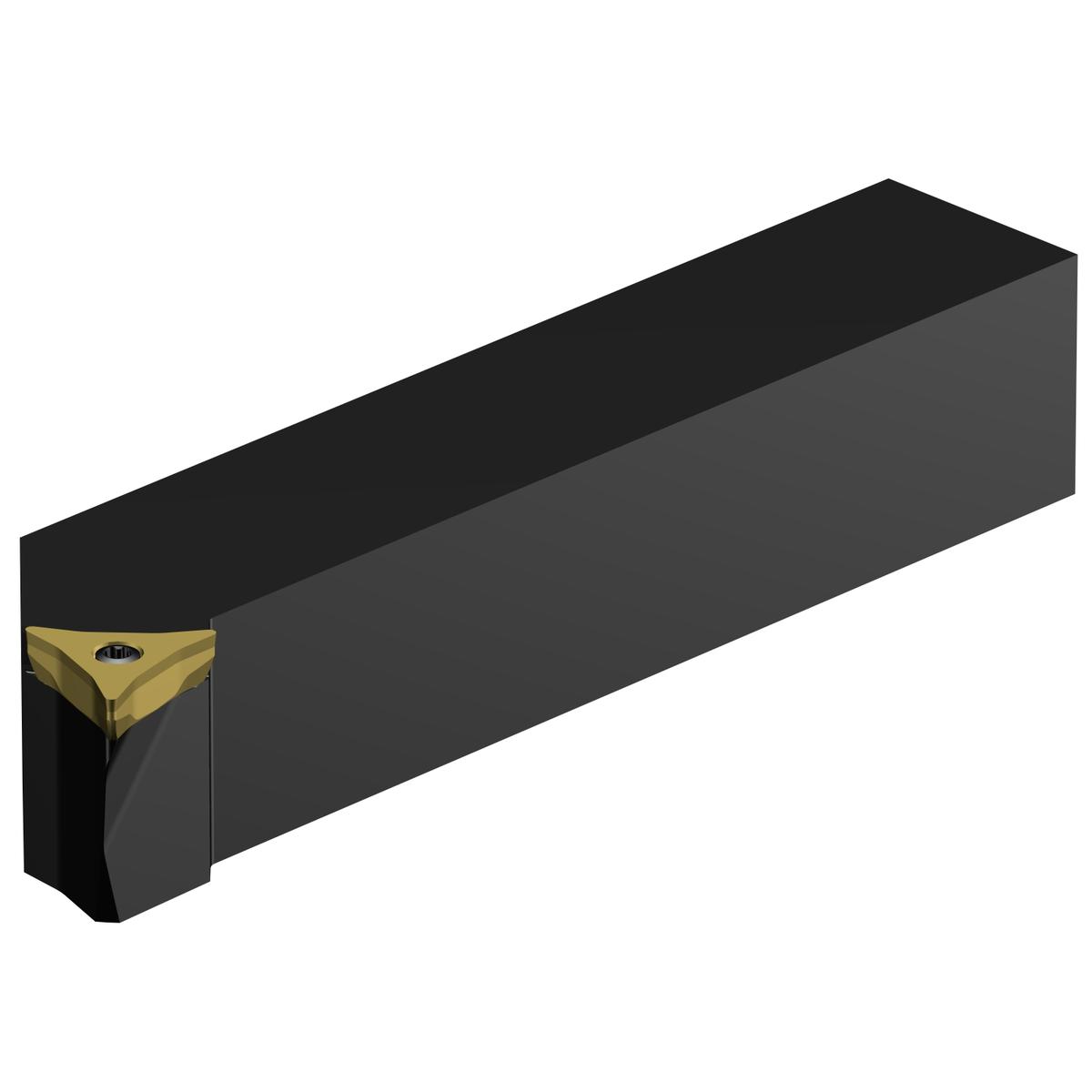

Sandvik Coromant 7100720
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | CoroTurn Prime |
| Tool Lead Angle | -25 degrees |
| Overall Length (Inch) | 6.69 |
| Insert Style | CP-30AR/L |
| Short Description | CoroTurn® Prime shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.38 |
| Shank Width (Metric) | 32 |
| Shank Height (Metric) | 32 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 32 |
| Overall Height (Decimal) | 1.26 |
| Overall Length | 170 mm |
| Insert Compatibility | CP-A1108 |
| ANSI Code | CP-30AR-3232-11 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.58 |
| Overall Width (Metric) | 40 |
| Shank Height (Decimal) | 1.26 |
| Clamping Type Code | Screw/Clamp |
| Torque | 4 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 115 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 2083 |
| Max. Overhang (Decimal) | 2.52 |
| Max. Overhang (Metric) | 64 |
| Maximum Ramping Angle | 15 degrees |
| Min. Overhang (Decimal) | 0.93 |
| Min. Overhang (Metric) | 23.71 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.793 LB |
