Sandvik Coromant
7101009

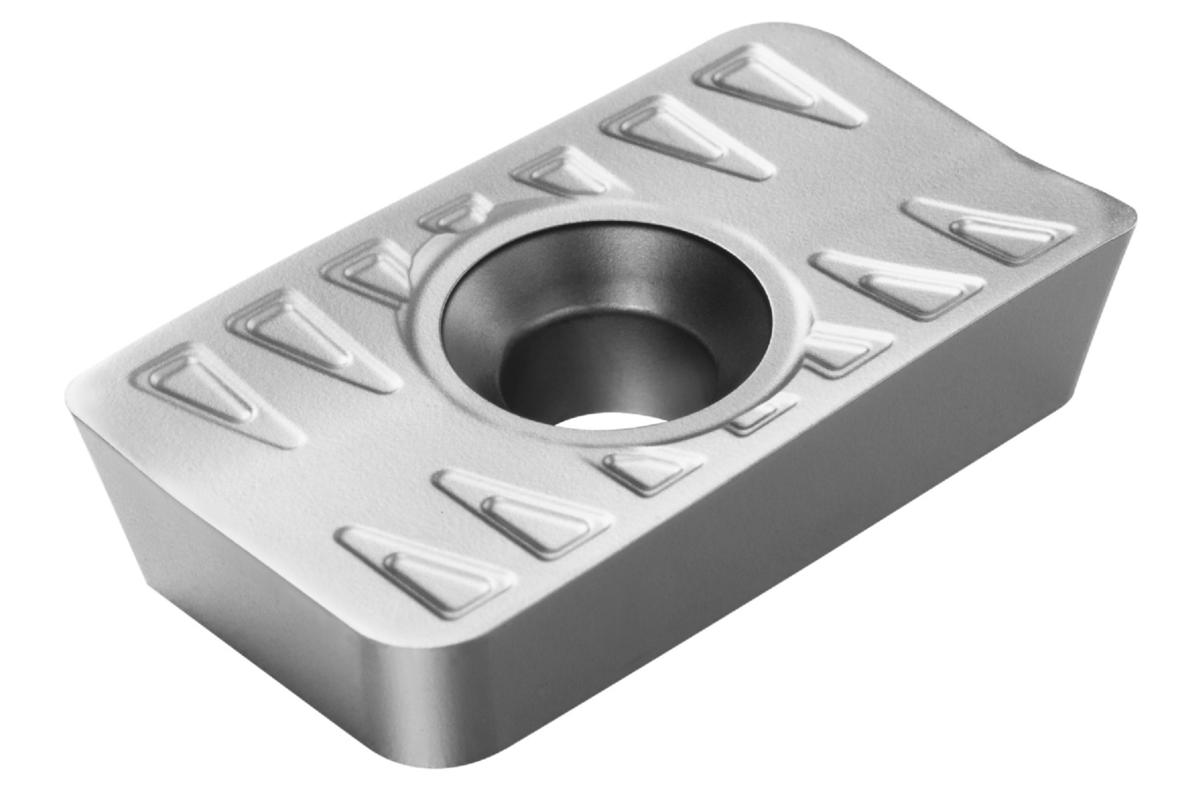

Sandvik Coromant 7101009
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | AlTiCrN |
| Thickness (Metric) | 6.35 |
| Thickness (Inch) | 0.25 |
| Short Description | Insert for milling |
| Shape | Rectangle |
| Style | LPMH |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.56 |
| Country of Origin | Sweden |
| Size | 25 |
| Grade | 1130 |
| Thickness | 6.35 mm |
| Chip Breaker Type | PM |
| Length (Decimal) | 0.85 |
| ANSI Code | LPMH 25 06 10-PM 1130 |
| ISO Code | LPMH 25 06 10-PM 1130 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.79 |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.5 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Major Cutting Edge Angle | 92 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | PMNSH |
| Base Item Number | 2099 |
| Insert Size | 25 |
| Length | 21.59 mm |
| Max. Depth Of Cut (Decimal) | 0.85 |
| Max. Depth Of Cut (Metric) | 21.6 |
| Maximum Depth Of Cut (Inch) | 0.85 |
| Maximum Depth Of Cut (Metric) | 21.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.051 LB |
| Width | 14.28 mm |
| Height Packed Product Metric | 18 mm |
| Insert Style | LPMH |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | LPMH250610-PM1130 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | LPMH 25 06 10-PM 1130 |
| Length Packed Product Imperial | 5.827 inch |
| EAN Code | 7323221286675 |
