Sandvik Coromant
7192373
Sandvik Coromant 7192373
Specifications
| Overall Length (Metric) | 118.6 |
|---|---|
| Overall Length (Inch) | 4.67 |
| Shank Width (Inch) | 0.98 |
| Shank Width (Metric) | 25 |
| Insert Style | QFT-RF..C..B |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 2.36 |
| Max. Axial Groove Outside Diameter (Metric) | 60 |
| Max. Cutting Depth | 25 mm |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Overhang (Decimal) | 1.36 |
| Max. Overhang (Metric) | 34.6 |
| Min. Axial Groove Inside Diameter (Decimal) | 1.77 |
| Min. Axial Groove Inside Diameter (Metric) | 45 |
| Min. Overhang (Decimal) | 1.36 |
| Min. Overhang (Metric) | 34.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.977 LB |

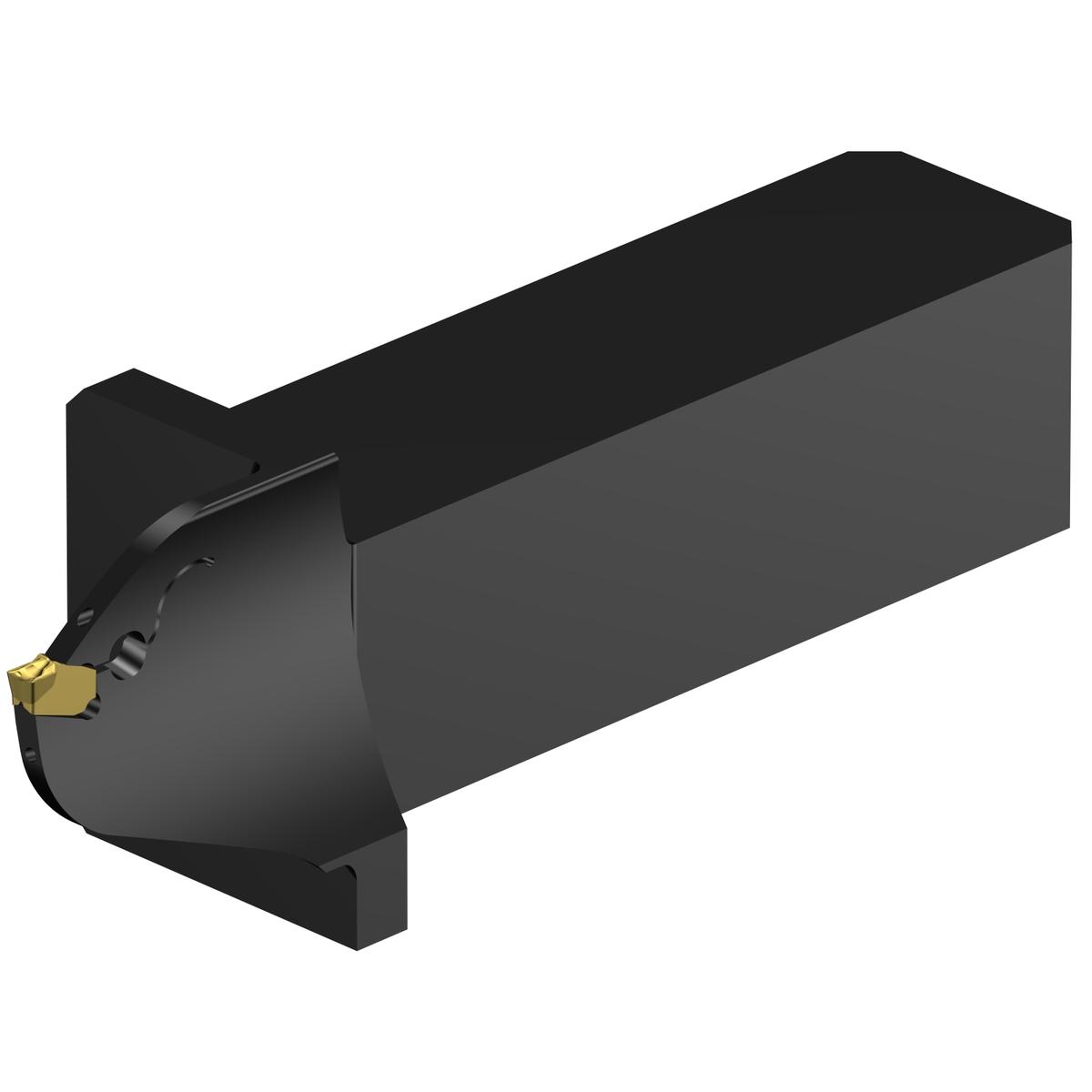

| Short Description | CoroCut® QF QS shank tool for face grooving |
| Series | CoroCut QF |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Insert Compatibility | QFT-G-0300-03-TF |
| Shank Height | 25 mm |
| Shank Width | 25 mm |
| Shank Height (Decimal) | 0.98 |
| Shank Height (Metric) | 25 |
| ANSI Code | QFT-RFG25C2525-045B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1 |
| Overall Width (Metric) | 25.5 |
| Overall Height (Decimal) | 0.98 |
| Overall Height (Metric) | 25 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
