Sandvik Coromant
7192464

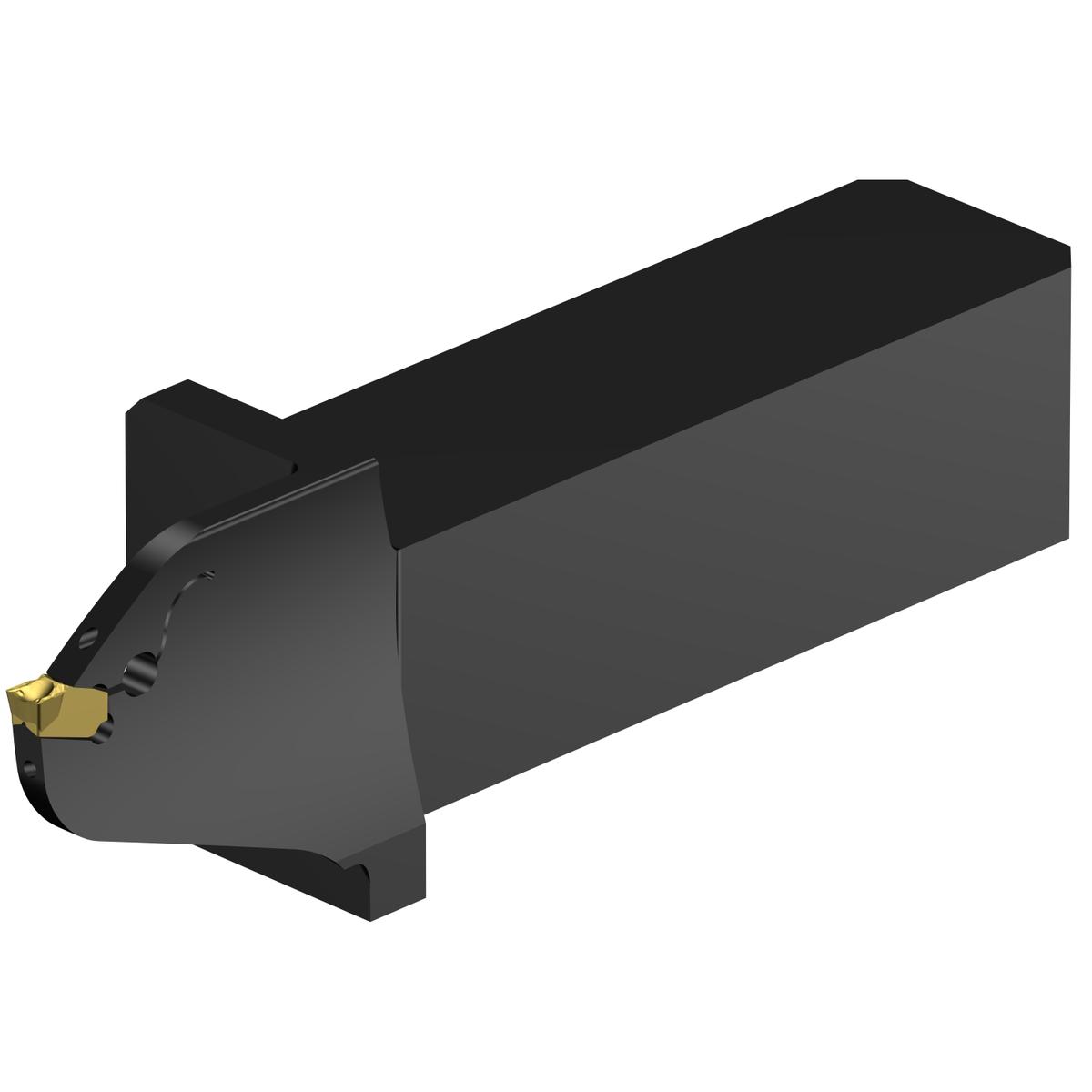

Sandvik Coromant 7192464
Specifications
| Overall Length (Metric) | 125.35 |
|---|---|
| Series | CoroCut QF |
| Overall Length (Inch) | 4.94 |
| Insert Style | QFT-RF..C..B (INCH) |
| Short Description | CoroCut® QF QS shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 1.72 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 4.94 Inch |
| Insert Compatibility | QFT-H-0400-03-TF |
| ANSI Code | QFT-RFH125C16-065B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 4.25 |
| Max. Axial Groove Outside Diameter (Metric) | 108 |
| Max. Cutting Depth (Decimal) | 1.25 |
| Max. Cutting Depth (Metric) | 31.75 |
| Max. Overhang (Decimal) | 1.63 |
| Max. Overhang (Metric) | 41.35 |
| Min. Axial Groove Inside Diameter (Decimal) | 2.56 |
| Min. Axial Groove Inside Diameter (Metric) | 65 |
| Min. Overhang (Decimal) | 1.63 |
| Min. Overhang (Metric) | 41.35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.021 LB |
