Sandvik Coromant
7192473
Sandvik Coromant 7192473
Specifications
| Overall Length (Metric) | 132 |
|---|---|
| Series | CoroCut QF |
| Overall Length (Inch) | 5.2 |
| Insert Style | QFU-LF..C..B (INCH) |

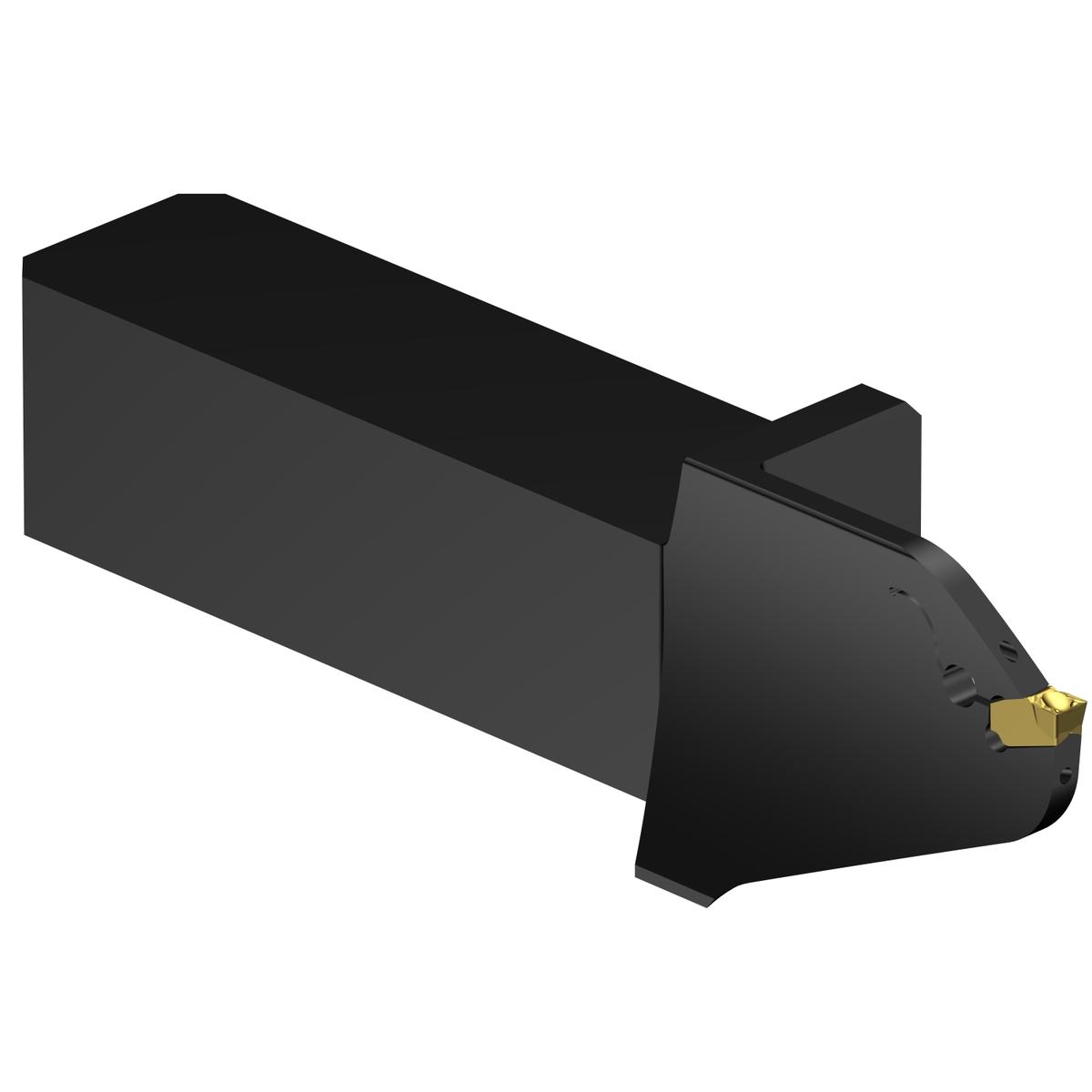

| Short Description | CoroCut® QF QS shank tool for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 2.43 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 5.2 Inch |
| Insert Compatibility | QFU-H-0400-03-TF |
| ANSI Code | QFU-LFH150C16-100B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 6.3 |
| Max. Axial Groove Outside Diameter (Metric) | 160 |
| Max. Cutting Depth (Decimal) | 1.5 |
| Max. Cutting Depth (Metric) | 38.1 |
| Max. Overhang (Decimal) | 1.88 |
| Max. Overhang (Metric) | 47.7 |
| Min. Axial Groove Inside Diameter (Decimal) | 3.94 |
| Min. Axial Groove Inside Diameter (Metric) | 100 |
| Min. Overhang (Decimal) | 1.88 |
| Min. Overhang (Metric) | 47.7 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.032 LB |
