Sandvik Coromant
7192521

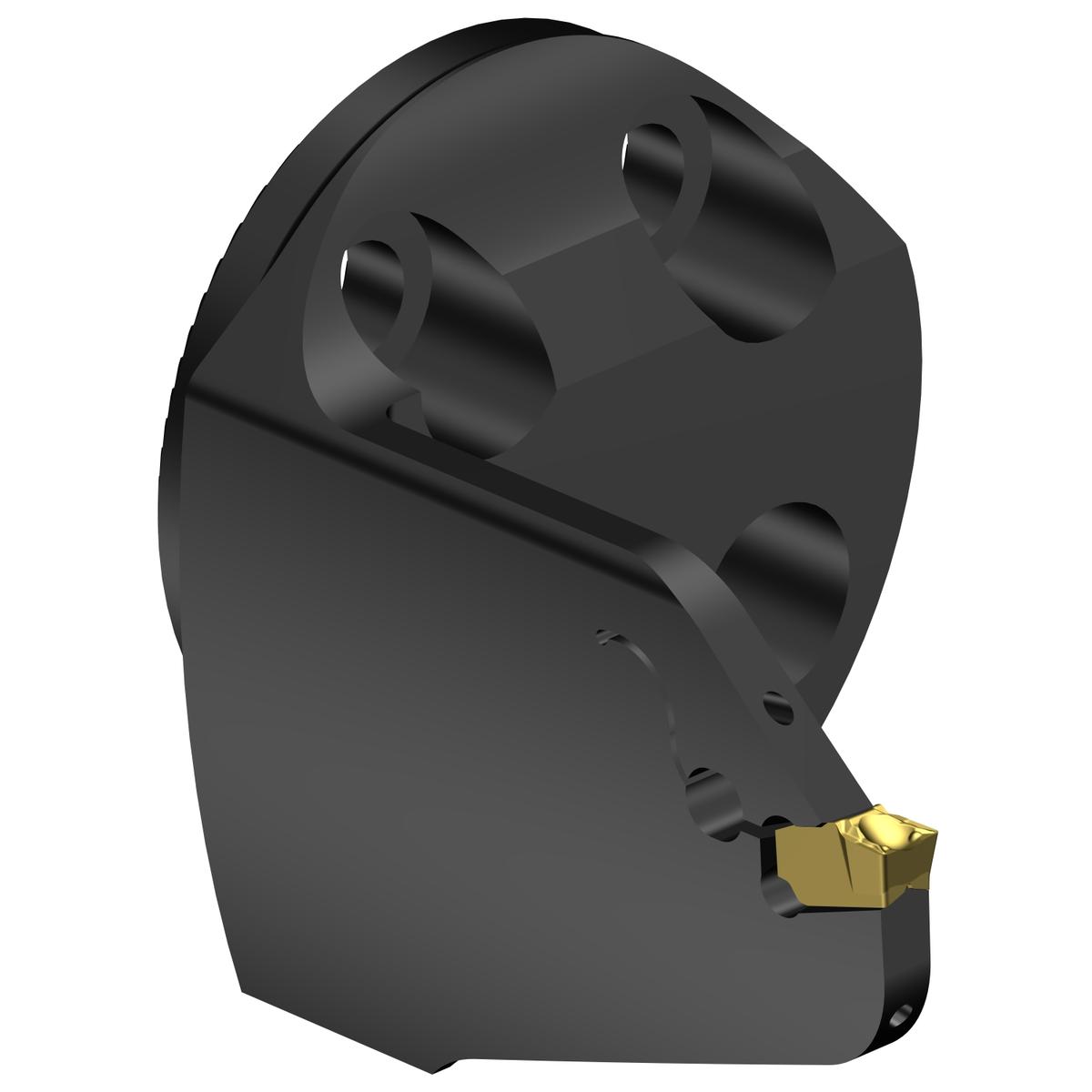

Sandvik Coromant 7192521
Specifications
| Center to Cutting Edge (Inch) | 0.89 |
|---|---|
| Coolant Fed | Yes |
| Size | 40 |
| Series | CoroCut QF |
| Center to Cutting Edge (Metric) | 22.5 |
| Short Description | CoroCutĀ® QF head for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 22.5 mm |
| Insert Style | QFT-H-0400-03-TF |
| ANSI Code | SL-QFT-LH38C40-150A |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Overall Height (Decimal) | 0.004 |
| Overall Height (Metric) | 0.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 2087 |
| Max. Axial Groove Outside Diameter (Decimal) | 12.21 |
| Max. Axial Groove Outside Diameter (Metric) | 310 |
| Max. Cutting Depth (Decimal) | 1.5 |
| Max. Cutting Depth (Metric) | 38 |
| Max. Hole Depth | 54 mm |
| Max. Hole Depth (Decimal) | 2.13 |
| Max. Hole Depth (Metric) | 54 |
| Max. Overhang (Decimal) | 2.13 |
| Max. Overhang (Metric) | 54 |
| Min. Axial Groove Inside Diameter (Decimal) | 5.91 |
| Min. Axial Groove Inside Diameter (Metric) | 150 |
| Min. Overhang (Decimal) | 2.13 |
| Min. Overhang (Metric) | 54 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.304 LB |
| ISO Code (packed) | SL-QFT-LH38C40-150A |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-QFT-LH38C40-150A |
| EAN Code | 7323221534820 |
