Sandvik Coromant
7193306

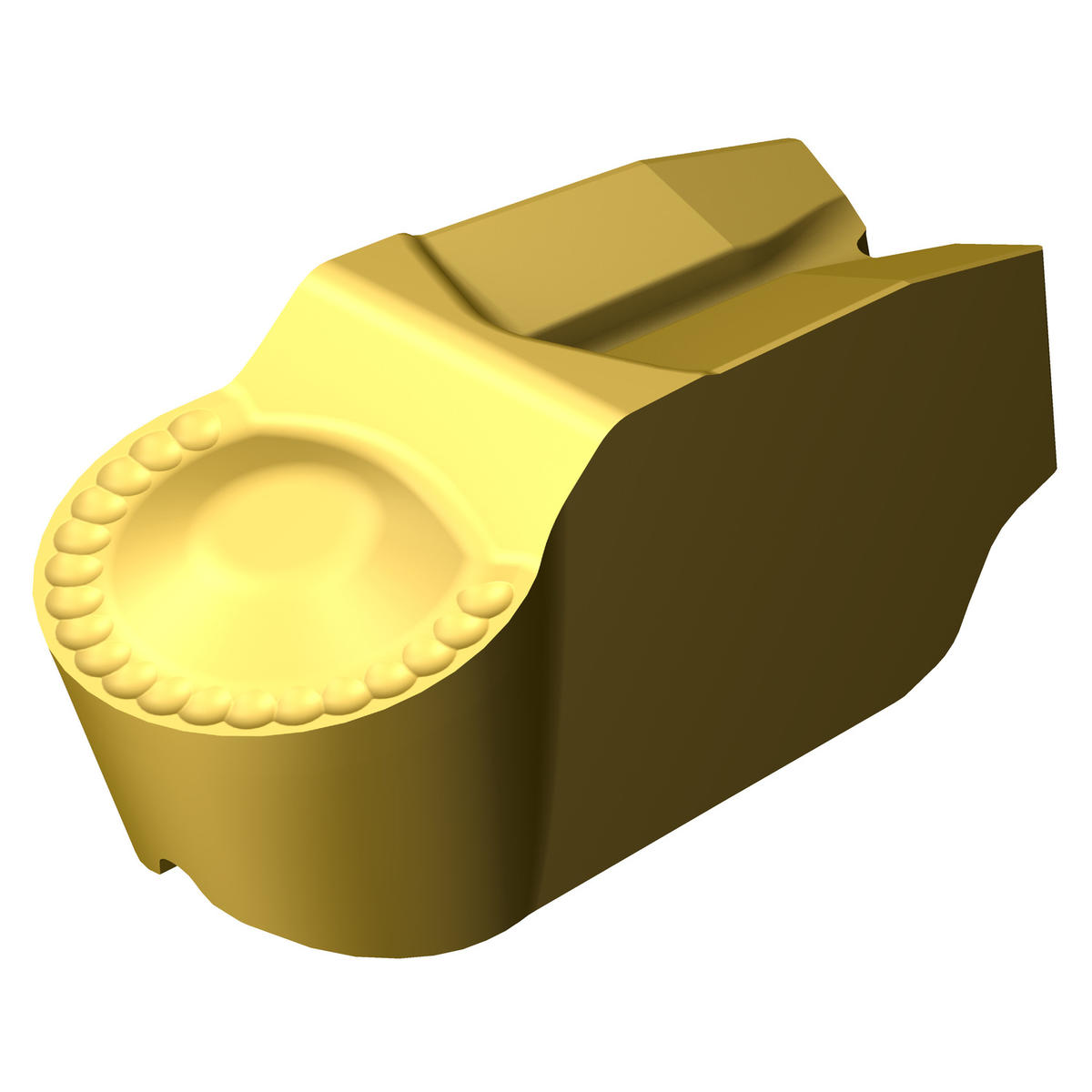

Sandvik Coromant 7193306
Specifications
| Size | G |
|---|---|
| Corner Radius (Inch) | 0.06 |
| Chip Breaker Type | RM |
| Coating/Finish | TiCrN+Al2O3+TiN |
| Material | WC or Cermet |
| Corner Radius (Metric) | 1.5 |
| Axial Groove Inside Diameter Min. (Decimal) | 1.18 |
| Axial Groove Inside Diameter Min. (Metric) | 30 |
| Base Item Number | 2087 |
| Cutting Width (Inch) | 0.12 |
| Max. Depth Of Cut (Decimal) | 0.05 |
| Max. Depth Of Cut (Metric) | 1.3 |
| Maximum Depth Of Cut (Inch) | 0.05 |
| Maximum Depth Of Cut (Metric) | 1.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.002 LB |
| Unit Of Measure | Metric |
| Short Description | CoroCutĀ® QF insert for face grooving |
| Series | CoroCut QF |
| Style | QFU |
| Grade | 1135 |
| Cutting Width | 3 mm |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3 |
| ANSI Code | QFU-G-0300-RM 1135 |
| ISO Code | QFU-G-0300-RM 1135 |
| Insert Seat Size Code | QFU-G |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.001969 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| ISO Material Classification | PMKS |
| Country of Origin | Sweden |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | QFU |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | QFU-G-0300-RM1135 |
| Insert Size | G |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QFU-G-0300-RM 1135 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323221539436 |
