Sandvik Coromant
7216893
Sandvik Coromant 7216893
Specifications
| Diameter (Metric) | 39 |
|---|---|
| Shank Diameter (Metric) | 40 |
| Overall Length (Metric) | 43 |
| Material | Steel |
| Series | CoroBore BR10 |
| Diameter (Inch) | 1.54 |
| Unit Of Measure | Metric |

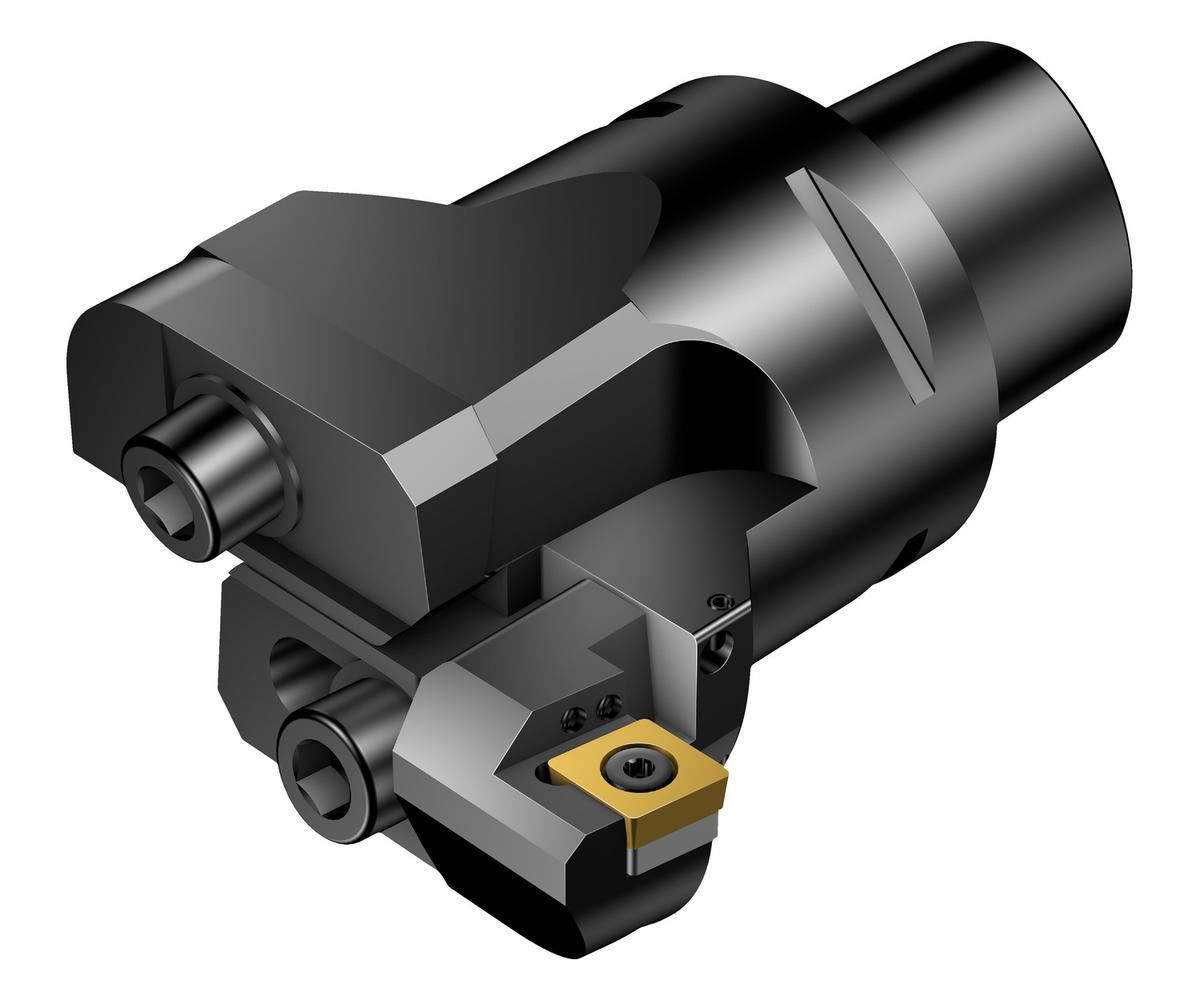

| Short Description | CoroBore® BR10 rough boring tool for back-boring |
| Coolant Through | Yes |
| ANSI Code | BR10-76CC09F-C4 |
| Tool Cutting Edge Angle | 90 degrees |
| Country of Origin | Netherlands |
| Connection Size | C4 |
| Body Length (Decimal) | 1.69 |
| Body Length (Metric) | 43 |
| Number Of Inserts | 1 |
| Clamping Type Code | Screw/Clamp |
| Standard Number | ISO26623-1 |
| Torque (ft lbf) | 2.213 |
| Torque (NM) | 3 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Base Item Number | 2091 |
| Body Length (Inch) | 1.69 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 0.24 |
| Max. Adjustment Limit (Metric) | 6 |
| Max. Cutting Diameter | 76 mm |
| Min. Cutting Diameter | 64 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.235 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | BR10-76CC09F-C4 |
| Length Packed Product Metric | 267 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | BR10-76CC09F-C4 |
| Length Packed Product Imperial | 10.512 inch |
| EAN Code | 7323221655327 |
