Sandvik Coromant
7231364
Sandvik Coromant 7231364
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 21.52 |
| Corner Radius (Inch) | 0.03 |
| Style | DCMT |
| Thickness (Inch) | 0.09 |

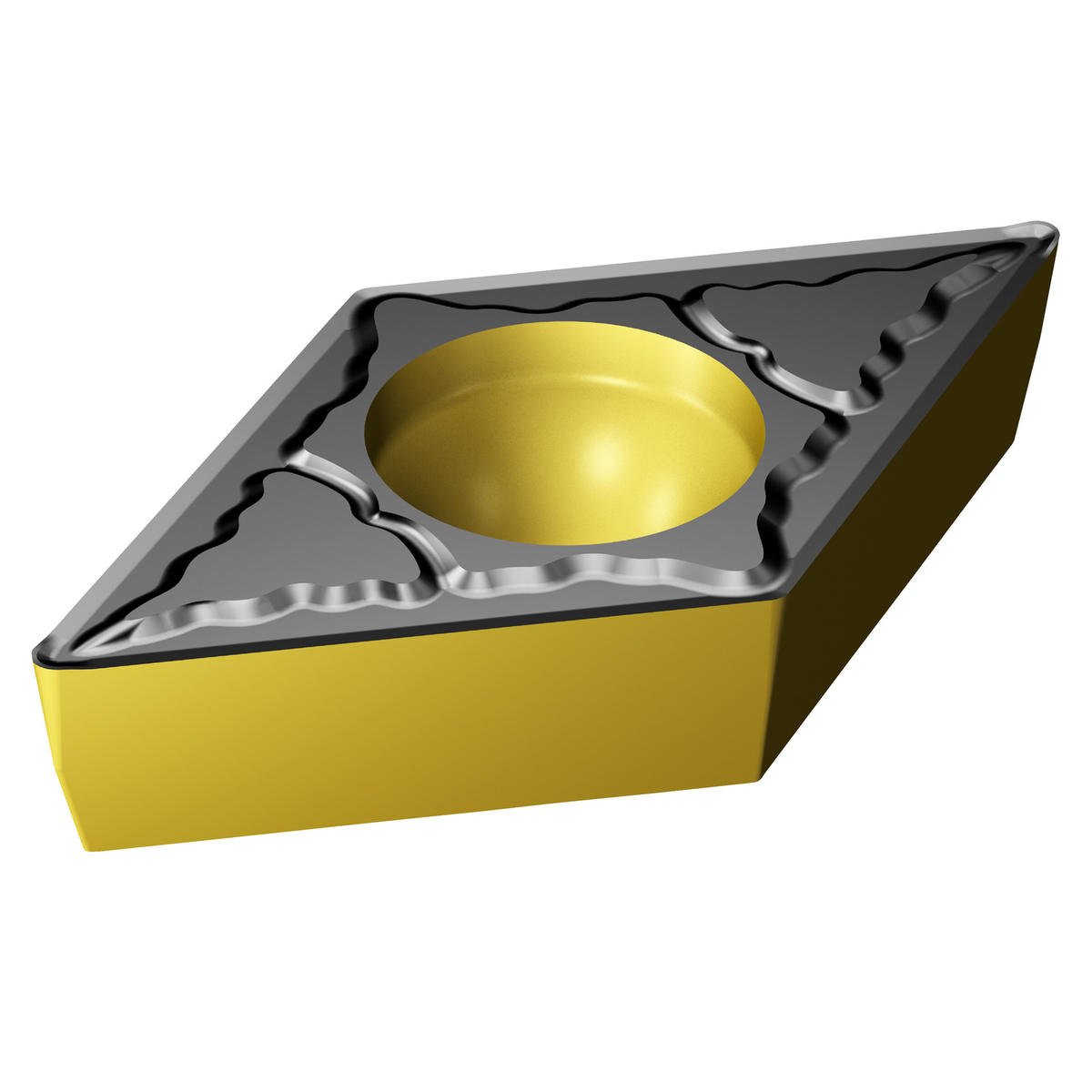

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 2220 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Clearance Angle Major | 7 degrees |
| Length (Decimal) | 0.27 |
| Length (Metric) | 6.95 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | MM |
| ANSI Code | DCMT 2(1.5)2-MM 2220 |
| ISO Code | DCMT 07 02 08-MM 2220 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 1053 |
| Length | 6.95 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | DCMT |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | DCMT070208-MM2220 |
| Insert Size | 21.52 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DCMT 07 02 08-MM 2220 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323221713645 |
