Sandvik Coromant
7247385
Sandvik Coromant 7247385
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 3.18 |
| Corner Radius (Metric) | 4.76 |
| Material | Sialon Ceramic |
| Size | 32 |
| Corner Radius (Inch) | 0.19 |
| Style | RPG |
| Thickness (Inch) | 0.13 |

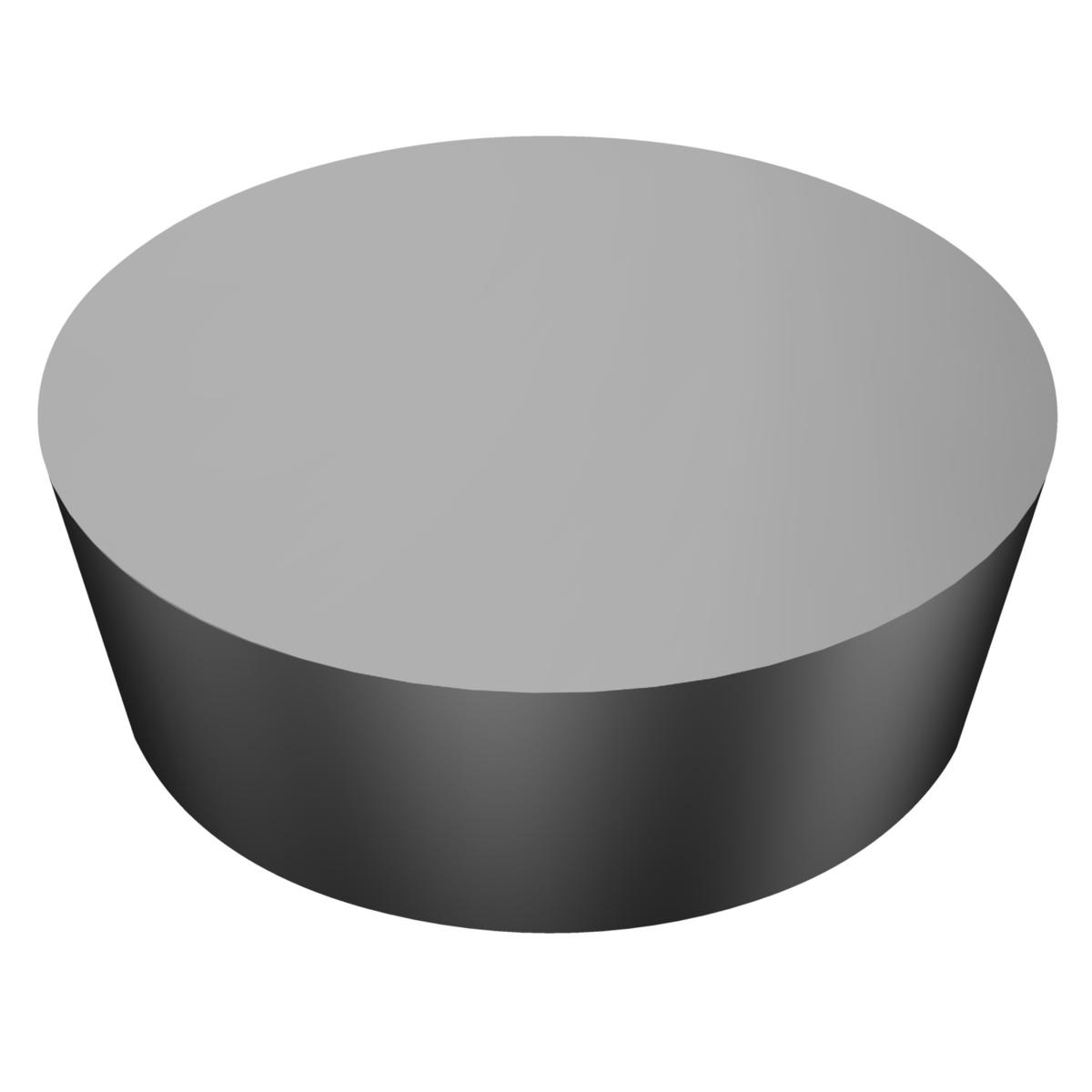

| Short Description | T-Max® insert for turning |
| Grade | 6160 |
| Unit Of Measure | Imperial |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 11 degrees |
| Shape | Round |
| Country of Origin | Japan |
| Series | T-Max |
| Chip Breaker Type | E |
| ANSI Code | RPG32A 6160 |
| ISO Code | RPGN090300E 6160 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Ceramic |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | S |
| Base Item Number | 1026 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.002 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | RPG |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | RPGN090300E6160 |
| Insert Size | 32 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RPGN090300E 6160 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323221787646 |
