Sandvik Coromant
7251707

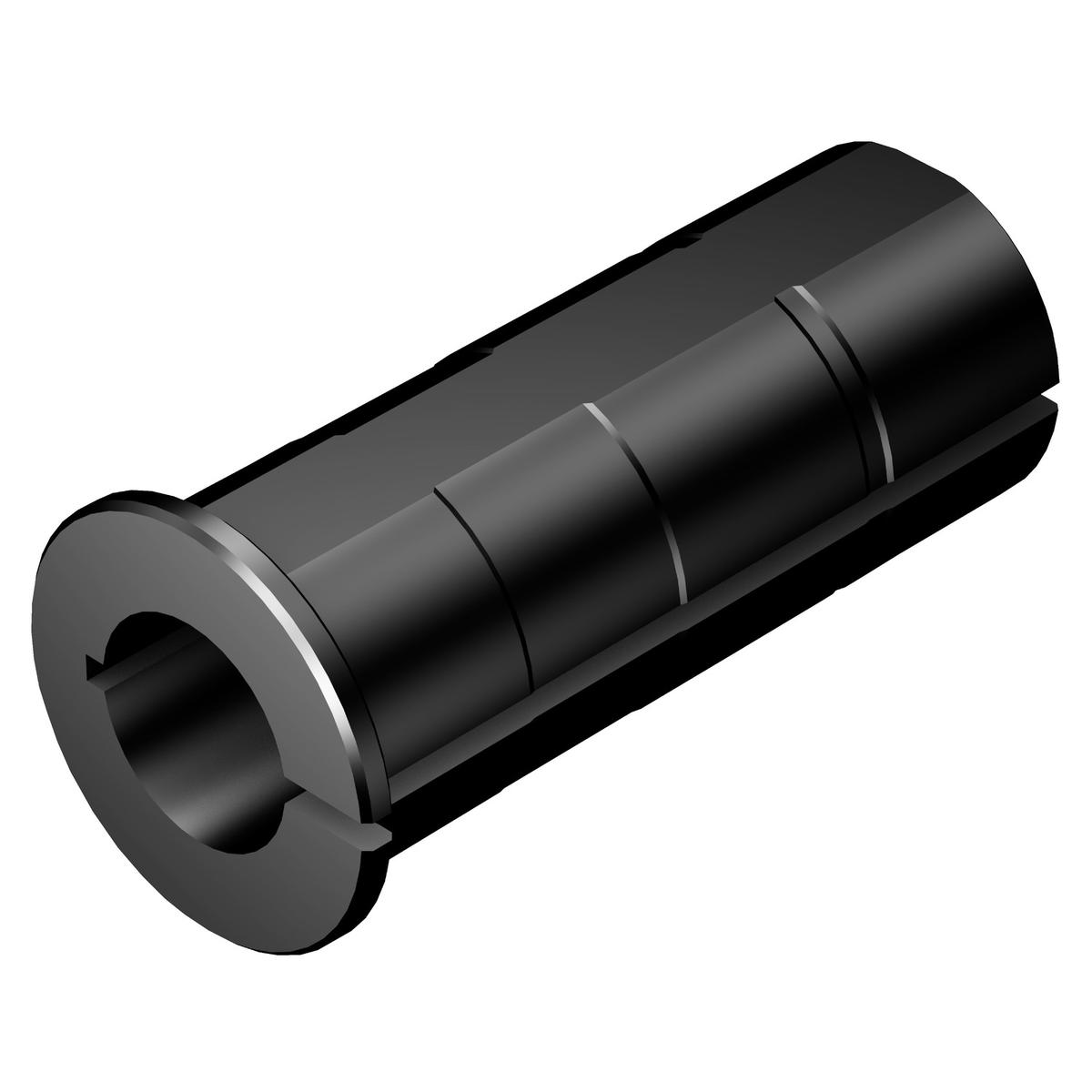

Sandvik Coromant 7251707
Specifications
| Type | Cylindrical Sleeve |
|---|---|
| Inside Diameter (Metric) | 31.75 |
| Overall Length (Inch) | 5 |
| Inside Diameter (Inch) | 1.25 |
| Overall Length (Metric) | 127 |
| Outside Diameter (Metric) | 38.1 |
| Outside Diameter (Inch) | 1.5 |
| Short Description | Cylindrical sleeve |
| Unit Of Measure | Imperial |
| Inside Diameter | 1.25 Inch |
| Outside Diameter | 1.5 Inch |
| Head Diameter | 1.89 Inch |
| Coolant Through | Yes |
| Head Diameter (Decimal) | 1.89 |
| Head Diameter (Metric) | 48.1 |
| ANSI Code | 132L-A24-A20 |
| Shank Diameter (Decimal) | 1.5 |
| Shank Type | Cylindrical |
| Body Length (Decimal) | 0.20 |
| Body Length (Metric) | 5 |
| Clamping Length (Decimal) | 5 |
| Clamping Length (Metric) | 127 |
| Functional Length (Decimal) | 0.2 |
| Functional Length (Metric) | 5 |
| Body Half Taper Angle | 0 degrees |
| Coolant Pressure (Bar) | 150 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 1: Axial Concentric Exit |
| Location Aid Property | No |
| Sealing Property | No |
| Country of Origin | Sweden |
| Base Item Number | 2099 |
| Body Length (Inch) | 0.2 |
| Coolant Pressure (lbf/in2) | 2175.57 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.728 LB |
