Sandvik Coromant
7254602

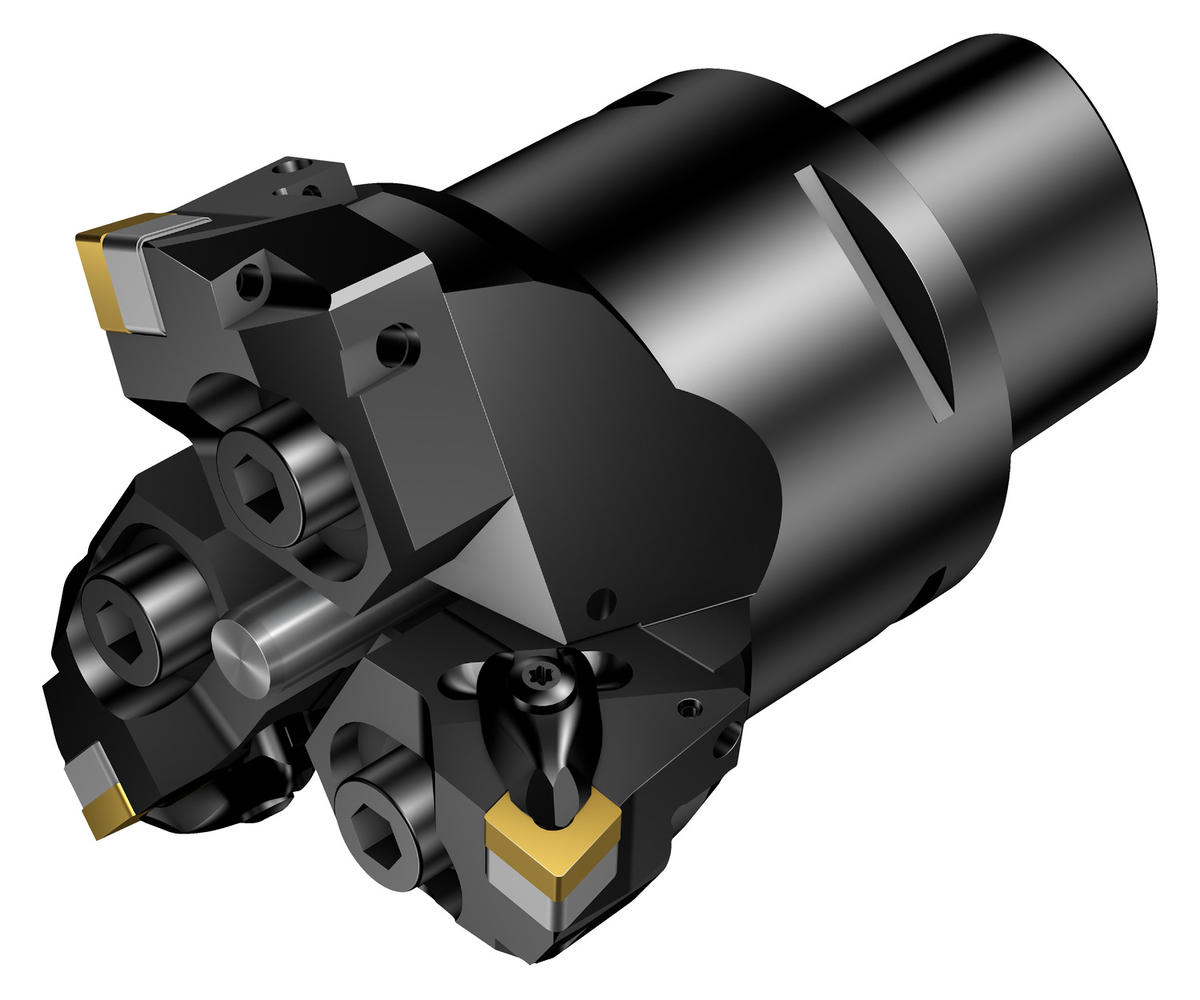

Sandvik Coromant 7254602
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Overall Length (Metric) | 119 |
| Material | Steel |
| Series | CoroBore BR30 |
| Unit Of Measure | Metric |
| Short Description | CoroBore® BR30 three-edge rough boring tool |
| Coolant Through | Yes |
| ANSI Code | BR30-191CN16F-C8 |
| Tool Cutting Edge Angle | 90 degrees |
| Country of Origin | Netherlands |
| Connection Size | C8 |
| Number Of Inserts | 3 |
| Clamping Type Code | Clamp |
| Standard Number | ISO26623-1 |
| Torque (ft lbf) | 4.72 |
| Torque (NM) | 6.4 |
| Coolant Pressure (Bar) | 70 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Base Item Number | 2090 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Max. Adjustment Limit (Decimal) | 0.49 |
| Max. Adjustment Limit (Metric) | 12.5 |
| Max. Cutting Diameter | 191 mm |
| Min. Cutting Diameter | 166 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 16.38 LB |
| Height Packed Product Metric | 205 mm |
| Height Packed Product Imperial | 8.071 inch |
| ISO Code (packed) | BR30-191CN16F-C8 |
| Length Packed Product Metric | 288 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | BR30-191CN16F-C8 |
| Length Packed Product Imperial | 11.339 inch |
| EAN Code | 7323221822330 |
