Sandvik Coromant
7295616
Sandvik Coromant 7295616
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 4 |
| Corner Radius (Inch) | 0.16 |
| Coating/Finish | AlTiCrN |
| Thickness (Metric) | 4.95 |
| Thickness (Inch) | 0.2 |

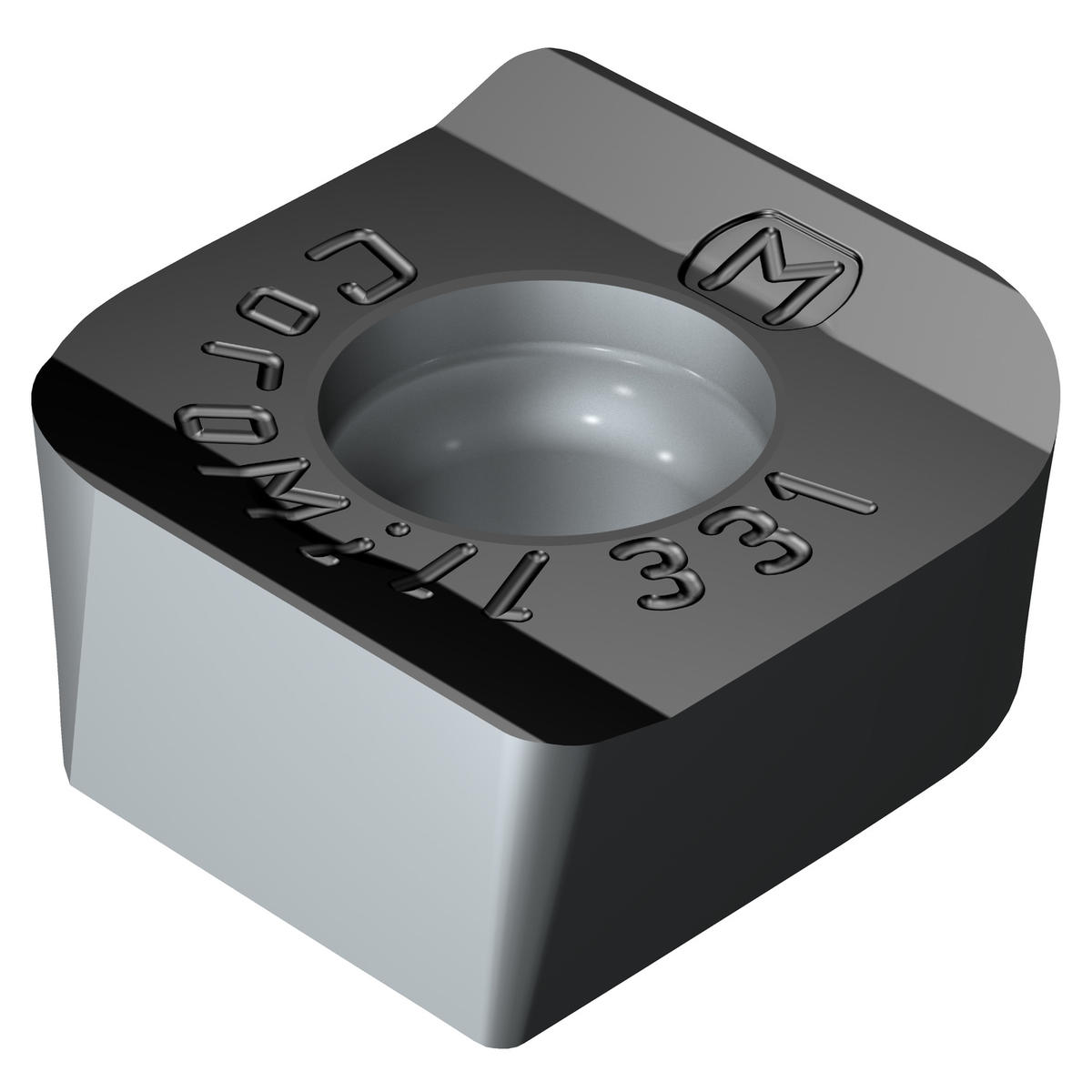

| Short Description | CoroMill® 331 insert for side and facemilling |
| Shape | Rectangle |
| Style | R331 |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.45 |
| Country of Origin | Sweden |
| Series | CoroMill 331 |
| Size | 11 |
| Grade | 1130 |
| Thickness | 4.95 mm |
| Chip Breaker Type | WM |
| Length (Decimal) | 0.42 |
| ANSI Code | R331.1A-11 50 40H-WM1130 |
| ISO Code | R331.1A-11 50 40H-WM1130 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.6 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.06 |
| Wiper Edge Length (Metric) | 1.4 |
| Major Cutting Edge Angle | 90 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Application | Milling, General |
| ISO Material Classification | PMNSH |
| Width (Metric) | 11.5 |
| Length (Metric) | 10.7 |
| Base Item Number | 1004 |
| Insert Size | 11 |
| Length | 10.7 mm |
| Max. Depth Of Cut (Decimal) | 0.42 |
| Max. Depth Of Cut (Metric) | 10.7 |
| Maximum Depth Of Cut (Inch) | 0.42 |
| Maximum Depth Of Cut (Metric) | 10.7 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Width | 11.5 mm |
| Height Packed Product Metric | 11 mm |
| Insert Style | R331 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R331.1A-115040H-WM1130 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R331.1A-11 50 40H-WM1130 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323221989873 |
