Sandvik Coromant
7362183

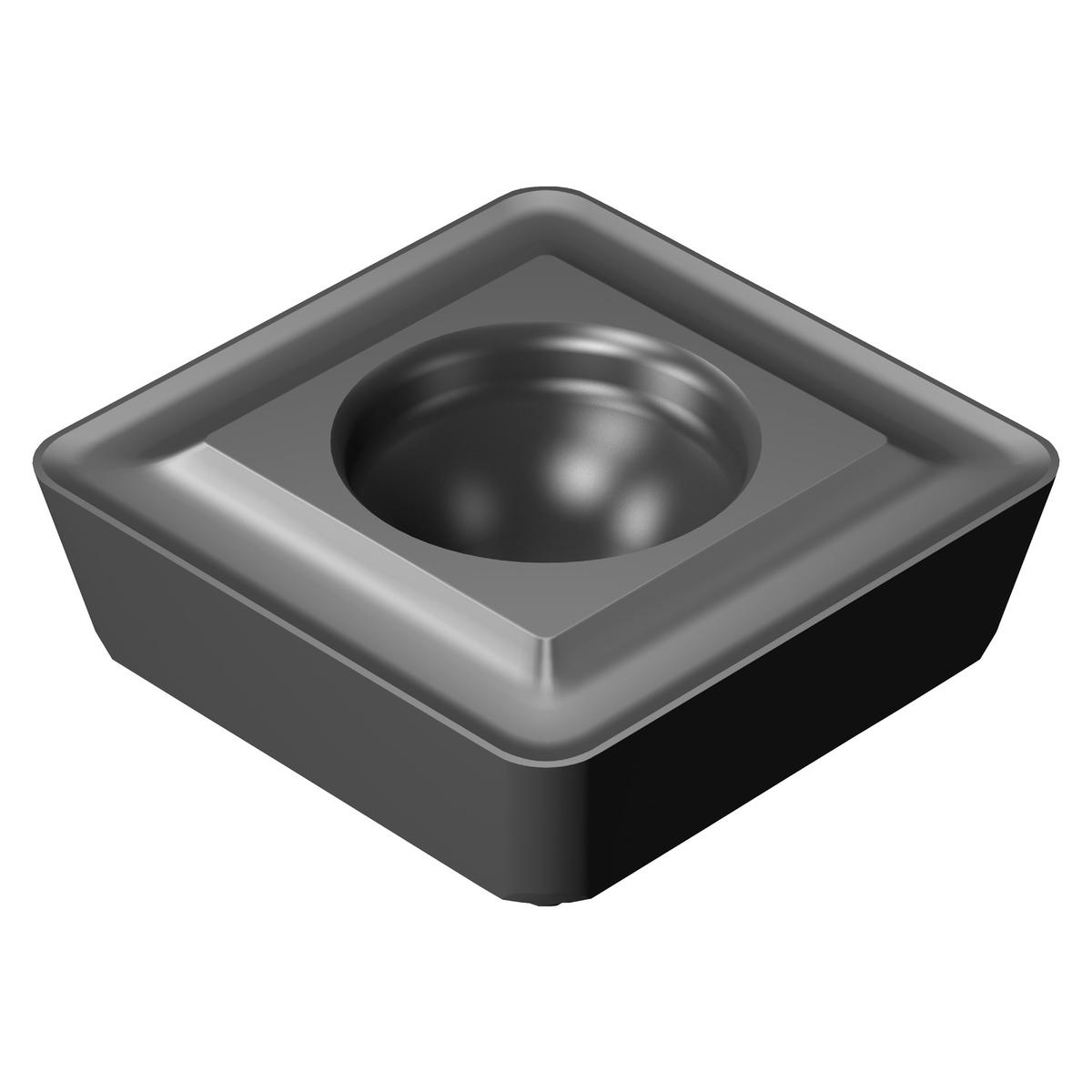

Sandvik Coromant 7362183
Specifications
| Corner Radius (Metric) | 0.7 |
|---|---|
| Type | Asymmetrical Point |
| Series | CoroDrill 880 |
| Coating/Finish | Sp3 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.03 |
| Chip Breaker Type | MS |
| Unit Of Measure | Metric |
| Style | 880 |
| Thickness | 2.8 mm |
| Grade | N124 |
| Thickness (Metric) | 2.8 |
| Short Description | CoroDrill® 880 insert for drilling |
| Size | 403 |
| Shape | Square |
| Inscribed Circle Diameter | 7.4 mm |
| Corner Radius | 0.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.29 |
| Inscribed Circle Diameter (Metric) | 7.4 |
| Thickness (Decimal) | 0.11 |
| ANSI Code | 880-04 03 W07H-P-MS N124 |
| ISO Code | 880-04 03 W07H-P-MS N124 |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | DCT |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 15 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | Yes |
| Insert Usage Code | Peripheral |
| Application | Drilling, Indexable |
| ISO Material Classification | N |
| Country of Origin | Sweden |
| Base Item Number | 2013 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 880 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 880-0403W07H-P-MSN124 |
| Insert Size | 0403 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-04 03 W07H-P-MS N124 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323222182525 |
