Sandvik Coromant
7370521
Sandvik Coromant 7370521
Specifications
| Overall Length (Inch) | 2 |
|---|---|
| Overall Length (Metric) | 50.80 |
| Cutting Diameter (Metric) | 103.60 |

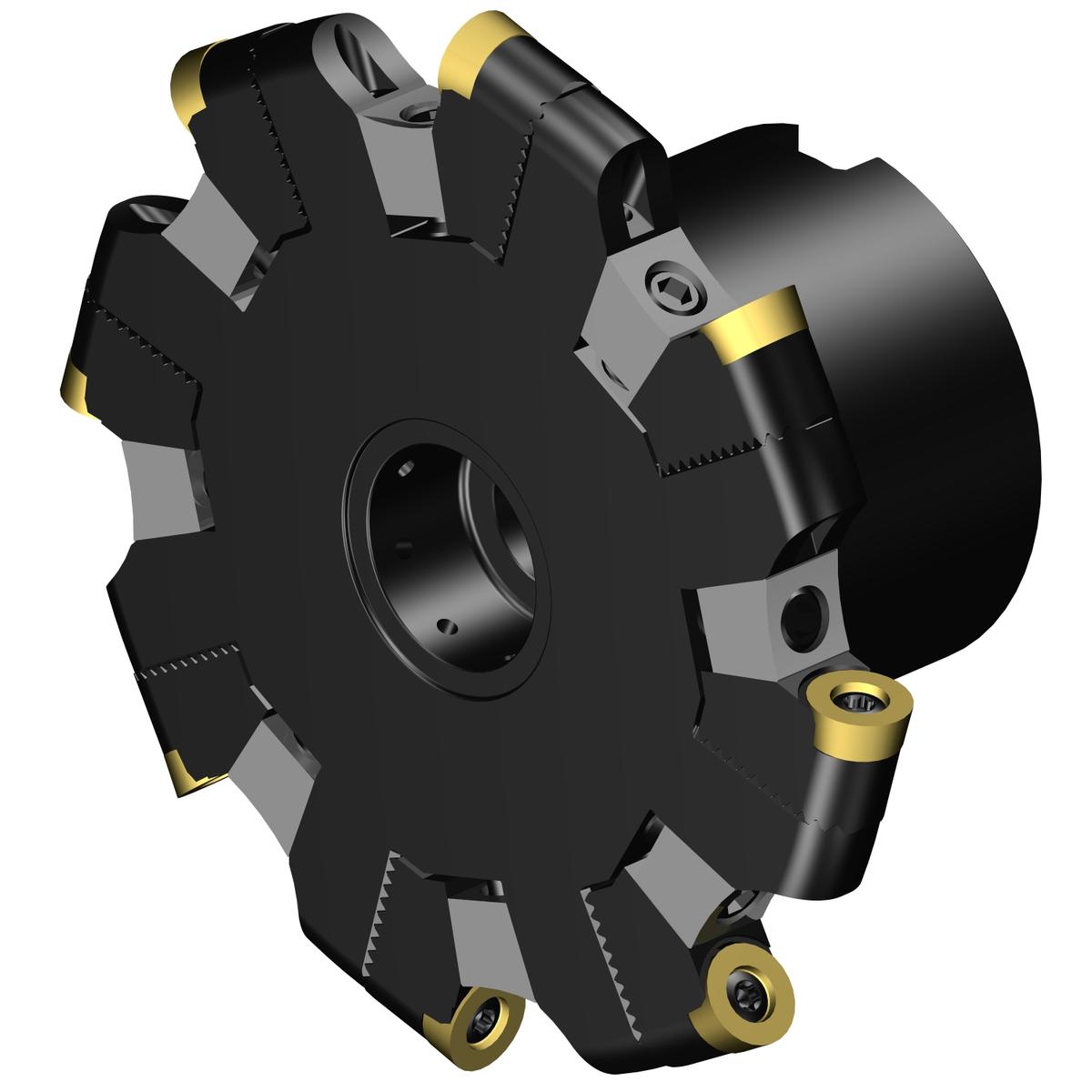

| Short Description | CoroMill® 331 adjustable full side and face disc milling cutter |
| Number Of Inserts | 8 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Hole Diameter | 1 Inch |
| Max. Cutting Depth (Metric) | 23.50 |
| Torque (NM) | 3 |
| Coolant Through | Yes |
| Cutting Edge Count | 8 |
| Standard Letter | A |
| Standard Number | ISO6462 |
| ANSI Code | R331.32C-103R25EMQ |
| Coolant Pressure (Bar) | 80 |
| Height Packed Product Metric | 110 mm |
| Height Packed Product Imperial | 4.331 inch |
| ISO Code (packed) | R331.32C-103R25EMQ |
| Type | Slot |
| Usable Length (Metric) | 26 |
| Direction Of Hand | Right |
| Cutting Width (Decimal) | 0.38 |
| Cutting Diameter (Decimal) | 4.08 |
| Length Packed Product Metric | 210 mm |
| Max. Cutting Depth | 0.93 Inch |
| Series | CoroMill 331 |
| Usable Length (Decimal) | 1.02 |
| Cutting Diameter | 4.08 Inch |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 9.53 |
| Hole Diameter (Decimal) | 1 |
| Cutting Width | 0.38 Inch |
| ISO Code (unpacked) | R331.32C-103R25EMQ |
| Hub Diameter (Metric) | 51 |
| Max. Rotational Speed | 15900 1/min |
| Torque (ft lbf) | 2.213 |
| Max. Cutting Depth (Decimal) | 0.93 |
| Hole Diameter (Metric) | 25.40 |
| Length Packed Product Imperial | 8.268 inch |
| Hub Diameter (Decimal) | 2.01 |
| EAN Code | 7323222221682 |
