Sandvik Coromant
7413926

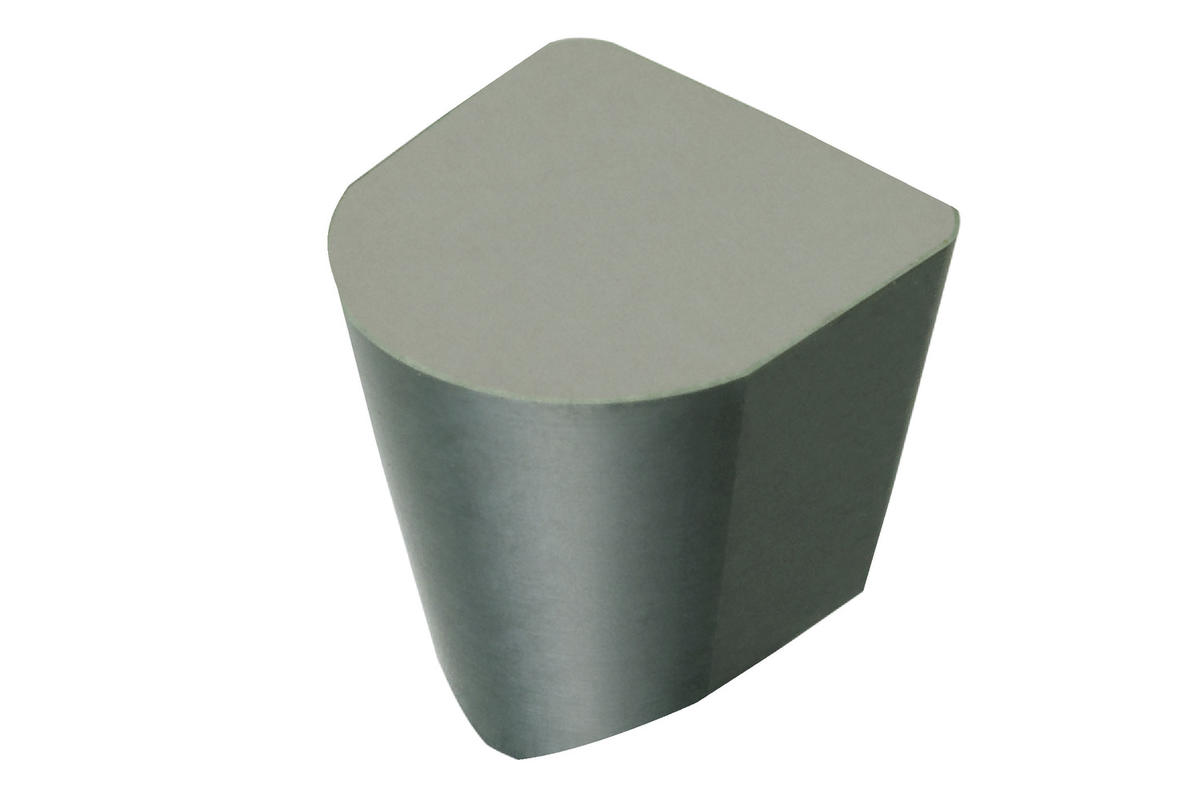

Sandvik Coromant 7413926
Specifications
| Size | 907 |
|---|---|
| Chip Breaker Type | E |
| Coating/Finish | Uncoated |
| Material | Sialon Ceramic |
| Base Item Number | 1026 |
| Cutting Width (Inch) | 0.38 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.006 LB |
| Unit Of Measure | Metric |
| Short Description | T-Max® insert for grooving |
| Series | T-Max |
| Style | CSGX |
| Grade | 6160 |
| Cutting Width | 9.53 mm |
| Cutting Width (Decimal) | 0.38 |
| Cutting Width (Metric) | 9.525 |
| ANSI Code | CSGX352A 6160 |
| ISO Code | CSGX090708E 6160 |
| Insert Seat Size Code | 9 |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Rake Angle | 0 degrees |
| Substrate Type | Ceramic |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 11 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.03 |
| Corner Radius Left (Metric) | 0.79 |
| Corner Radius Right (Decimal) | 0.03 |
| Corner Radius Right (Metric) | 0.79 |
| Cutting Width Lower Tolerance (Decimal) | -0.000984 |
| Cutting Width Lower Tolerance (Metric) | -0.03 |
| Cutting Width Upper Tolerance (Decimal) | 0.000984 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | S |
| Country of Origin | Japan |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | CSGX |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | CSGX090708E6160 |
| Insert Size | 0907 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CSGX090708E 6160 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323222387067 |
