Sandvik Coromant
7424650
Sandvik Coromant 7424650
Specifications
| Shank Diameter (Metric) | 32 |
|---|---|
| Overall Length (Inch) | 4.53 |
| Overall Length (Metric) | 115 |
| Cutting Diameter (Metric) | 80 |

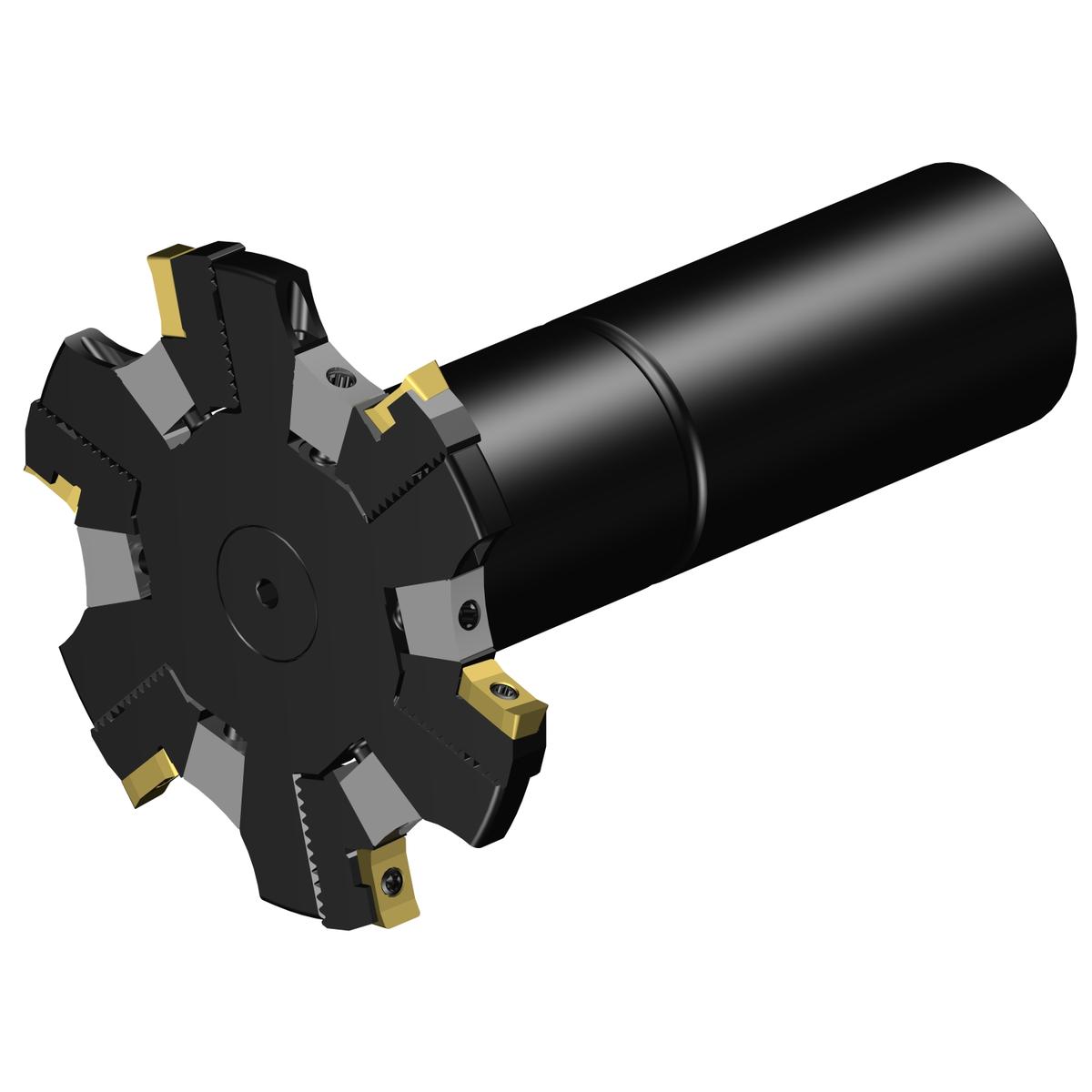

| Short Description | CoroMill® 331 adjustable full side and face disc milling cutter |
| Number Of Inserts | 6 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Hole Diameter | 32 mm |
| Max. Cutting Depth (Metric) | 23 |
| Shank Diameter | 32 mm |
| Shank Type | Cylindrical |
| Torque (NM) | 0.8 |
| Coolant Through | Yes |
| Cutting Edge Count | 3 |
| ANSI Code | R331.32C-080A32CM |
| Min. Overall Length (Decimal) | 4.53 |
| Coolant Pressure (Bar) | 80 |
| Max. Cutting Width (Metric) | 8 |
| Min. Cutting Width (Decimal) | 0.24 |
| Min. Cutting Width (Metric) | 6 |
| Min. Overall Length (Metric) | 115 |
| Height Packed Product Metric | 110 mm |
| Height Packed Product Imperial | 4.331 inch |
| ISO Code (packed) | R331.32C-080A32CM |
| Type | Slot |
| Direction Of Hand | Right |
| Cutting Width (Decimal) | 0.24 |
| Cutting Diameter (Decimal) | 3.15 |
| Length Packed Product Metric | 212 mm |
| Max. Cutting Depth | 23 mm |
| Series | CoroMill 331 |
| Cutting Diameter | 80 mm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 6 |
| Hole Diameter (Decimal) | 1.26 |
| Max. Cutting Width (Decimal) | 0.32 |
| Cutting Width | 6 mm |
| ISO Code (unpacked) | R331.32C-080A32CM |
| Max. Rotational Speed | 19300 1/min |
| Torque (ft lbf) | 0.59 |
| Max. Cutting Depth (Decimal) | 0.91 |
| Hole Diameter (Metric) | 32 |
| Length Packed Product Imperial | 8.346 inch |
| EAN Code | 7323222436017 |
