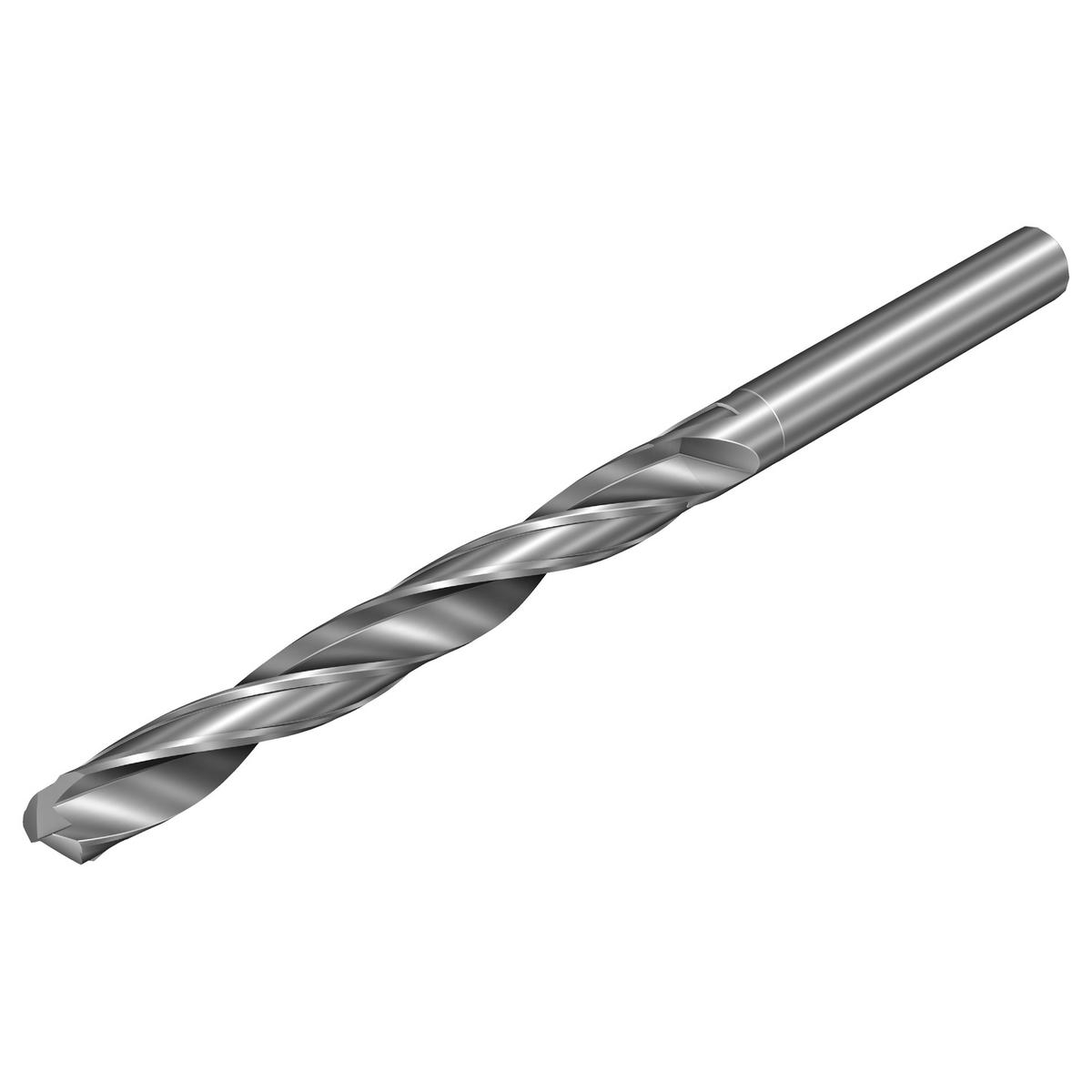

Sandvik Coromant
7516196
Sandvik Coromant 7516196
Specifications
| Coolant Fed | No |
|---|---|
| Coating/Finish | Uncoated |
| Overall Length (Metric) | 100 |
| Diameter (Inch) | 0.16 |
| Material | Solid Carbide |
| Diameter (Metric) | 4.1 |
| Type | Heavy Duty |
| Overall Length (Inch) | 3.94 |
| Short Description | CoroDrill® 452 solid carbide drill |
| Unit Of Measure | Metric |
| Point Angle | 135 degrees |
| Connection Diameter (Decimal) | 0.16 |
| Connection Diameter (Metric) | 4.1 |
| Connection Diameter Tolerance | H8 |
| Usable Length (Decimal) | 1.77 |
| Usable Length (Metric) | 45 |
| Diameter | 4.1 mm |
| Flute Length | 50 mm |
| Overall Length | 100 mm |
| Shank Type | Cylindrical |
| Standard | COROMANT |
| Series | CoroDrill 452 |
| Country of Origin | United States |
| ANSI Code | 452.1-0410-045A0-CM H10F |
| Coating Process Type | UNCOAT |
| Depth x Diameter Ratio | 11 x D |
| Grade | H10F |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.85 |
| Achievable Hole Tolerance | K8 |
| Functional Length (Decimal) | 3.9 |
| Functional Length (Metric) | 99.15 |
| Chip Flute Length (Decimal) | 1.97 |
| Chip Flute Length (Metric) | 50 |
| ISO Material Classification | MNSO |
| Usable Length Diameter Ratio | 10.976 |
| Coolant Entry Style Code | 0: Without Coolant |
| Base Item Number | 2026 |
| EAN Code | 7323223508164 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 50000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.031 LB |
| Height Packed Product Metric | 17 mm |
| Height Packed Product Imperial | 0.669 inch |
| ISO Code (packed) | 452.1-0410-045A0-CMH10F |
| Length Packed Product Metric | 115 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 452.1-0410-045A0-CM H10F |
| Length Packed Product Imperial | 4.528 inch |
| Substrate Type | Carbide |
