Sandvik Coromant
7548825

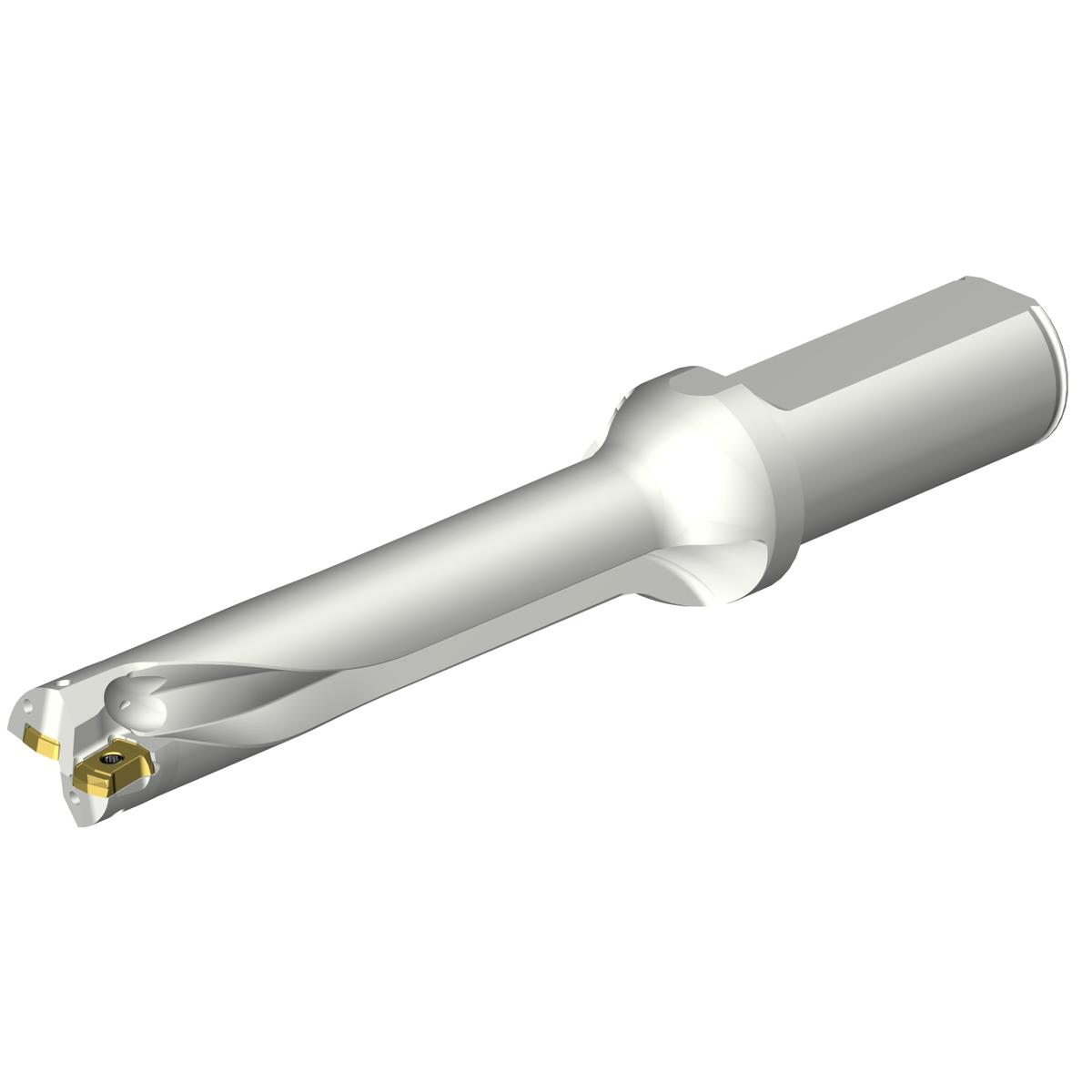

Sandvik Coromant 7548825
Specifications
| Cutting Diameter (Metric) | 20 |
|---|---|
| Shank Diameter (Metric) | 25 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 0.79 |
| Shank Diameter (Inch) | 0.98 |
| Depth x Diameter Ratio | 5 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 20 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D2000L25-05 |
| Overall Length (Decimal) | 7.13 |
| Overall Length (Metric) | 181 |
| Functional Length (Decimal) | 4.9 |
| Point Length (Decimal) | 0.02 |
| Point Length (Metric) | 0.56 |
| Functional Length (Metric) | 124.44 |
| Body Length (Decimal) | 4.06 |
| Body Length (Metric) | 103 |
| Usable Length (Decimal) | 3.96 |
| Usable Length (Metric) | 100.56 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.33 |
| Usable Length Diameter Ratio | 5.028 |
| Torque | 0.9 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Body Length (Inch) | 4.06 |
| Max. Adjustment Limit (Decimal) | 0.03 |
| Max. Adjustment Limit (Metric) | 0.82 |
| Max. Rotational Speed | 11000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.862 LB |
| Height Packed Product Metric | 47 mm |
| Height Packed Product Imperial | 1.85 inch |
| ISO Code (packed) | DS20-D2000L25-05 |
| Length Packed Product Metric | 188 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D2000L25-05 |
| Length Packed Product Imperial | 7.402 inch |
| EAN Code | 7323223642974 |
