Sandvik Coromant
7548855

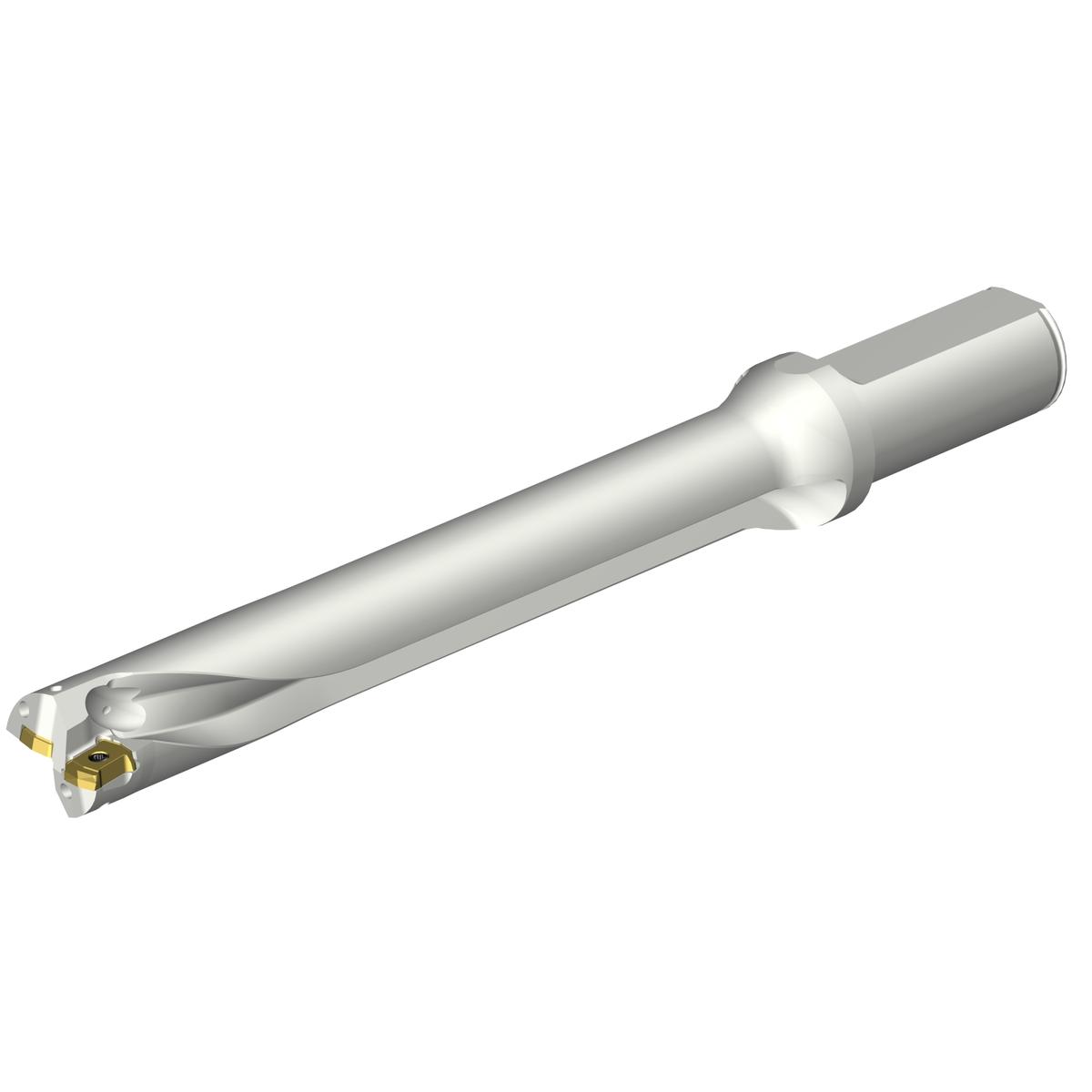

Sandvik Coromant 7548855
Specifications
| Cutting Diameter (Metric) | 24 |
|---|---|
| Shank Diameter (Metric) | 25 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 0.95 |
| Shank Diameter (Inch) | 0.98 |
| Depth x Diameter Ratio | 7 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 24 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 25 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D2400L25-07 |
| Overall Length (Decimal) | 9.84 |
| Overall Length (Metric) | 250 |
| Functional Length (Decimal) | 7.61 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.67 |
| Functional Length (Metric) | 193.34 |
| Body Length (Decimal) | 6.77 |
| Body Length (Metric) | 172 |
| Usable Length (Decimal) | 6.64 |
| Usable Length (Metric) | 168.67 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.5 |
| Usable Length Diameter Ratio | 7.028 |
| Torque | 0.9 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Body Length (Inch) | 6.77 |
| Max. Adjustment Limit (Decimal) | 0.04 |
| Max. Adjustment Limit (Metric) | 1.1 |
| Max. Rotational Speed | 5000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.261 LB |
| Height Packed Product Metric | 47 mm |
| Height Packed Product Imperial | 1.85 inch |
| ISO Code (packed) | DS20-D2400L25-07 |
| Length Packed Product Metric | 255 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D2400L25-07 |
| Length Packed Product Imperial | 10.039 inch |
| EAN Code | 7323223643278 |
