Sandvik Coromant
7548882

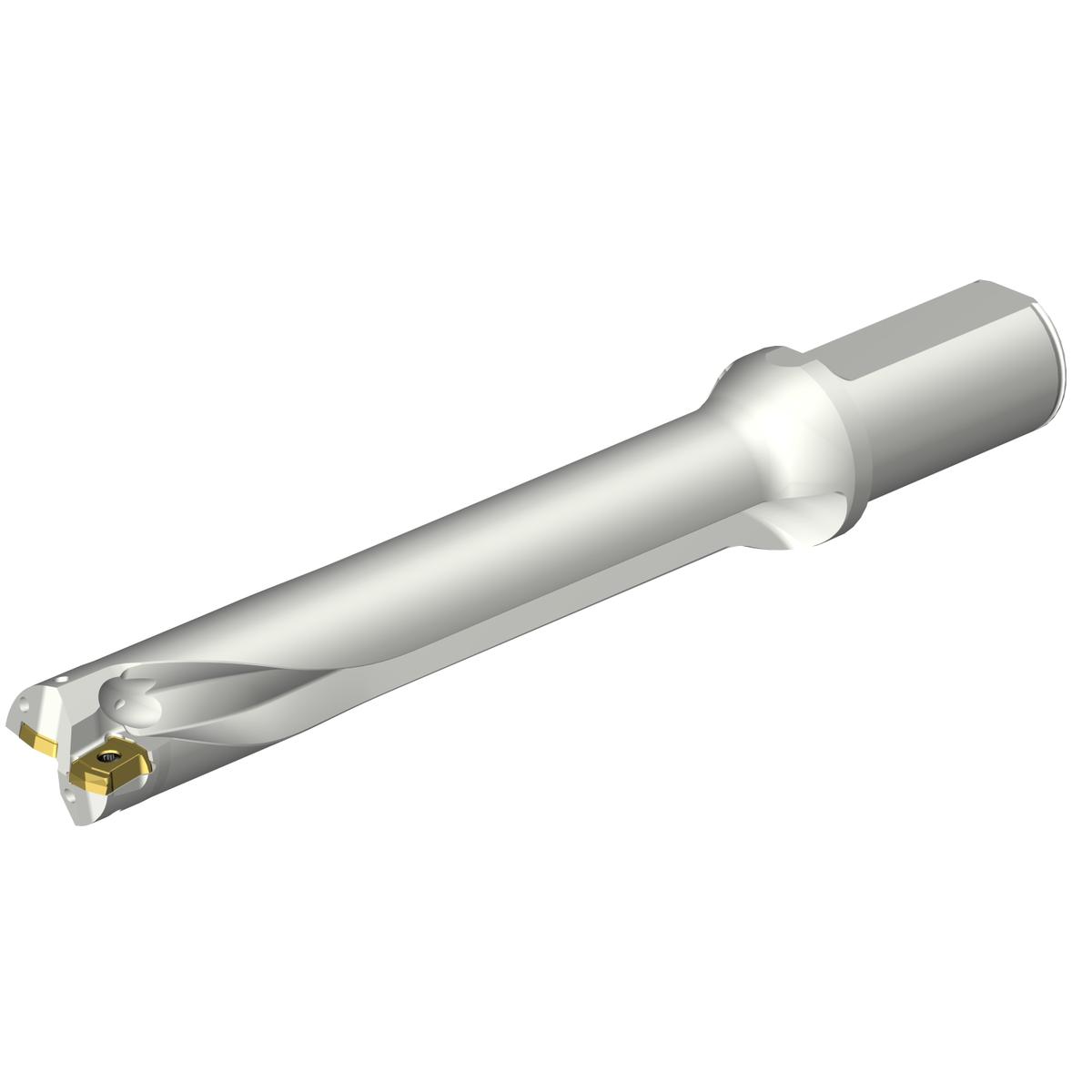

Sandvik Coromant 7548882
Specifications
| Cutting Diameter (Metric) | 28.58 |
|---|---|
| Shank Diameter (Metric) | 31.75 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 1.13 |
| Shank Diameter (Inch) | 1.25 |
| Depth x Diameter Ratio | 6 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Imperial |
| Cutting Diameter | 1.13 Inch |
| Shank Type | Cylindrical |
| Shank Diameter | 1.25 Inch |
| Coolant Through | Yes |
| ANSI Code | DS20-D2858LX31-06 |
| Overall Length (Decimal) | 10.23 |
| Overall Length (Metric) | 259.9 |
| Functional Length (Decimal) | 7.84 |
| Point Length (Decimal) | 0.03 |
| Point Length (Metric) | 0.83 |
| Functional Length (Metric) | 199.07 |
| Body Length (Decimal) | 6.89 |
| Body Length (Metric) | 175.06 |
| Usable Length (Decimal) | 6.78 |
| Usable Length (Metric) | 172.28 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.5 |
| Usable Length Diameter Ratio | 6.029 |
| Torque | 1.4 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | United States |
| Base Item Number | 2108 |
| Body Length (Inch) | 6.89 |
| Max. Adjustment Limit (Decimal) | 0.08 |
| Max. Adjustment Limit (Metric) | 1.96 |
| Max. Rotational Speed | 5000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.205 LB |
| Height Packed Product Metric | 58 mm |
| Height Packed Product Imperial | 2.283 inch |
| ISO Code (packed) | DS20-D2858LX31-06 |
| Length Packed Product Metric | 274 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D2858LX31-06 |
| Length Packed Product Imperial | 10.787 inch |
| EAN Code | 7323223643544 |
