Sandvik Coromant
7548975

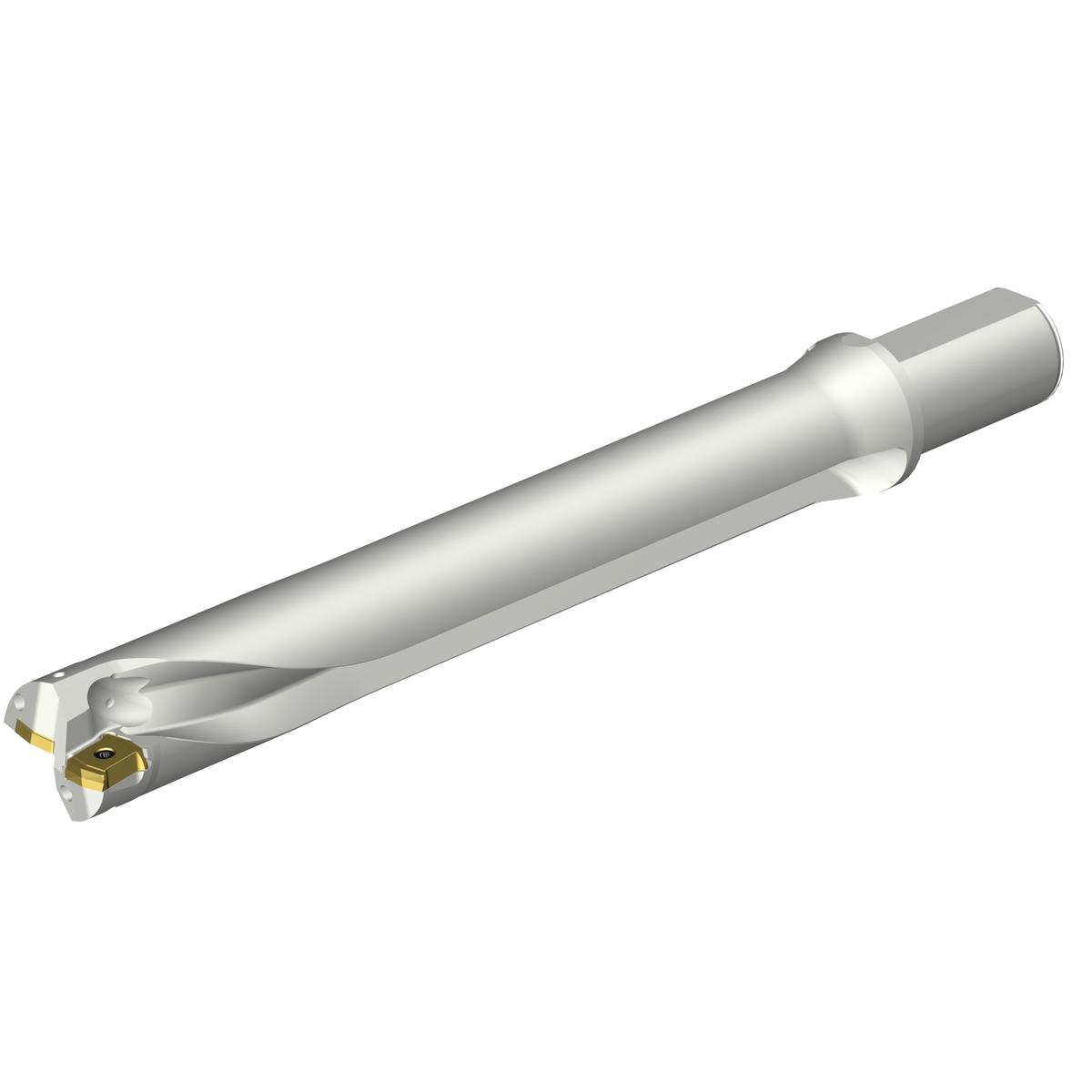

Sandvik Coromant 7548975
Specifications
| Cutting Diameter (Metric) | 42.85 |
|---|---|
| Shank Diameter (Metric) | 38.1 |
| Series | CoroDrill DS20 |
| Coating/Finish | TiAlN |
| Cutting Diameter (Inch) | 1.69 |
| Shank Diameter (Inch) | 1.5 |
| Depth x Diameter Ratio | 7 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Imperial |
| Cutting Diameter | 1.69 Inch |
| Shank Type | Cylindrical |
| Shank Diameter | 1.5 Inch |
| Coolant Through | Yes |
| ANSI Code | DS20-D4285LX38-07 |
| Material | Carbide |
| Coating Process Type | PVD |
| Overall Length (Decimal) | 15.88 |
| Overall Length (Metric) | 403.35 |
| Functional Length (Decimal) | 13.07 |
| Point Length (Decimal) | 0.05 |
| Point Length (Metric) | 1.28 |
| Functional Length (Metric) | 332.07 |
| Body Length (Decimal) | 11.98 |
| Body Length (Metric) | 304.17 |
| Usable Length (Decimal) | 11.86 |
| Usable Length (Metric) | 301.23 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.003937 |
| Achievable Hole Tolerance Lower (Metric) | -0.1 |
| Achievable Hole Tolerance Upper (Decimal) | 0.02 |
| Achievable Hole Tolerance Upper (Metric) | 0.5 |
| Usable Length Diameter Ratio | 7.03 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Body Length (Inch) | 11.98 |
| Max. Adjustment Limit (Decimal) | 0.13 |
| Max. Adjustment Limit (Metric) | 3.23 |
| Max. Rotational Speed | 2000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 6.393 LB |
| Height Packed Product Metric | 108 mm |
| Height Packed Product Imperial | 4.252 inch |
| ISO Code (packed) | DS20-D4285LX38-07 |
| Length Packed Product Metric | 423 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D4285LX38-07 |
| Length Packed Product Imperial | 16.654 inch |
| EAN Code | 7323223644473 |
| Substrate Type | Carbide |
