Sandvik Coromant
7549020

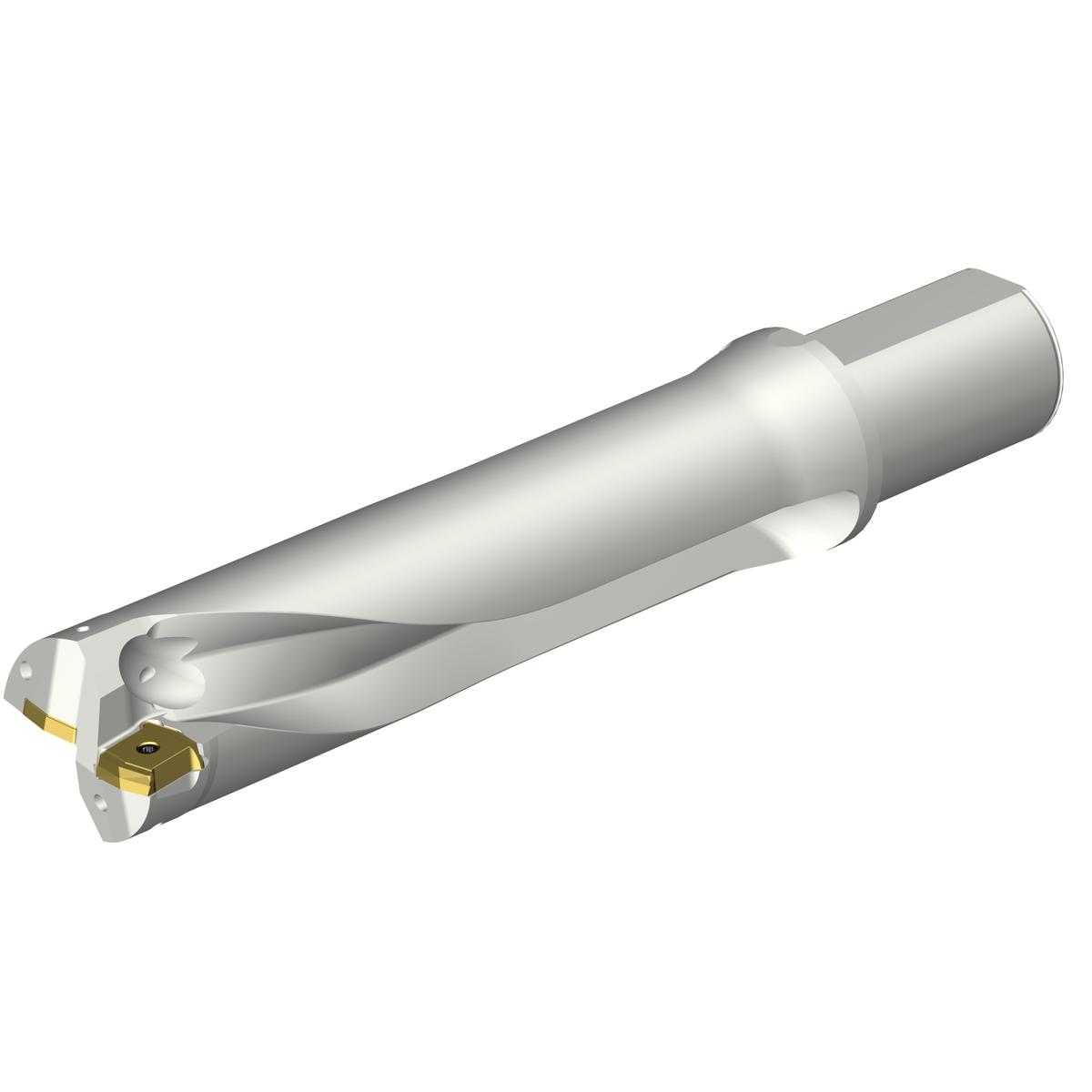

Sandvik Coromant 7549020
Specifications
| Cutting Diameter (Metric) | 57 |
|---|---|
| Shank Diameter (Metric) | 50 |
| Series | CoroDrill DS20 |
| Cutting Diameter (Inch) | 2.24 |
| Shank Diameter (Inch) | 1.97 |
| Depth x Diameter Ratio | 4 x D |
| Short Description | CoroDrill® DS20 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 57 mm |
| Shank Type | Cylindrical |
| Shank Diameter | 50 mm |
| Coolant Through | Yes |
| ANSI Code | DS20-D5700L50-04 |
| Overall Length (Decimal) | 13.74 |
| Overall Length (Metric) | 349 |
| Functional Length (Decimal) | 10.53 |
| Point Length (Decimal) | 0.06 |
| Point Length (Metric) | 1.59 |
| Functional Length (Metric) | 267.41 |
| Body Length (Decimal) | 9.17 |
| Body Length (Metric) | 233 |
| Usable Length (Decimal) | 9.04 |
| Usable Length (Metric) | 229.59 |
| Cutting Edge Angle | 81 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.35 |
| Usable Length Diameter Ratio | 4.028 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Body Length (Inch) | 9.17 |
| Max. Adjustment Limit (Decimal) | 0.12 |
| Max. Adjustment Limit (Metric) | 3.05 |
| Max. Rotational Speed | 6000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 8.724 LB |
| Height Packed Product Metric | 108 mm |
| Height Packed Product Imperial | 4.252 inch |
| ISO Code (packed) | DS20-D5700L50-04 |
| Length Packed Product Metric | 365 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-D5700L50-04 |
| Length Packed Product Imperial | 14.37 inch |
| EAN Code | 7323223644923 |
