Sandvik Coromant
7549901

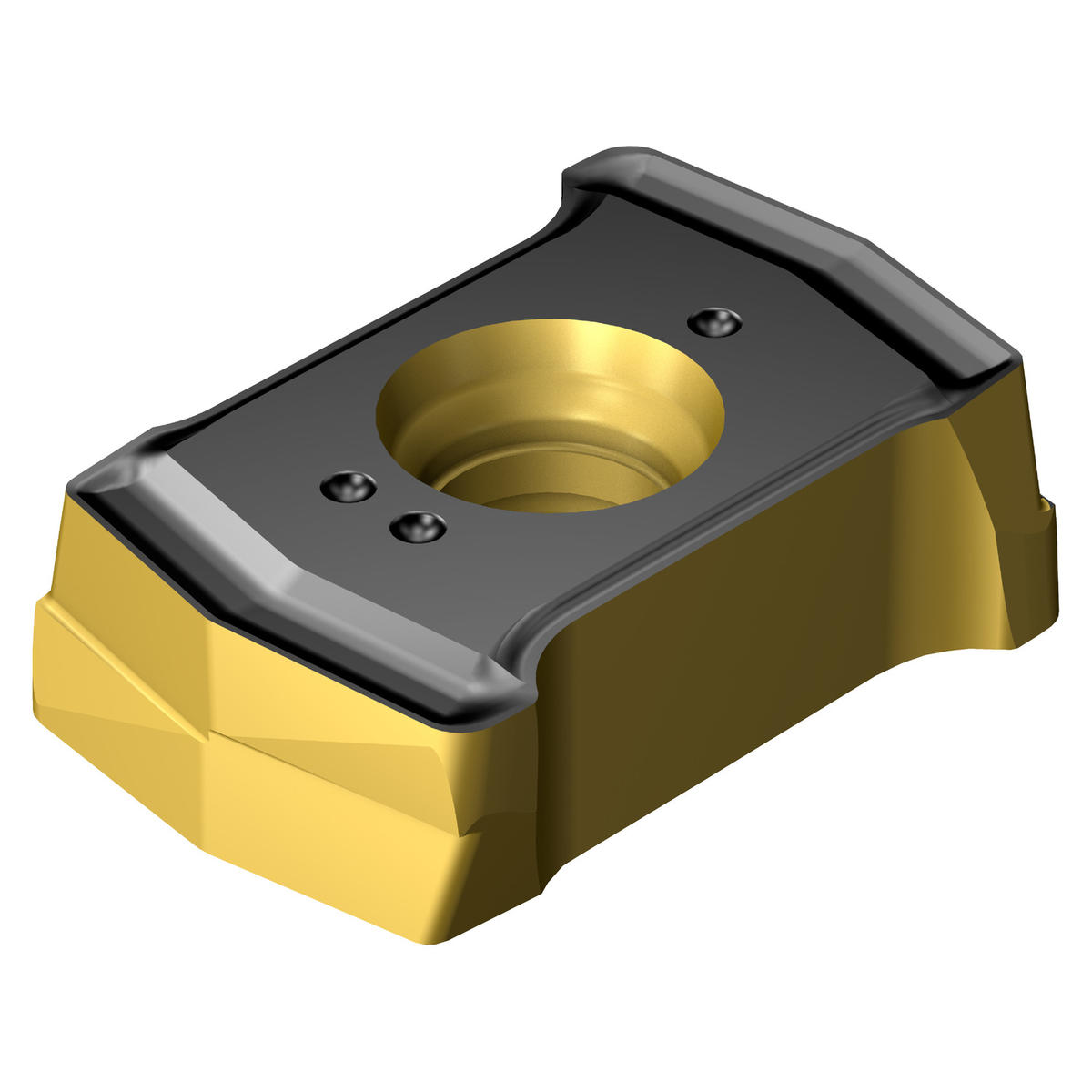

Sandvik Coromant 7549901
Specifications
| Corner Radius (Metric) | 0.5 |
|---|---|
| Type | Asymmetrical Point |
| Series | CoroDrill DS20 |
| Coating/Finish | TiCN+Al2O3+TiN |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.02 |
| Chip Breaker Type | L5W |
| Unit Of Measure | Metric |
| Style | DS20 |
| Thickness | 3.1 mm |
| Grade | 4334 |
| Thickness (Metric) | 3.1 |
| Short Description | CoroDrill® DS20 insert for drilling |
| Size | 2 |
| Corner Radius | 0.5 mm |
| Width (Decimal) | 0.24 |
| Width (Metric) | 6.1 |
| Thickness (Decimal) | 0.12 |
| ANSI Code | DS20-0205-P-L5W 4334 |
| ISO Code | DS20-0205-P-L5W 4334 |
| Coating Process Type | CVD |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 2.5 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Insert Usage Code | Peripheral |
| Application | Drilling, Indexable |
| ISO Material Classification | PM |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Width | 6.1 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DS20 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DS20-0205-P-L5W4334 |
| Insert Size | 02 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-0205-P-L5W 4334 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223649645 |
