Sandvik Coromant
7549934

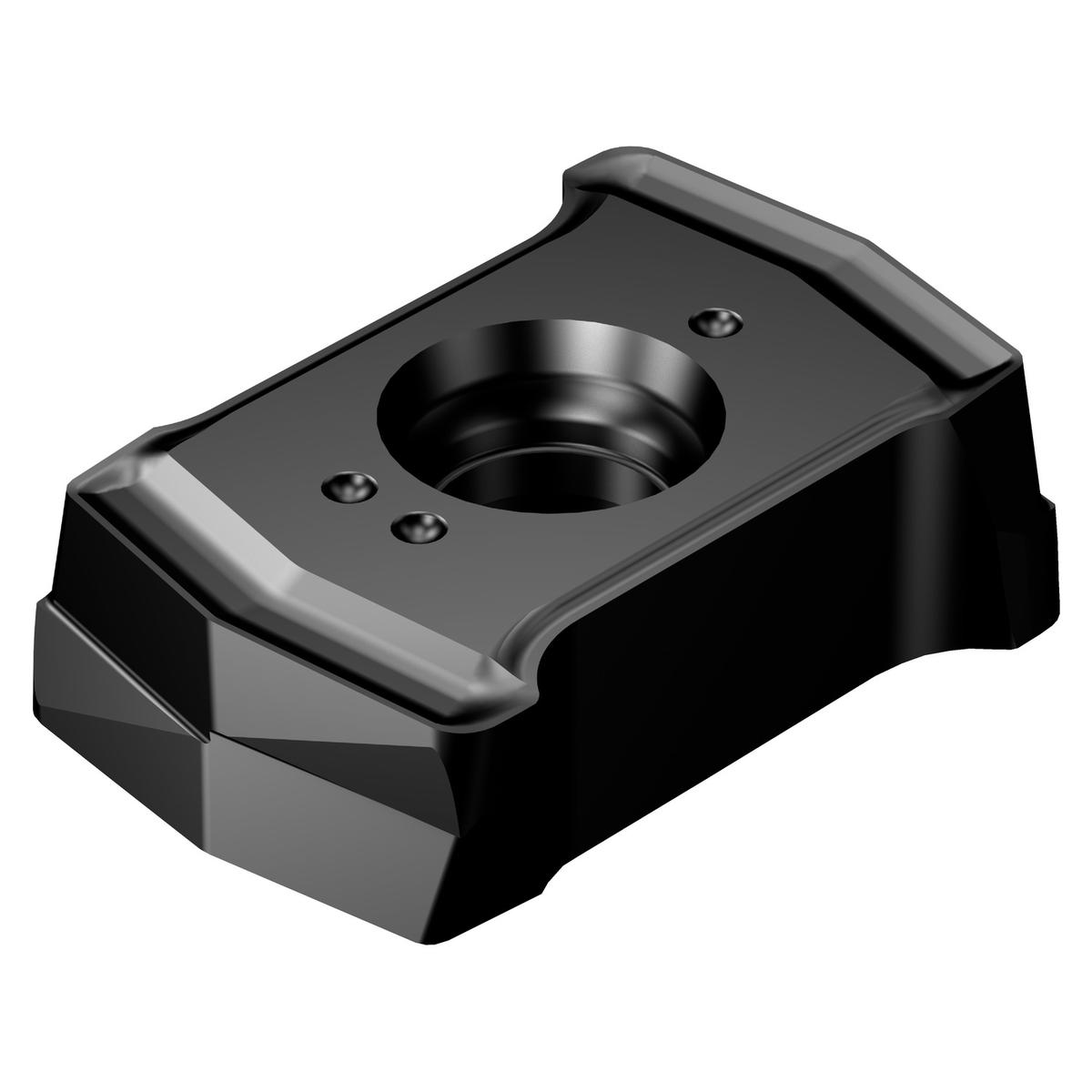

Sandvik Coromant 7549934
Specifications
| Corner Radius (Metric) | 0.7 |
|---|---|
| Type | Asymmetrical Point |
| Series | CoroDrill DS20 |
| Coating/Finish | TiCN+Al2O3 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.03 |
| Chip Breaker Type | L5W |
| Unit Of Measure | Metric |
| Style | DS20 |
| Thickness | 4.25 mm |
| Grade | 4324 |
| Thickness (Metric) | 4.25 |
| Short Description | CoroDrill® DS20 insert for drilling |
| Size | 4 |
| Corner Radius | 0.7 mm |
| Width (Decimal) | 0.37 |
| Width (Metric) | 9.29 |
| Thickness (Decimal) | 0.17 |
| ANSI Code | DS20-0407-P-L5W 4324 |
| ISO Code | DS20-0407-P-L5W 4324 |
| Coating Process Type | CVD |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 2.5 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Insert Usage Code | Peripheral |
| Application | Drilling, Indexable |
| ISO Material Classification | P |
| Country of Origin | Sweden |
| Base Item Number | 2108 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Width | 9.29 mm |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DS20 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DS20-0407-P-L5W4324 |
| Insert Size | 04 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DS20-0407-P-L5W 4324 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223649973 |
