Sandvik Coromant
7551427

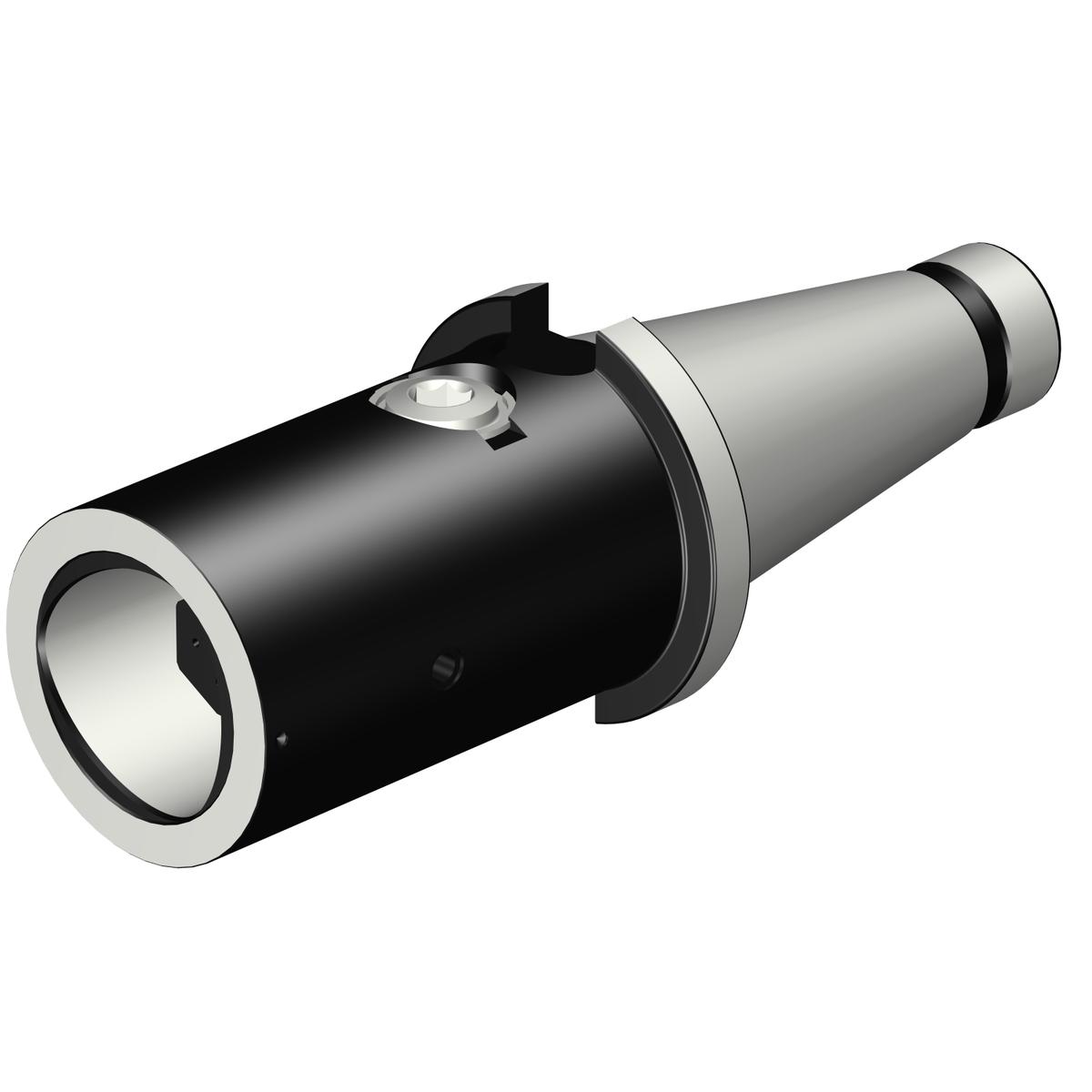

Sandvik Coromant 7551427
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |
| Short Description | DIN2080 to Coromant Capto adaptor with Quick change |
| Unit Of Measure | Metric |
| Overall Length | 140 mm |
| Overall Length (Decimal) | 5.51 |
| Overall Length (Metric) | 140 |
| ANSI Code | DN50-QC-C8-140 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 3.83 |
| Body Diameter (Metric) | 97.3 |
| Body Length (Decimal) | 4.91 |
| Body Length (Metric) | 124.8 |
| Functional Diameter (Decimal) | 2.75 |
| Functional Diameter (Metric) | 69.85 |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 95.883 |
| Torque (NM) | 130 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 4.91 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 13.836 LB |
