Sandvik Coromant
7559473

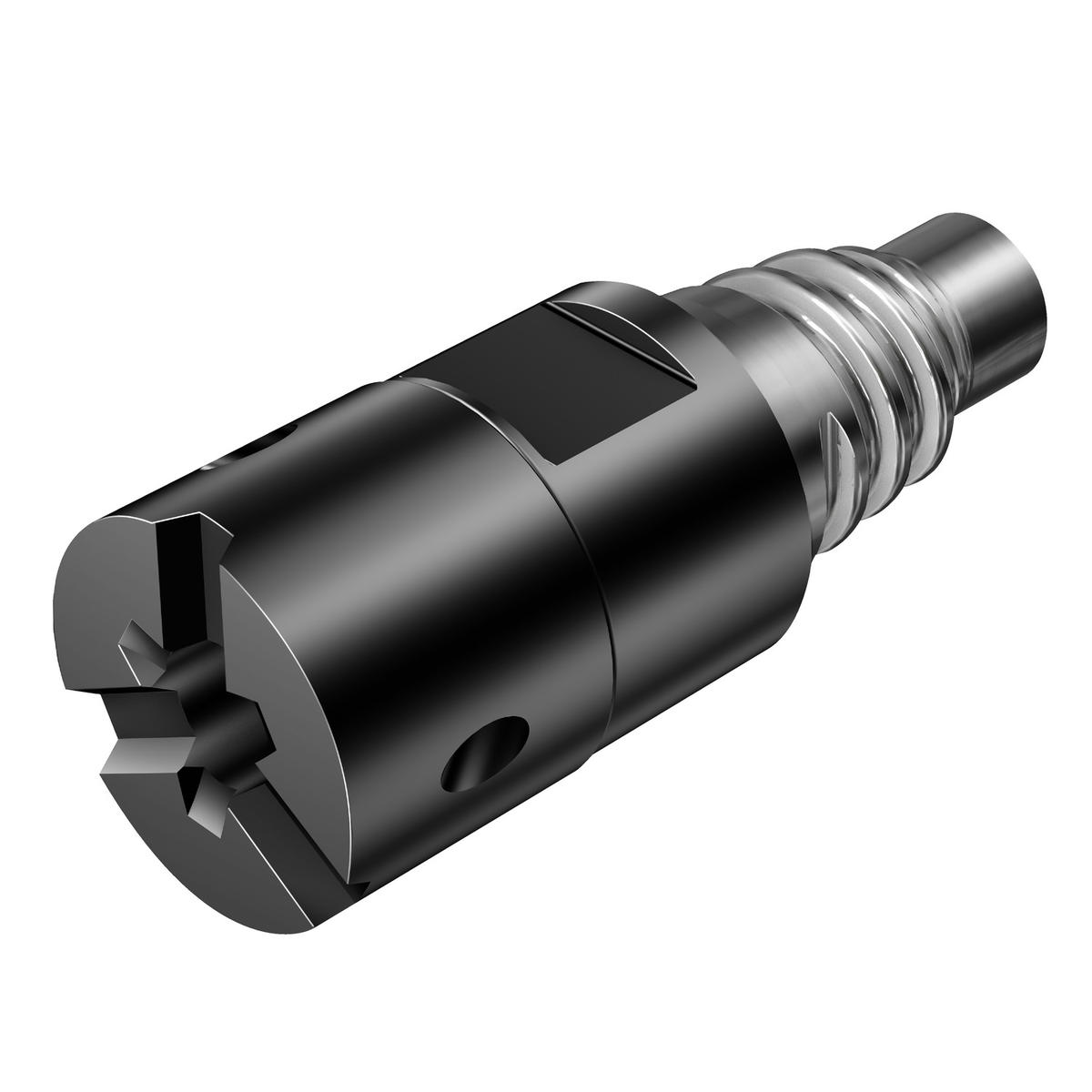

Sandvik Coromant 7559473
Specifications
| Shank Diameter (Metric) | 11.7 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 0.46 |
| Series | CoroMill 327 |
| Short Description | Coromant EH® to CoroMill® 327 adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 11.7 mm |
| Overall Length | 17 mm |
| Overall Length (Decimal) | 0.67 |
| Overall Length (Metric) | 17 |
| ANSI Code | 327-EH12-14-017 |
| Coolant Through | Yes |
| Connection Size | E12 |
| Body Diameter (Decimal) | 0.56 |
| Body Diameter (Metric) | 14.3 |
| Body Length (Decimal) | 0.67 |
| Body Length (Metric) | 17 |
| Functional Diameter (Decimal) | 0.36 |
| Functional Diameter (Metric) | 9.15 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 4.794 |
| Torque (NM) | 6.5 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 3: axial inclined exit |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Turkey |
| Base Item Number | 1018 |
| Body Length (Inch) | 0.67 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 40000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.02 LB |
