Sandvik Coromant
7564432

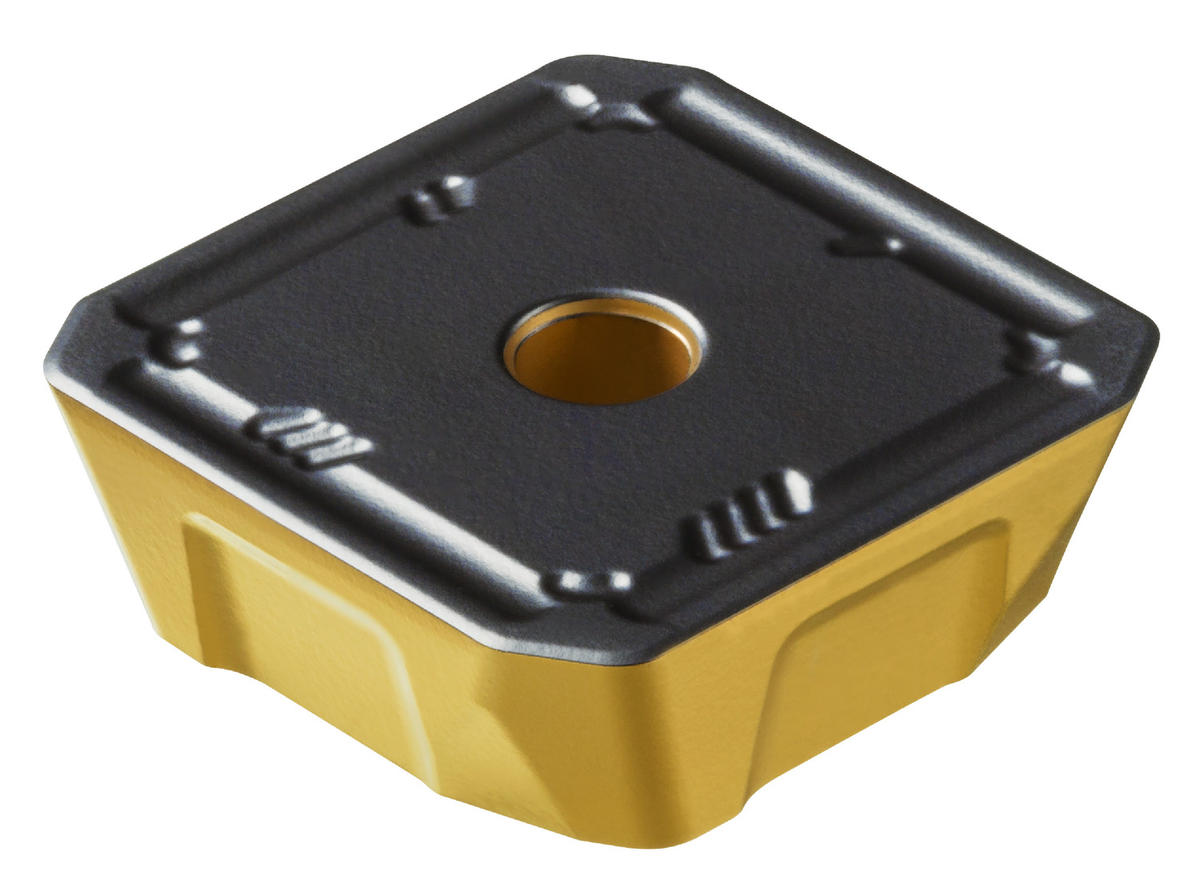

Sandvik Coromant 7564432
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 6.35 |
| Thickness (Inch) | 0.25 |
| Short Description | CoroMill® 360 insert for milling |
| Shape | Square |
| Style | 360R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 360 |
| Size | 1906 |
| Grade | 4330 |
| Inscribed Circle Diameter | 18.94 mm |
| Thickness | 6.35 mm |
| Chip Breaker Type | PH |
| Length (Decimal) | 0.59 |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 18.94 |
| ANSI Code | 360R-19 06M-PH 4330 |
| ISO Code | 360R-19 06M-PH 4330 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.6 |
| Fixing Hole Diameter (Decimal) | 0.15 |
| Fixing Hole Diameter (Metric) | 3.8 |
| Coating Process Type | CVD |
| Operation Type | Heavy |
| Mounting Style | Clamp |
| Wiper Edge Length (Decimal) | 0.09 |
| Wiper Edge Length (Metric) | 2.2 |
| Major Cutting Edge Angle | 60 degrees |
| Rake Angle | 0 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Radius (Decimal) | 7.87 |
| Wiper Edge Radius (Metric) | 200 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Base Item Number | 2010 |
| Insert Size | 1906 |
| Length | 15 mm |
| Max. Depth Of Cut (Decimal) | 0.51 |
| Max. Depth Of Cut (Metric) | 13 |
| Maximum Depth Of Cut (Inch) | 0.51 |
| Maximum Depth Of Cut (Metric) | 13 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.058 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 360R |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 360R-1906M-PH4330 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 360R-19 06M-PH 4330 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323223718655 |
