Sandvik Coromant
7564437

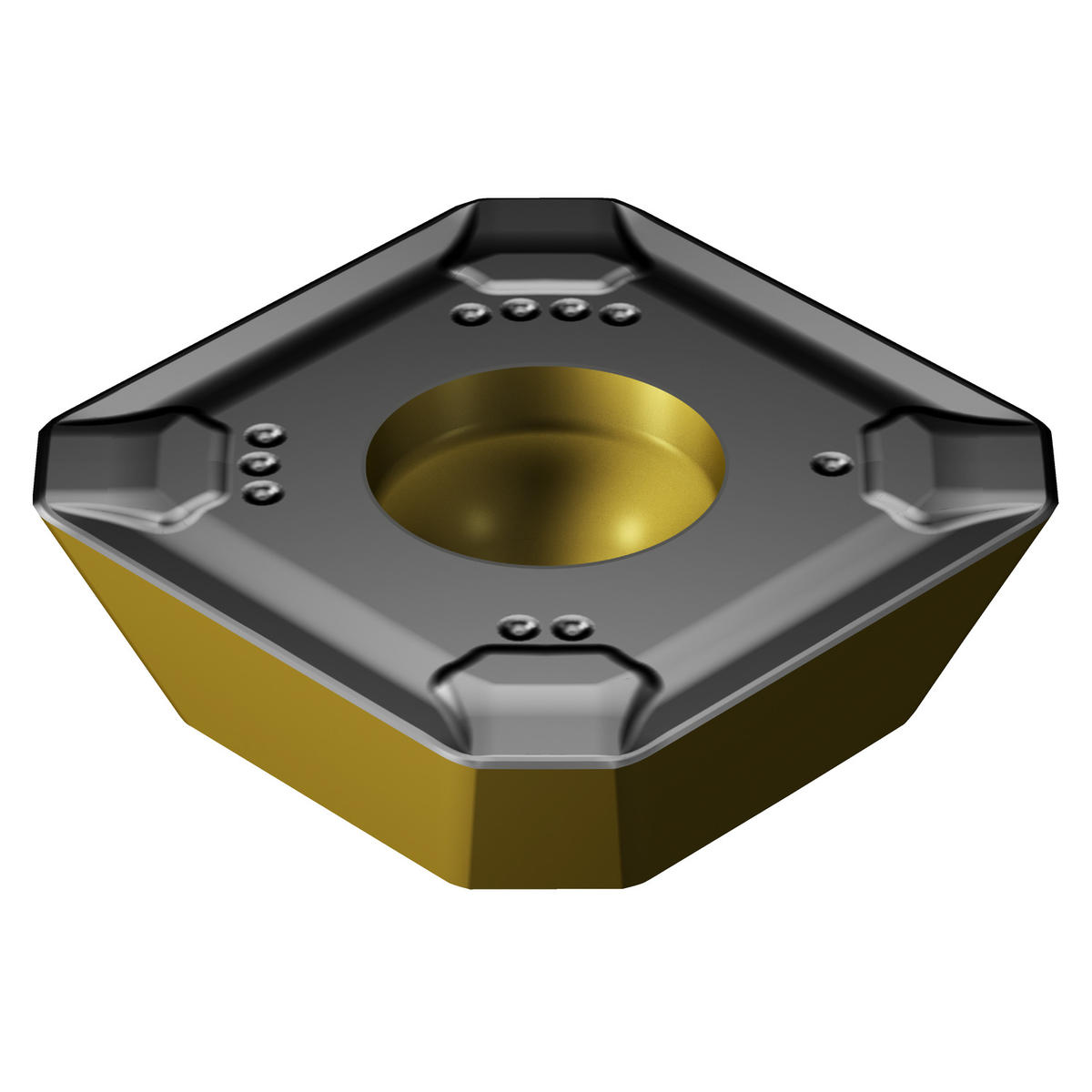

Sandvik Coromant 7564437
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 3.97 |
| Thickness (Inch) | 0.16 |
| Short Description | CoroMill® 245 insert for milling |
| Shape | Square |
| Style | R245 |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 245 |
| Size | 12T3 |
| Grade | 4330 |
| Inscribed Circle Diameter | 13.4 mm |
| Thickness | 3.97 mm |
| Chip Breaker Type | PH |
| Length (Decimal) | 0.39 |
| Inscribed Circle Diameter (Decimal) | 0.53 |
| Inscribed Circle Diameter (Metric) | 13.4 |
| ANSI Code | R245-12 T3 M-PH 4330 |
| ISO Code | R245-12 T3 M-PH 4330 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.5 |
| Fixing Hole Diameter (Decimal) | 0.16 |
| Fixing Hole Diameter (Metric) | 4.1 |
| Coating Process Type | CVD |
| Operation Type | Heavy |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.08 |
| Wiper Edge Length (Metric) | 2 |
| Major Cutting Edge Angle | 45 degrees |
| Rake Angle | 5 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Base Item Number | 1001 |
| Insert Size | 12T3 |
| Length | 10 mm |
| Max. Depth Of Cut (Decimal) | 0.26 |
| Max. Depth Of Cut (Metric) | 6.5 |
| Maximum Depth Of Cut (Inch) | 0.26 |
| Maximum Depth Of Cut (Metric) | 6.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.016 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | R245 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R245-12T3M-PH4330 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R245-12 T3 M-PH 4330 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223718709 |
