Sandvik Coromant
7564483

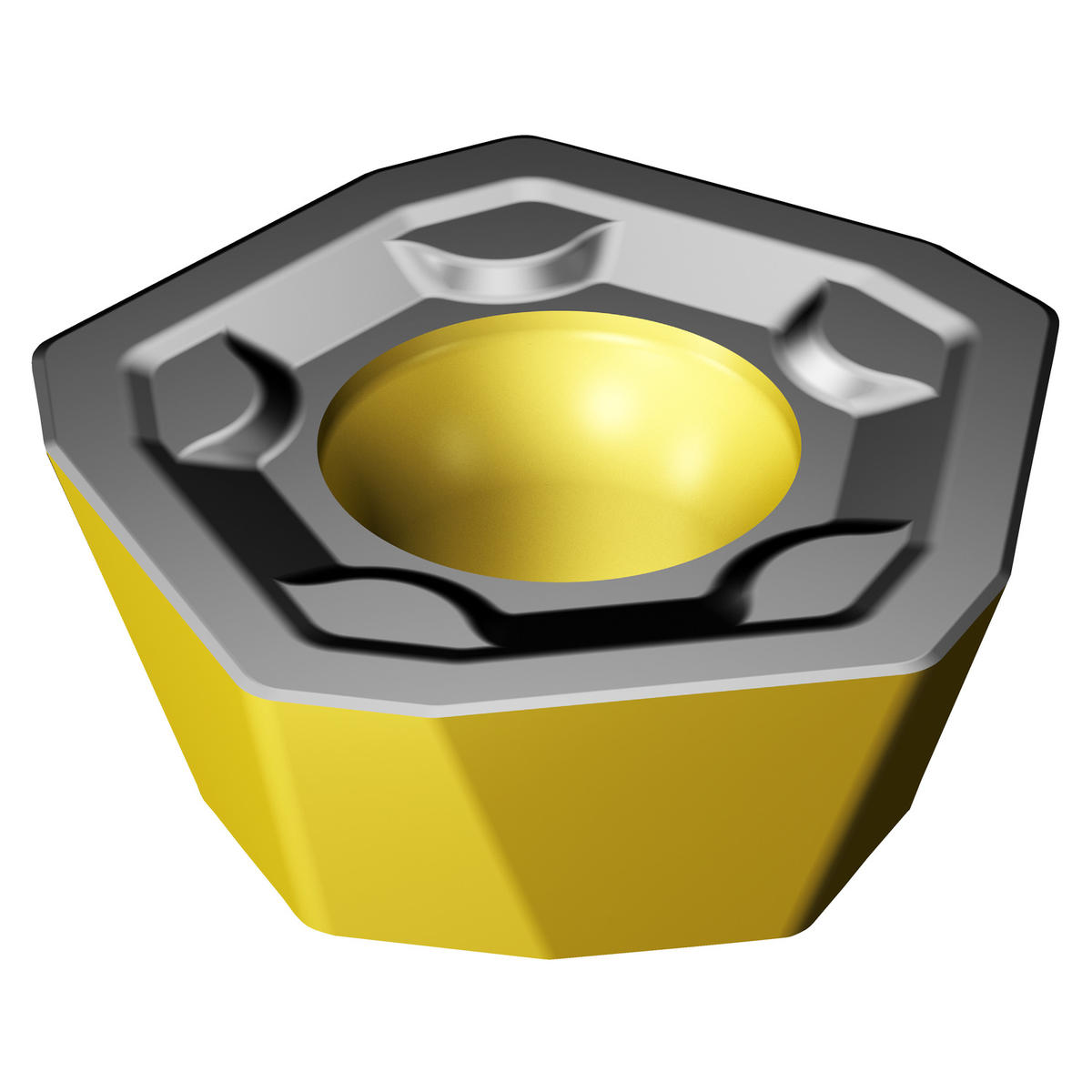

Sandvik Coromant 7564483
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 4.5 |
| Corner Radius (Inch) | 0.18 |
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 5.47 |
| Thickness (Inch) | 0.22 |
| Short Description | CoroMill® 419 insert for milling |
| Shape | Pentagon |
| Style | 419R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 419 |
| Size | 1405 |
| Grade | 4330 |
| Inscribed Circle Diameter | 13.5 mm |
| Thickness | 5.47 mm |
| Chip Breaker Type | PH |
| Length (Decimal) | 0.35 |
| Inscribed Circle Diameter (Decimal) | 0.53 |
| Inscribed Circle Diameter (Metric) | 13.5 |
| ANSI Code | 419R-1405M-PH 4330 |
| ISO Code | 419R-1405M-PH 4330 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.03 |
| Coner Radius (Metric) | 0.8 |
| Fixing Hole Diameter (Decimal) | 0.22 |
| Fixing Hole Diameter (Metric) | 5.5 |
| Coating Process Type | CVD |
| Operation Type | Heavy |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.08 |
| Wiper Edge Length (Metric) | 2 |
| Major Cutting Edge Angle | 19 degrees |
| Rake Angle | -10 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 5 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Base Item Number | 2059 |
| Insert Size | 1405 |
| Length | 9 mm |
| Max. Depth Of Cut (Decimal) | 0.08 |
| Max. Depth Of Cut (Metric) | 2 |
| Maximum Depth Of Cut (Inch) | 0.08 |
| Maximum Depth Of Cut (Metric) | 2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 419R |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 419R-1405M-PH4330 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 419R-1405M-PH 4330 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323223719164 |
