Sandvik Coromant
7564548

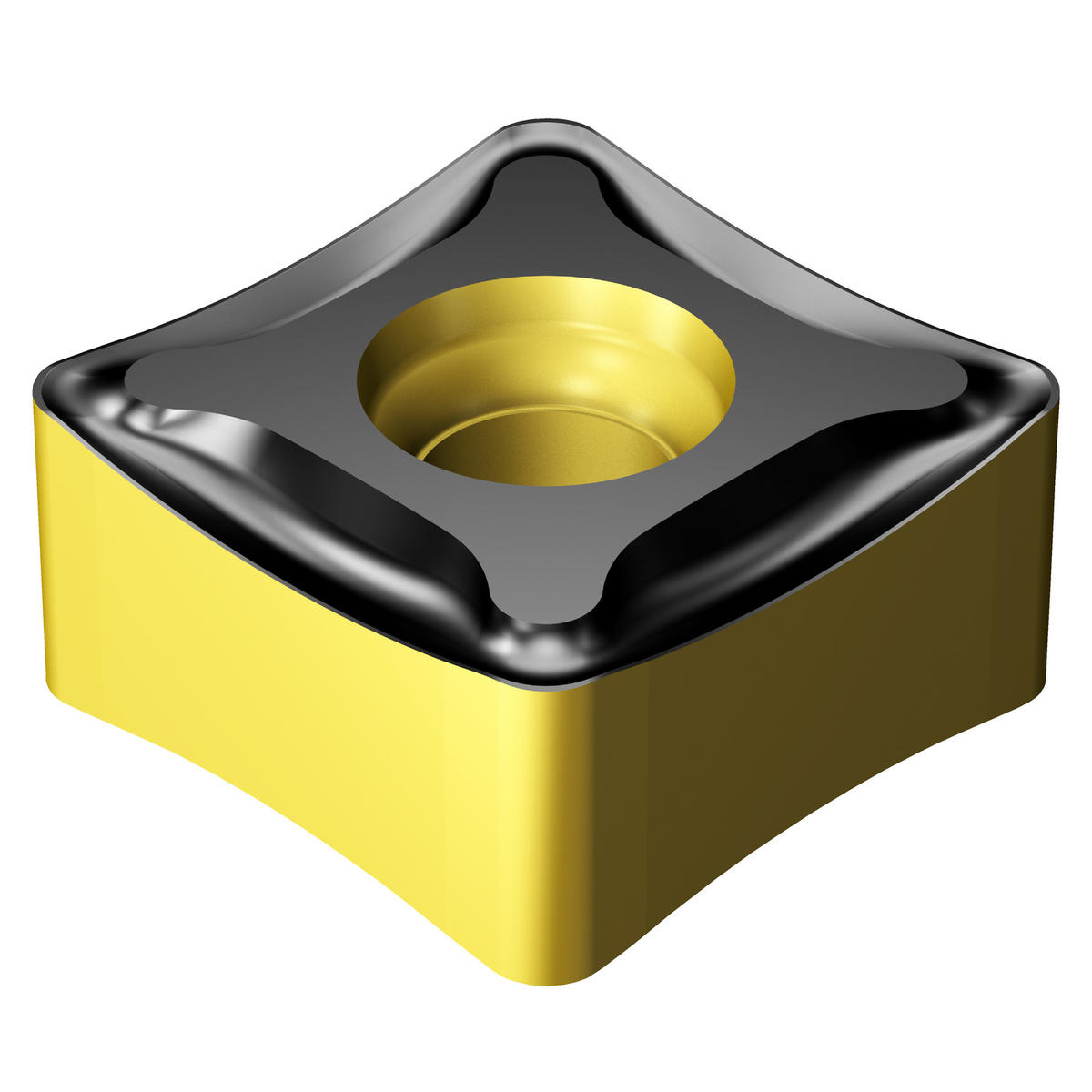

Sandvik Coromant 7564548
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 2 |
| Corner Radius (Inch) | 0.08 |
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 6.55 |
| Thickness (Inch) | 0.26 |
| Short Description | CoroMill® 331 insert for side and facemilling |
| Shape | Square |
| Style | N331 |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 331 |
| Size | 13 |
| Grade | 4330 |
| Inscribed Circle Diameter | 13.4 mm |
| Thickness | 6.55 mm |
| Chip Breaker Type | PM |
| Length (Decimal) | 0.4 |
| Inscribed Circle Diameter (Decimal) | 0.53 |
| Inscribed Circle Diameter (Metric) | 13.4 |
| ANSI Code | N331.1D-136520E-PM 4330 |
| ISO Code | N331.1D-136520E-PM 4330 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.35 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.05 |
| Wiper Edge Length (Metric) | 1.2 |
| Major Cutting Edge Angle | 88 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Length (Metric) | 10.2 |
| Base Item Number | 1004 |
| Insert Size | 13 |
| Length | 10.2 mm |
| Max. Depth Of Cut (Decimal) | 0.4 |
| Max. Depth Of Cut (Metric) | 10.1 |
| Maximum Depth Of Cut (Inch) | 0.4 |
| Maximum Depth Of Cut (Metric) | 10.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.029 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N331 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N331.1D-136520E-PM4330 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N331.1D-136520E-PM 4330 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223719812 |
