Sandvik Coromant
7564578
Sandvik Coromant 7564578
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 3.18 |
| Thickness (Inch) | 0.13 |

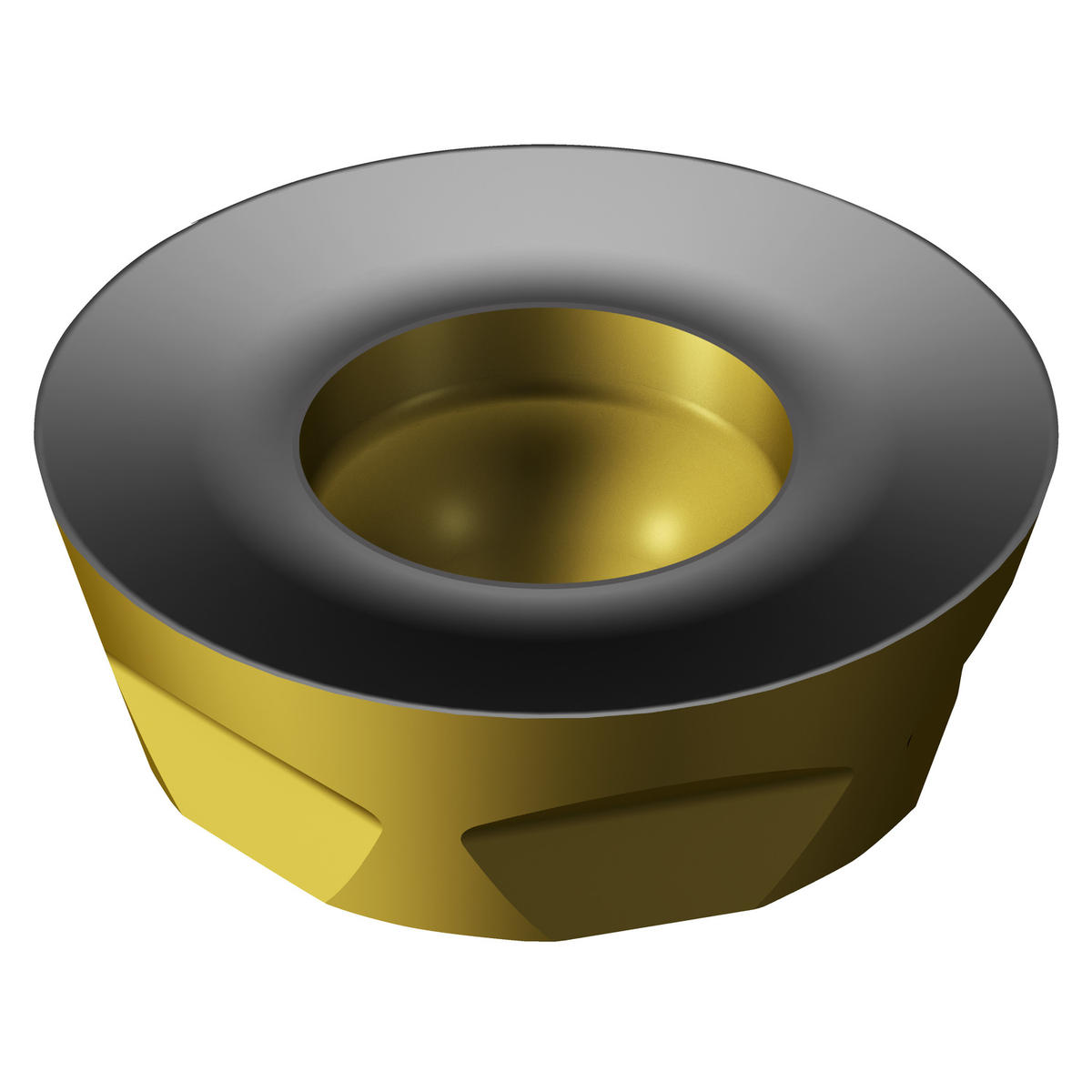

| Short Description | CoroMill® 300 insert for milling |
| Shape | Round |
| Style | R300 |
| Unit Of Measure | Metric |
| Country of Origin | United States |
| Series | CoroMill 300 |
| Size | 1032 |
| Grade | 4330 |
| Inscribed Circle Diameter | 10 mm |
| Thickness | 3.18 mm |
| Chip Breaker Type | PM |
| Inscribed Circle Diameter (Decimal) | 0.39 |
| Inscribed Circle Diameter (Metric) | 10 |
| ANSI Code | R300-1032M-PM 4330 |
| ISO Code | R300-1032M-PM 4330 |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.2 |
| Coner Radius (Metric) | 5 |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Application | Milling, General |
| ISO Material Classification | PK |
| Base Item Number | 1008 |
| Insert Size | 1032 |
| Max. Depth Of Cut (Decimal) | 0.1 |
| Max. Depth Of Cut (Metric) | 2.5 |
| Maximum Depth Of Cut (Inch) | 0.1 |
| Maximum Depth Of Cut (Metric) | 2.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | R300 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R300-1032M-PM4330 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R300-1032M-PM 4330 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 7323223720115 |
